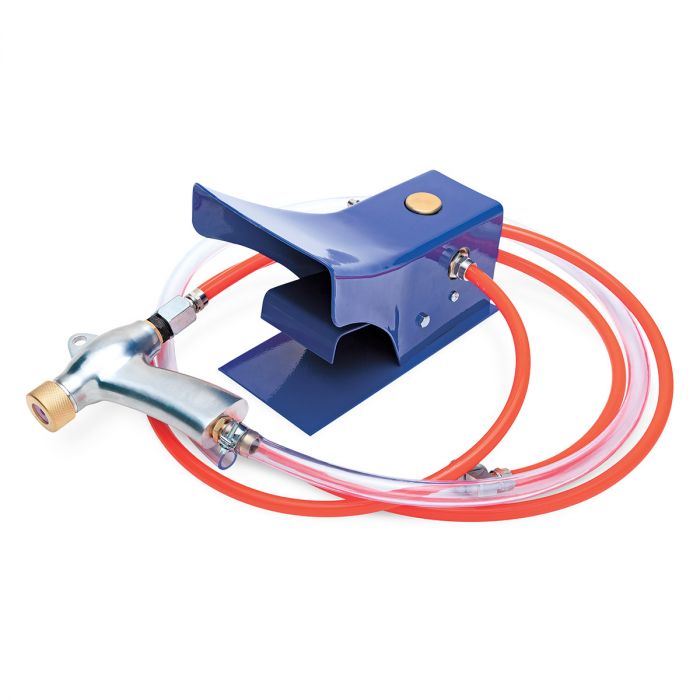

Save time and energy while doing high-quality abrasive blasting by adding the Eastwood Blast Cabinet Foot Pedal and Gun kit to your cabinet. This foot-actuated sandblasting cabinet gun is designed to replace the standard trigger-operated blast gun. The foot pedal eliminates hand fatigue and adds more precise control to the blast media flow. By using this kit, you can blast for longer periods of time without having to take breaks due to hand fatigue, meaning each project will take less time overall.
Eliminates hand fatigue
Gives more precise media flow
Replaces trigger operated guns
Includes High-Volume Blast Gun
Our foot pedal blast cabinet gun works with virtually any abrasive blast cabinet and is easy to install. Simply remove the original gun and hoses, replace the old hardware with the included fittings, and attach the new hoses and tools. Most cabinets that do not have a foot pedal initially are compatible with this pedal, and by ordering this kit, you can retrofit those cabinets for the same precision performance. Eastwood has a 100% customer satisfaction guarantee on all abrasive blasting supplies that are designed for DIYers. Watch our product video below to learn more.
Warranty
1 Year
Specifications
Minimum air requirement:
7.1 CFM @ 90 PSI
Optimum operation requirements:
10.25 CFM @ 115PSI
Maximum operating pressure:
120 PSI
Nozzle:
6mm
In the Box
Contents
(1) High-Volume Blast Gun with Air Supply and Media Pick-Up Hoses
(1) Foot Pedal Control with Air Supply Hose and Bulkhead Fitting
WARNING: Blasting emits abrasive under pressure. Adequate respiratory eye and body protection must be worn during use. Inhalation of silica based media particles have been known to cause cancer and other deadly diseases, and must be avoided. Wear NIOSH approved respiratory protection while operating this equipment.
Accessories
Reviews
Rated 5 out of
5 by
Mike from
blast nozzel and foot pedelgreat system But need a better dryer still clogged due to water in the air
Date published: 2023-10-14
Rated 5 out of
5 by
Matt from
Absolutely a game changerThis is a Must Have.. I do a lot of sandblasting , my hand would cramp up while using the trigger, I got the pedal and now I can go for hours
Date published: 2023-09-16
Rated 5 out of
5 by
Butcher from
Eastwood Blast Cabinet Foot Pedal and GunThis thing is great and my hands definitely appreciate it. I'm new to blasting and I would just pass on the fact that if you don't have a very powerful compressor, make sure to use fine media.
Date published: 2023-02-21
Rated 5 out of
5 by
robbys_pipe_repair from
Harbor freight blast cabinet upgradeI bought this because my hands would cramp after blasting for a while, but it’s so much more than just a pedal addition! The gun works so much better than the stock harbor freight one. I can clean metal in 1/4 of the time. Great buy!
Date published: 2023-01-10
Rated 5 out of
5 by
Anonymous from
Sand Blasting gunI used the gun on my existing cabnet and it is a direct replacement. Works Great
Date published: 2022-10-19
Rated 5 out of
5 by
Chris from
Definite improvement to your sandblasting cabinetGreat improvement to my blast cabinet. Makes it easier to sandblast for longer periods. Wish I had installed this sooner.
Date published: 2022-05-19
Rated 5 out of
5 by
Steve D from
Eastwood Foot Pedal and Blast gun kit.Love this upgrade. This cut down on my blasting time and hand fatigue. If you’re still holding a trigger gun, get this! You won’t be sorry!
Date published: 2022-05-04
Rated 5 out of
5 by
Jay13042 from
Just buy it!!Wow what a difference this gun is vs. the HF gun! Something that would take me 10-20 minutes to blast now takes about 3-5 minutes. If you’re looking to really wake up your HF blast cabinet then you 100% NEED to buy this, like yesterday! Oh yeah, and a part I could barely put a dime size blast in the paint, this gun stripped it like it wasn’t even there. The amount of media it throws is unreal. No joke.
Is there a part number for a replacement #6 nozzle available? Thx
Asked by: Norm
I believe you are looking for 21135, sold in a 2pc set.
Answered by: Nick BC
Date published: 2023-02-23
I've upgraded my air fittings to high flow, what are the internal passageway sizes on the foot pedal? i'd like to find something that will not be a bottleneck
Asked by: wihunterguy
This is a variable position valve foot pedal - it is designed to be restrictive, but when you are "pedal to the metal" it will not restrict your system. The internal passageway is quite generous in size.
Answered by: Nick BC
Date published: 2023-05-21
What size is the nozzle that comes with it? Can I get a smaller nozzle?
Asked by: Craig
This comes with a 6mm nozzle. At this time 6mm is the only size nozzle we offer for this foot pedal system.
Answered by: Kelly H
Date published: 2023-12-11
What size of media is recommended for this gun/nozzle?
Asked by: Kevin
This will work with 60 grit or finer media.
Answered by: ZachC
Date published: 2022-01-27
Is the gun itself adjustable?
Asked by: Arts Bug House
Air pressure cannot be regulated though the gun only from the foot pedal.
Answered by: John S
Date published: 2022-01-25
Does the foot pedal have a lock on position or do I have to depress it the whole time Im blasting?
Asked by: maxpower
This does not have a lock and would need to be depressed to be run.
Answered by: Kelly H
Date published: 2021-10-26
Will this work with a bottom fed media metering valve rather than the tube dropped into the sand method? I think it should work since both are variations of a siphon feed system and not pressure fed.
Asked by: Rust Collector
Works great just keep media clean. See pics in my review to see it installed.
