Fast Pipe 1 in 235 foot Kit is rated 5.0 out of 5 by 1.
Rated 5 out of 5 by from WOW this is an awesome, industrial product I got this kit a while back and just put it in this wekeend, took me all of a couple hours to put in a professional grade air line system that really works great. NO LEAKS whatsoever, and i have air anywhere i want it. this is truly the way to go!
Date published: 2016-10-17
  • y_2017, m_8, d_18, h_1
  • bvseo_bulk, prod_bvrr, vn_bulk_1.0.0-hotfix-1
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_1
  • loc_en_US, sid_14978, prod, sort_[SortEntry(order=RELEVANCE, direction=DESCENDING)]
  • clientName_eastwood

How much air pressure is the tubing and fittings rated for?

Asked by: darwin59
This line is rated for 175 at 70F and 140 at 140F.
Answered by: S Church
Date published: 2016-11-14

I see you offer many of the fitting on the website but do you sell just the tubing to be able to add on at a later date?

Asked by: crazyjason12
Unfortunately we do not have the 1" Fast Pipe tubing available by itself, just in the 235' and 100' kits. We do have the 3/4" Max Line tubing available by itself, which you could use for your drops or in other areas for expansion. http://www.eastwood.com/3-4-inch-compressed-air-tubing-100-ft.html
Answered by: MikeL
Date published: 2014-12-11
  • y_2017, m_8, d_17, h_21CST
  • bvseo_bulk, prod_bvqa, vn_bulk_1.0.0-hotfix-1
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_2
  • loc_en_US, sid_14978, prod, sort_[SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood

Fast Pipe 1 in 235 foot Kit

Item #14978 Brand: Rapid Air

Fast Pipe 1 Inch 235 foot Kit
Only $999.99
This item ships directly from the manufacturer and is not available for store pickup.



Details

The 235ft FastPipe Master Kit is here to help you start your FastPipe compressed air system. FastPipe is made with lightweight aluminum and compression style fittings that can be installed in half the time of regular air systems. You get fast flowing air with the smooth inner walls, no leaks with the o ring seals and no rust or corrosion means superior air quality. The FastPipe Master Kit can be used alone, to expand an existing compressed air system or added to later on.

More info...

About Fast Pipe 1 in 235 foot Kit

The 235ft FastPipe Master Kit is here to help you start your FastPipe compressed air system. FastPipe is made with lightweight aluminum and compression style fittings that can be installed in half the time of regular air systems. You get fast flowing air with the smooth inner walls, no leaks with the o ring seals and no rust or corrosion means superior air quality. The FastPipe Master Kit can be used alone, to expand an existing compressed air system or added to later on.


Contents

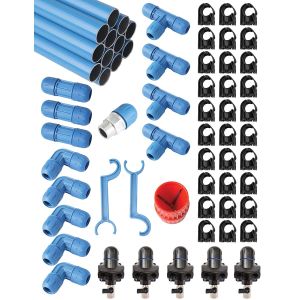

The 235ft FastPipe Master Kit includes: 12 lengths of 1 inch FastPipe (19ft 8in. each), 3 packs of pipe clips (30 total), 3 unions, 5 elbows, 4 tees, 1 threaded nipple FastPipe x 3/4 inch male NPT, 5 wall outlets with (2) 1/2 inch female NPT outlet ports, 1 tool set with 2 spanner wrenches and Deburr tool. Air compressor, filter regulator and 3/4 inch jumper hose required but not included.


Accessories

20473 2 stage desiccant system
20474 4 stage desiccant system
20472 2 stage coalescing filter regulator
70449 Hose reel
70492 50' air hose


Safety

Always follow manufacturers installation instructions. Improper installation or use could cause personal and property damage.


Warranty

Made in USA. Items that ship via Truck are non-refundable or returnable. Repair parts will be provided during warranty period.
