Gator Guard II Truck Bed Liner Kit is rated 3.125 out of 5 by 8.
Rated 4 out of 5 by from great stuff, but needed more First off, the suggested two kits for larger trucks doesn't really work. I bought two kits for my full-size longbed, I was able to get two thirds done and ran out. I going to try to finish with just one more, but its going to be close. I sprayed to the economy sprayer sold here.. Worked great at 75psi. Everything cleans up well with acetone. The A part of this epoxy is a thick sludge. Tis makes mixing an interesting and potentialy messy affair. Be prepared for that. Other than that, 2/3rds of my truck bed look beautiful.
Date published: 2010-04-19
Rated 2 out of 5 by from Not recommended I used this product on two projects and after two years it pulled away from the surface and cracked in many places. Also became extremely brittle chipping away if struck. There must be a better product for DIY out there. To compare - I just bought an old truck with Rhino bed liner, I don't know how old it is but is be there a long long time and still has a flexible rubbery texture.
Date published: 2013-09-02
Rated 3 out of 5 by from Not a bad product I sprayed the liner using a shutz gun, went pretty well other than it starts to thicken up pretty fast so be prepared to move once you get it mixed. Also found that a gun with a more narrow tube going into the cab worked a lot better as there is more vaccume, the gun I had originally used had a bit larger of a tube and it would stop spraying product about half way through the can, switched guns and it worked awesome, it was very easy and fast when i switched guns! All in all I am pretty happy with this product. And mixing it can get pretty messy so your best off to wear gloves!
Date published: 2016-05-19
Rated 4 out of 5 by from Good product, a little difficult to apply. I bought some Gator Guard and used it inside the box on my El Camino. I am generally happy with it but there are a few things to keep in mind if you are considering it for your vehicle. This is a basic, lower cost product so you should not over expect too much. It does what it is supposed to do so that’s what is important. I am happy with the coverage, one pack was enough to do the bed and inside 4 walls of my El Camino with about a third left over, and I did lay it on heavy. After it dried, which in the heavier areas took about 2-3 days; it had a glossy finish with many very sharp grit pieces apparent. The glossy black finish is not too cool because it really shows the grit bumps and big clumps in a more pronounced manner than one would prefer. It appears to have a nice tough bond to the vehicle’s sheet metal though. The really important thing about applying this product is to take the mixing instructions very serious. The one can has thick black material in it that is reminiscent of roofing tar. The other can contains fluid of a paint thinner type of look and smell. If this combination is not mixed thoroughly, there will be clumps of thick black goo that will clog your gun tip or leave ugly clods if applied by hand. I tried the paint roller method. This did not work out well. The knap of the roller allowed big globby clods to be applied, so I opted to apply product in bulk with the roller, then spread the product around with a brush for even application and clod break up. There are brush marks in some places, and if I pressed too hard, some gray streaks were left. The best way to apply Gator Guard would be by sprayer, but only after mixing the 2 cans thoroughly!
Date published: 2013-01-17
Rated 3 out of 5 by from paint on coating This product applies at the thicknessa little greater than that of paint, this is not a bed liner product. The protection of 1/8" spray in bed liner is not provided, only scratch resistance. A second coat is not recommended , so the first coat thickness is what you get. The price I paid at Eastwood is about $10 more per can than elsewhere. I would not buy this product again, many other products available for the intended use.
Date published: 2012-04-11
Rated 3 out of 5 by from Disapointed with appearance I purchased the Gator Guard to use on my pickup toolbox rather than have it coated with Rhino Lining like the rest of the bed. Unfortunately that turned out to be a mistake. The surface turned out to be very rough with some areas even "sharp" to the touch. At first I thought that I had applied it incorrectly but that was not the case. I mixed and applied it according to the directions. Although the price iand value are fair, I cannot recommend this product.
Date published: 2010-07-27
Rated 1 out of 5 by from Works for a few months I bought this product two times for two different trucks. Used both white and black. Over the course of 6 months it starts to peel and crack. I still have one box left, every time it cracks I peel it off and re-apply. Not long term fix.
Date published: 2016-02-13
Rated 5 out of 5 by from Very good So far am very pleased with durability and looks. I applied it to the floor of my '52 Willys Wagon. I don't know if I didn't apply it thick enough because one kit did the whole back floor.
Date published: 2010-08-14
  • 2016-06-25T09:46CST
  • bvseo_cps, prod_bvrr, vn_cps_3.2.1
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_8
  • loc_en_US, sid_10129Z, PRD, sort_relevancy
  • clientName_eastwood

Where can I buy the shutz spray gun for this item and what is the price of it?

Asked by: Woody52
You will be able to spray this with anyone of our undercoating guns.
Answered by: S Church
Date published: 2016-06-01

Can I mix the black with the white? Are they compatible? I want to make gray.

Asked by: Kvette81
They can be mixed together since they are the same product with different tints. We cannot guarantee the color outcome though.
Answered by: S Church
Date published: 2016-04-06

Can this product be sprayed over lizard skin heat and sound coatings.

Asked by: seymore1
We only recommend putting this product over top of bare metal or catalyzed coating for maximum adhesion and durability.
Answered by: S Church
Date published: 2016-04-06

I have a Jeep CJ-5 with a fiberglass tub and want to know if Gator Guard will adhere to the underside of the fiberglass tub?

Asked by: Pav10
Yes, this product will adhere to fiberglass.
Answered by: KHoffnagle
Date published: 2016-04-04

Can this be rolled on over Rubberized Rust Encapsulator or regular Rust Enscapsulator? If so, what prep of the surface is needed?

Asked by: DIYJOE
It can be done, but i would only recommend it for small patches. This will give you greater durability if you apply this over bare metal or Epoxy primed surfaces.
Answered by: KHoffnagle
Date published: 2016-03-30

Is this product a waterproof coating, and to what temperature is the product rated .

Asked by: Gccccc
It is waterproof when applied correctly. There is no temp rating listed, so it's safe to assume about a 200 degree limit, the same as standard automotive paint. It is not a high temp rated product.
Answered by: MikeL
Date published: 2016-02-03

Does this come in colors ?

Asked by: Ratt
This Bed liner is available in black or white only.
Answered by: S Church
Date published: 2016-01-28

I am looking for a product to weather proof a wooden platform in my pets enclosure. Would this work?

Asked by: Nancy
Technically yes, its a great durable coating for wood.
Answered by: SeanA
Date published: 2015-05-05
  • 2016-06-25T09:31CST
  • bvseo_cps, prod_bvqa, vn_cps_3.2.1
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_10
  • loc_en_US, sid_10129Z, PRD, sort_recentAnswersFirst
  • clientName_eastwood

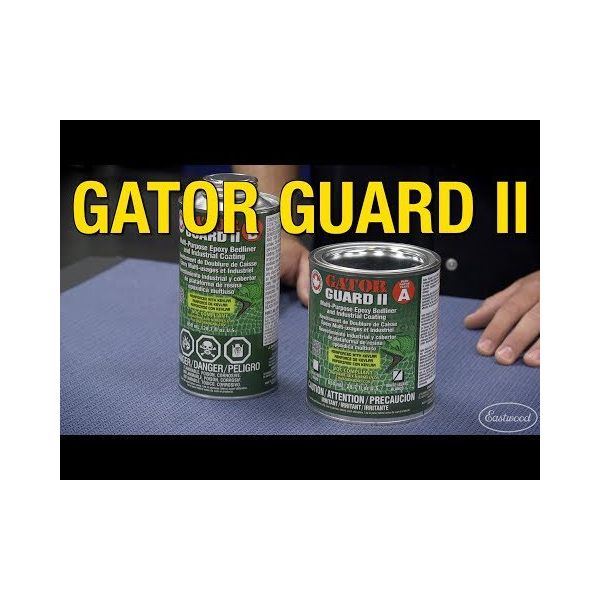

Gator Guard II Black Truck Bed Liner Kit

Item #10129Z Brand: Gator Guard

Durable, non-skid, chip-resistant black coating covers 32 sq. ft.
This item cannot be shipped to Sacramento County


Gator Guard II Liner Kit in black seals and protects your truck bed A truck bed that's lined with a tough, durable, black coating like Gator Guard II increases your truck's resale value, reduces maintenance, and adds a nicely detailed look.
  • 2-part epoxy formula
  • Black
  • Just spray, brush or roll on
  • 1 kit covers 32 sq. ft.

More info...

About Gator Guard II Black Truck Bed Liner Kit

The tough durable coating that seals and protects! Increase resale value, reduce maintenance and add a detailed look. Drop in liners can warp and trap water and contaminants that lead to bed corrosion. This two part epoxy is easy to apply with a wide brush, roller or sprayed with Undercoating Gun (16030A). Cured finish is flexible at low temperatures, offers a non-skid chip resistant finish. Adheres to firmly adhering paint or bare metal. Degrease area to be coated and mask. One kit covers 32 square feet. Most truck beds require 2 kits. 2 or more kits are available at a discounted price.

Not for sale or use in California. Eastwood Paints are formulated to meet National Rule VOC regulations, check with your local and state guidelines as some areas may have stricter regulations than others.


Each Truck Bed Liner Kit includes one container each of parts "A" and "B", a total of 1.7 liters or enough to cover the bed of a small truck. For larger trucks or heavier coats buy 2 kits.


At 72 degrees F surface will remain tacky for 7 hours. After 48 hours surface will have no product transfer and may be used for heavy loads. Do not wash surface with soap, water, or any other solvents for a minimum of 2 days after application.


Made in Canada.


This coating is appropriate for all surfaces except polyethylene and similar plastics. Lightly scuff to roughen surface before coating. Make sure surface is free of any grease or oil. Mix equal parts of A and B thoroughly. Brush or roll mixed material at a 5-10 mil thickness. For spray application using a shutz type gun, apply a medium-wet coat at 35-65 psi. Immediately clean off any overspray and applicator with mineral spirits or paint thinner. Works best between 65 and 95 degrees F. One kit coats 32 sq.ft. with a 5-10 mill coat.
