Eastwood Tubing Notcher is rated 3.2 out of 5 by 13.
Rated 3 out of 5 by from I expected Better Quality From Eastwood Upon initial setup of the jig I found the center-line of the pipe clamp was not aligned with teh center-line of the drill shaft. The unit required significant shimming of the pipe clamp assembly in order to make acceptable cuts. The drill shaft guide block could also have been machined down to make this adjustment as well, once the initial offset between the two was determined. I really expected that Eastwood would provide a more accurate tool out of the box.
Date published: 2013-05-27
Rated 1 out of 5 by from Doesn't do the job it's suppose to... This unit would be ok if it actually worked... Even though it says you can cut pipe up to 60 degrees, you can NOT. Even on only 1/2" pipe you can not cut past 30%. The design is a joke. If you try to go past 30 degrees even on 1/2" pipe, it hits hold saw and you can not notch pipe. To ad insult to injury, it looked like old stock that had been kept on the self for the past 15 years. I like Eastwood, yet they really dropped the ball on this one!
Date published: 2011-04-17
Rated 4 out of 5 by from Perfect for the money... I have built several mini chopper frames using this notcher without any problems at all.I have also used it for some railings and other projects for a local buisness and i havent had any trouble at all..A little common sense can go a long way..
Date published: 2012-02-02
  • y_2017, m_12, d_12, h_20
  • bvseo_bulk, prod_bvrr, vn_bulk_2.0.3
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_13
  • loc_en_US, sid_21749, prod, sort_[SortEntry(order=RELEVANCE, direction=DESCENDING)]
  • clientName_eastwood

I bought one of these Notchers from you a few years ago but I bent the shaft, is there any way to order a new shaft?

Asked by: KyleR
Unfortunately we do not have any spare parts for this unit.
Answered by: Scott C
Date published: 2017-11-06

Can this machine do offset notches?

Asked by: DavidC
This unit cannot do offset notches.
Answered by: S Church
Date published: 2017-07-31

hi. can you ship to south korea?

Asked by: yorgi
You will need to contact customer service at 1-800-345-1178 for any shipping questions.
Answered by: S Church
Date published: 2017-07-31

Can this notcher do square/rectangular tube?

Asked by: BillT
This notcher will handle up to a 2" x 2-1/2" rectangular tube.
Answered by: NickC
Date published: 2017-07-31
  • y_2017, m_12, d_12, h_20CST
  • bvseo_bulk, prod_bvqa, vn_bulk_2.0.3
  • cp_1, bvpage1
  • co_hasquestionsanswers, tq_4
  • loc_en_US, sid_21749, prod, sort_[SortEntry(order=LAST_APPROVED_ANSWER_SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood

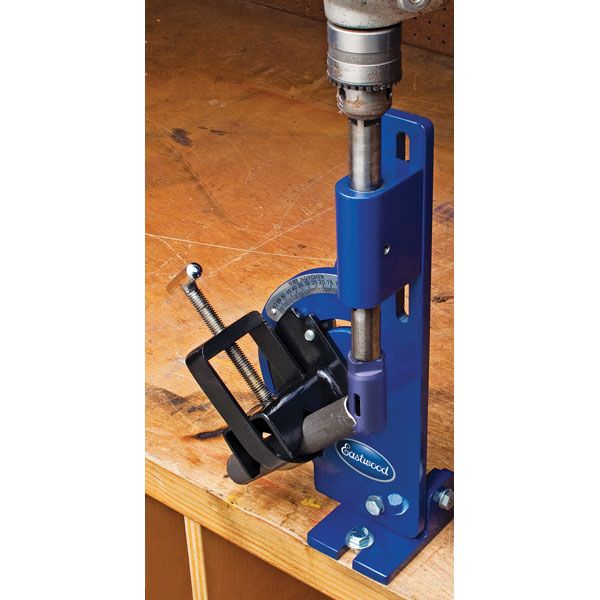

Eastwood Tubing Notcher

Item #21749 Brand: Eastwood

Bore up to a 2" hole in mild steel, stainless, alum. tubing; no hole saws

In stock

Only $69.99



Details

Pipe & Tubing Notcher secures up to 2"-dia. round tubing to notch angles of up to 60 degrees.

  • Use a standard hole saw up to 2-1/2" in dia. (not included)
  • Notches up to a 2"-dia. round tube
  • Notches up to a 2" x 2-1/2" rectangular tube

Use our Tubing Notcher with any handheld drill or drill press to notch pipes and tubing for easy joining. Create any angle saddle notch on pipe for weld fit-up.


More info...

About Eastwood Tubing Notcher

The Pipe/Tubing Notcher can be used with any hand-held drill or drill press, together with a standard hole saw (not included) up to 2-1/2" diameter. Compound angle adjustment up to 60 degree.Color may vary.


Accessories

7-Pc. Hole Saw Set

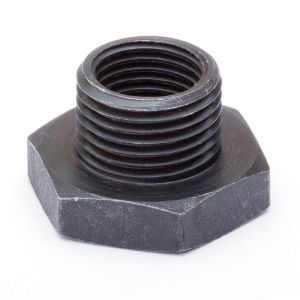

20178 Tubing Notcher Adapter


Instructions

Click here for Tubing Notcher instructions
