Item #
20492
BRAND: Eastwood

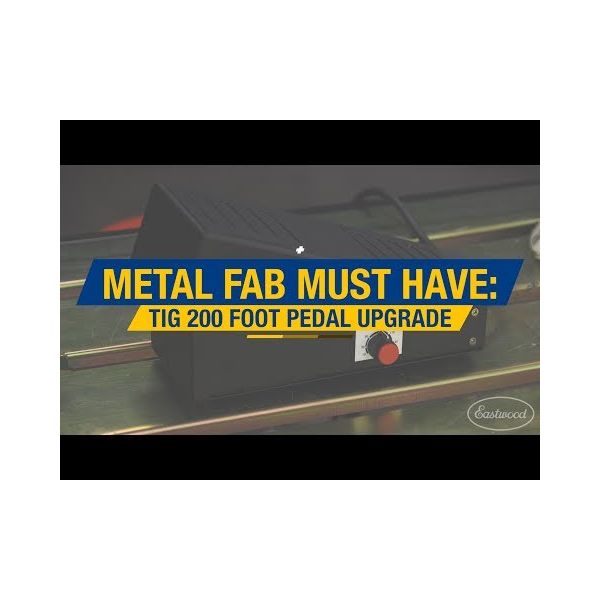

TIG 200ACDC Foot Pedal upgrade 2 and 3 Pin
Rocker style, precision foot pedal control for 12746 Eastwood TIG 200 AC/DC
Rocker style, precision foot pedal control for 12746 Eastwood TIG 200 AC/DC
Eastwood HotCoat® Powder Coat Silver Vein - 1lb is rated
out of
5 by
18.
Rocker style, precision foot pedal control for 12746 Eastwood TIG 200 AC/DC
100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.
- • Lifetime Tech Support
Frequently Bought Together
Price for all checked items:
Product Overview:
Description
Precise control with no fatigue delivers better welds when using this rocker style foot pedal with your 12746 Eastwood TIG 200 AC/DC Welder.
- Works with Eastwood 12746 TIG 200 AC/DC Welders
- Low profile design for maximum user comfort
- Rocker style foot pedal function
- Infinitely adjustable amperage limiting knob
Features an infinitely adjustable amperage control knob, low profile design for maximum comfort with rubber feet and pedal pad for non-slip security.
Warranty
1 year Made in China
In the Box
Contents
4.5 x 10 Inch footprint. One foot pedal.
This Foot Pedal will only fit the 20565 & 12746 Eastwood TIG 200 AC/DC Welders. Will not work on the 14100 Eastwood TIG 200 DC Welder.
Guides & Accessories
Safety Information
Always wear an approved welding helmet and welding gloves when welding. Do not use around flammable materials.
Accessories
Reviews
Rated 5 out of
5
by
This Old Hotrod from
Foot Pedal Upgrade
The pedal is a great upgrade to the original pedal that comes with the machine.
Exactly what you need for better heat control and comfortable foot control.
It’s a must buy !
Date published: 2022-02-24
Rated 5 out of
5
by
Norman P from
Nice upgrade
Been using my tig200 almost 10 years now finally was walking amperage some. I am now loving this pedal which gives lots more control
Date published: 2021-08-26
Rated 5 out of
5
by
Anonymous from
A great addition
The original foot pedal to my lotos sq wave failed,this is so much better to use and percise,
Date published: 2020-08-01
Rated 5 out of
5
by
W welder from
Just what I needed
I recently bought a used older model TIG200 from a friend who was upgrading his machine (enjoying the machine). The foot pedal is what I needed to have control starting and ending passes. The amp control also assist in easily getting the best stoke of the pedal for the thickness materiel you are welding. It seems to match the machine settings very well. The unit seems well made and should last this careful hobbyist nicely. Eastwood's video demonstrations on the use of a "pedal" and the positive reviews here sold me and I am very satisfied - Thank you
Date published: 2020-07-05
Rated 5 out of
5
by
Deedleheim from
TIG 200 AC/DC upgrade pedal
Just got it and tried it today - much better than the original half-pedal. I tried one of those cheap metal pedals with the exposed gear rack but found it had the wrong potentiometer range and was wired backwards for my machine. After replacing and rewiring the potentiometer it was only marginally better than the original pedal. After I got the correct Eastwood upgrade pedal and checking all 3 on my multimeter I am happy to report that the Eastwood upgrade pedal has the largest usable range <0~5K> and the smoothest, most linear action of the 3. It looks like all new TIG 200s ship with this pedal which is good. If you have the half pedal just keep it for a spare and get the upgrade pedal, especially for low amperage work.
Date published: 2018-12-29
Rated 5 out of
5
by
Tank1949 from
TIG Pedal Upgrade
I thought that I had already provided a review on this product earlier. Oh well... This pedal is light years better than they one I received with my original TIG purchase. The original was super sensitive or would "walk" causing heat/amp issues. I had to concentrate too much on pedal. Scott, worked with me to solve my TIG issues and upgraded my original pedal with a newly designed one. The only draw back, at least for me, is that the amp control knob should be better protected against large boots slipping off pedal and "hitting" the exposed knob. The original one lack this feature too. Perhaps adding a guard???? Great customer service!!!!
Date published: 2018-03-05
Rated 5 out of
5
by
Ninjancik from
Standard Equipment
This is my first welder and the original pedal was more like a light switch than a pedal you can modulate. This pedal is much easier to tune amperage and much more comfortable to use. This should be the standard pedal for the TIG 200.
Date published: 2016-09-22
Rated 5 out of
5
by
Oldy from
This should be this standard accessory.
The pedal just arrived yesterday so I haven't hooked it up yet, but Just working it on the floor it feels 500 percent better than the little half pedal that comes with the T200 TIG welder. Every time I tried to use that pedal, it would move around under my foot & I would have to search blindly for it. One time my foot hit the adjust knob & all of a sudden the welder wouldn't weld because I have moved the Amp setting down to 20 with my foot. I was almost tempted to glue that half-pedal to the floor!
Date published: 2016-08-27
Questions & Answers
Dose this unit allow the user to vary the current with there foot or do you have to set the current to a specific amperage
Description
Precise control with no fatigue delivers better welds when using this rocker style foot pedal with your 12746 Eastwood TIG 200 AC/DC Welder.
Works with Eastwood 12746 TIG 200 AC/DC Welders
Low profile design for maximum user comfort
Rocker style foot pedal function
Infinitely adjustable amperage limiting knob
Features an infinitely adjustable amperage control knob, low profile design for maximum comfort with rubber feet and pedal pad for non-slip security.
Date published: 2023-09-14
Will this connect to older tig 200 which has a 3 pin connector for the foot pedal and a 2 pin connector for the torch.
I believe so, but please reach out to customer solutions with your welder part number/serial and pictures to confirm: help@eastwood.com or 800-343-9353.
Date published: 2023-01-19
I have a tig 200 ac/dc and bought the upgraded foot pedal. Is there any reason you couldn't run the cable out the other end of the pedal. It seems to be in way coming out towards my heel and my chair. Just suggestion to make it better.
I don't see why not, thanks for the input I'll let the product manager know.
Date published: 2022-11-02
any updates on coming out with a torch mounted amperage control ?
Not at this current time. We will continue to mention the interest to our Product Manager for these units though.
Date published: 2021-06-17
Can I get a foot pedal or trigger for 250I new welder not happy with just striking an arc on the tig torch
At this time we do not have a foot pedal for the 250i as it is a scratch start TIG welder.
Date published: 2020-09-16
Will this foot pedal work with the Elite MP200 Multi-process welder?
That welder isn't designed to use a foot pedal.
Date published: 2020-05-20
Hi, does this pedal work with the lotos tig200? that has 2 and 3 pin for the pedal control. Thanks
Il this is a lil older post but if you are still wanting to know if this pedal works with the lotos tig200ac/dc machine it does! I just got thos pedal for the same machine you are asking about and it was plug and play works 100% better than the lotos pedal. Hope this helps you or anyome else looking for a replacement pedal for the lotos
Date published: 2024-03-17
I have a tig 200 AC/DC the welder I have has 5 prongs will this pedal work on my welder?
If you have a five pin connection you would want to purchase item 20493.
Date published: 2021-07-09
