Item #
21118
BRAND: Eastwood

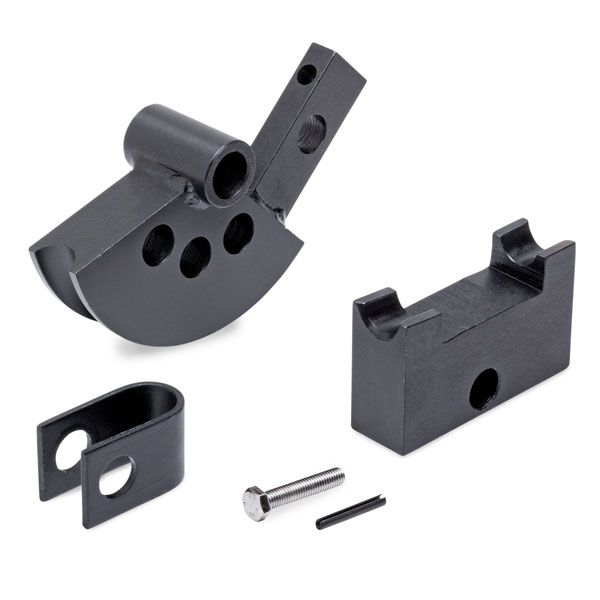

1.0in X 4in Radius 120 degree Die
1.0in X 4in Radius 120 degree Die for Eastwood High Capacity Tubing Bender
1.0in X 4in Radius 120 degree Die for Eastwood High Capacity Tubing Bender
AMD Auto Metal Direct 70 El Camino Chevelle Wagon Fender LH X200 3770 L is rated
out of
5 by
27.
1.0in X 4in Radius 120 degree Die for Eastwood High Capacity Tubing Bender
1 year Warranty Included
100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.
- • 90 Day Returns
- • Lifetime Tech Support
Product Overview:
Description
Achieve 4 Inch bends up to 120 degrees on 1 Inch OD tubing with this Mandral Die and the Eastwood High Capacity Tubing Bender.
Warranty
In the Box
Contents
Guides & Accessories
Safety Information
Accessories
21117 0.75" x 3" Radius, 120° Die
21118 1.0" x 4" Radius, 120° Die
21119 1.5" x 5" Radius, 120° Die
21120 1.625" x 5" Radius, 120° Die
21121 1.75" x 6" Radius, 120° Die
21122 2" x 6" Radius, 120° Die
21123 0.75" x 3" Radius, 240° Die
21124 1.0" x 4" Radius, 240° Die
21125 1.5" x 5" Radius, 240° Die
21126 1.625" x 5" Radius, 240° Die
21127 1.75" x 6" Radius, 240° Die
Application Tips

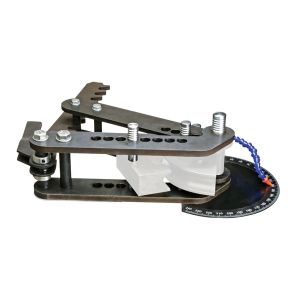

For Eastwood High Capacity Tubing Bender.
Reviews
Rated 5 out of
5
by
RyDaddy from
Whole roll cage built with minimal issues
I did have an issue with a bend pin, but Eastwood remedied that quickly.
Date published: 2023-03-05
Rated 5 out of
5
by
RyDaddy from
Nice Unit
I need to fight the pin out of the saddle to get the bent tube out, but I figured out a technique to make it work. Probably just that I am using it at its limit on 2" x .120-wall tube.
Date published: 2023-03-05
Rated 5 out of
5
by
Anonymous from
Fits the Woodward WFB2
Bought this to find out if the Woodward Fab and Eastwood tube bending dies were interchangeable. The answer is yes. These dies fit the Woodward Fab WFB2 bender.
Read the other reviews and I can tell you the one where the holding clamp got bent was operator error. If you use the shortest pin it doesn't seat far enough and the bottom will slip off. So make sure you use the correct pin.
Date published: 2020-02-20
Rated 5 out of
5
by
Anonymous from
It Fits WFB2
Bought this die to figure out once and for all if the Woodward Fab and Eastwood tubing dies were interchangeable. The answer is YES THESE DIES WILL FIT THE WFB2 tubing bender as well.
Date published: 2020-02-20
Rated 5 out of
5
by
Tony from
advice for soft tubing
Reading through the reviews I see many questions about bending aluminum and kinking issues. The trick to bending soft materials with any bender is to cap one end of the tube, fill it with sand, then cap the final end. The sand will go around the bend and support the tube from the inside.
Date published: 2019-06-23
Rated 5 out of
5
by
GSess from
Fantastic Bender!
Had a commercial handrail job and needed a bender. Purchased the Eastwood High Capacity Tubing Bender with the 1 3/4" 240 degree die set, watched a few Youtube vids and decided to purchase the Air/Hydraulic 8 ton hydraulic ram from HF. , then went to Swagoffroad.com and ordered the mounting kit compatible with the Eastwood tubing bender. The bender performed with perfection bending 1 3/4" x .120 wall tubing up to 103 degrees for a final of 98 degrees. You have to bend a bout 5 degrees over your target to compensate for spring back. Attached are some photos. When the railings are out of powder coting and installed in front of Dollar Tree in Silverton Oregon, I will post them as well.
Date published: 2019-01-14
Rated 5 out of
5
by
34builder from
very well constructed
The leverage action makes it very to bend 1.5 inch .100 wall tubing A little tricky getting
tubing out of the die. but a heavy duty C-clamp solved the problem.
Date published: 2016-07-28
Rated 4 out of
5
by
RyDaddy from
NEEDED addition!
I can't even imagine bending w/o this handle, as I had to add an ADDITIONAL 3ft of handle to be able to bend easily. I added a solid bar inside this handle and that slides in and out, as needed, and makes it all work WAY better.
Date published: 2023-03-05
Questions & Answers
How would you remove the material after you bent it to 240°?
you can tap the tubing off the tool by using a rubber or wooden mallet.
Date published: 2023-05-06
Does the 120 degree die work differently than the 240 and how? Tnx
The die does not operate any differently, but you will be limited to 120° or 240° maximum bends. If you need more than 120° of angle definitely go with a 240° die.
Date published: 2022-05-26
Do you have a 1 1/4, die for tubing bender?
We do not have a 1.25" die for this bender at this moment
Date published: 2022-05-12
I can bend pipe 1-1/4 sch40. Normally what I work are railings.
We do not offer a 1 1/4" die at the moment
Date published: 2024-02-09
Will this bender work to bend EMT conduit if you use the correct die? I need to bend 1.25" EMT conduit, the OD is 1.50 and the wall thickness is .072
We do not recommend using this tool to bend EMT conduit.
Date published: 2024-02-09
Can the bender bend 1 1/4 dom tube
We do not currently have a 1 1/4" die for this machine at this time.
Date published: 2021-06-08
Is the a die set to bend for square tubing?
This is for round tubing only. Unfortunately, we do not currently offer any dies for square tubing.
Date published: 2024-02-09
Will these work on a pro 105 bender
The 1.75in X 6in Radius 240 degree Die(21127) is specified for the Eastwood High Capacity Tubing Bender (21115). As we do not have cross reference material we can not determine if it will fit your bender, You may want to call the manufacturer of your bender for specifications and details.
Date published: 2021-01-25
