Item #
20199
BRAND: Eastwood

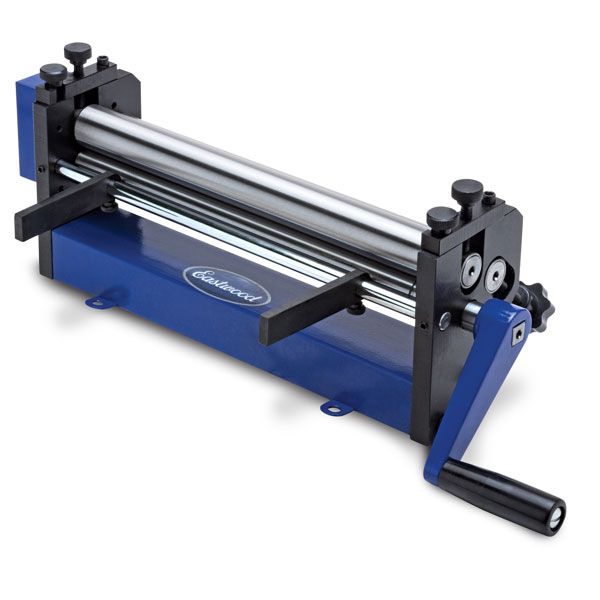

Eastwood 12 Inch Metal Fabrication Slip Roll
12 Inch Slip Roll will handle your rolling needs up to 18 gauge steel.
12 Inch Slip Roll will handle your rolling needs up to 18 gauge steel.
12 Inch Slip Roll will handle your rolling needs up to 18 gauge steel.
1 year Warranty Included
Add an Eastwood Service Plan for additional protection?
Learn More
The Eastwood Service Plan
Protect your purchase with comprehensive coverage
24/7 support
No deductibles, no additional fees
Parts & labor costs included
Transferable coverage and more
100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.
- • Lifetime Tech Support
Frequently Bought Together
Price for all checked items:
Product Overview:
Description
The Eastwood 12 inch slip roll is designed for use on sheet metal and wire up to 12 inches in width and 18 gauge in thickness.
CREATE:
- Bends
- Cones
- Cylinders
This unit will create gentle arcs, cones or cylinders, helping you create patch panels for rockers, roll pans, door skins and lower fender areas.
Warranty
Specifications
- Maximum Roll Width 12”
- Minimum Roll Diameter 1-1/4”
- Maximum Thickness 18 Gauge
- Wire Forming Sizes 5/64”, 1/8”, 5/32”
- Overall Length 20"
In the Box
Contents
20 inch overall length. Includes all that is required to begin forming sheet metal and wire.
Guides & Accessories
Instructions
Safety Information
Always wear eye, face and hand protection when handling sheet metal.
Accessories
Application Tips
Maximum Thickness 18 Gauge , Wire Forming Sizes 5/64 inch, 1/8 inch, 5/32 inch
Reviews
Questions & Answers
Would this be able to handle .036 Stainless sheet?
This slip roll will be able to handle the .036 Stainless Steel
Date published: 2020-01-15
Will this work to flatten (remove the ridges) from large tin cans for an art project
The slip roll is not designed to remove the ridges in the tin cans.
Date published: 2020-01-02
will this unit allow me to make a ring as small as 2in up to 18in round for making lawn art
on the product page we note 1.25" as the minimum roll diameter. it will be difficult to get all the way down to that 1.25" though, I would recommend 1.5"
Date published: 2019-12-24
What is the smallest diameter it can roll in 18 gauge sheet metal?
The smallest diameter this will roll to is 1 1/4".
Date published: 2019-11-25
Id like to use this unit to crush Romex and other wire to save on stripping time for copper. Will it acomodate different wires and crush it for stripping?
The Slip roll is designed for making curves in sheet metal. We have not tested the use of the slip roll for crushing the Romex.
Date published: 2019-08-17
When I read the directions I see that it states that it will work up to 18 gauge sheet metal and also 18 gauge steel. Isn’t the steel much tougher? What am I missing? Thanks
18 gauge steel would be the same thickness as sheet metal.
Date published: 2019-07-31
What is the thickest round stock this will roll?
The thickest wire this unit can form is 5/32.
Date published: 2019-07-25
Will this roll 1/8"x2" steel flatbar to 5" id Model #20199
This unit cannot roll 1/8 flat bar as it is only rated to 18 gauge.
Date published: 2019-07-25
What size square drive is the handle?
The drive square is 1/2 inch square
Date published: 2019-02-07
How wide apart can the rolls be place and still function? Looking to remove the offset roll and use the 2 vertically stacked rolls with 2 part silicone to mix an A & B part and then roll out even thickness sheet. Its about the consistency of clay.
We have never tested this tool in such a way. We designed the Slip Roll for sheet metal use.
Date published: 2018-11-17
Can I make a 2-1/2" radius in 0.05" 6Al-4V (grade 5) annealed titanium alloy? Also what about a 2" radius in 0.05" Inconel 625 or Alloy X?
This tool will not be able to handle this request.
Date published: 2018-11-16
Hello. I am looking for slip roll 14 gauge capacity. Do you sell this kind? and what is the price
We do not currently offer a slip roll which can roll 14 gauge metal. This bumps more into the industrial model.
Date published: 2018-11-29
Do you offer a longer crank? I am finding it difficult to turn.
I rebuilt the Handle myself. I made it 18" long. (Works great) It is not that hard to do, but remember not to increase the size of the material that you are rolling. I did and broke the gears. Replacement gear are not that easy to find. The company that sells these units should carry replacement parts also.
Date published: 2019-10-22
I am working on how to put flutes in a 10" wide x 120" long 26 gauge piece of stainless steel sheet. The flutes would only be 0.058 deep on 0.1875 spacing with rounded corners top and bottom. I make the rollers. The output needs to be flat. Workable?
Based on your description I do not believe that this tool would work for you.
Date published: 2018-01-30
Will this straighten rolled steel flashing
While it is possible, this is outside what we test for to see how well it would work.
Date published: 2017-12-20
Will this roll handle .062 3003 aluminum?
The maximum material thickness is 18 gauge. The thickness you are referring to is about 15 gauge.
Date published: 2017-11-09
Will it roll thicker material in narrower widths?
This unit is not designed to go thicker as the width gets more narrow.
Date published: 2022-02-25
