Item # 32565 BRAND: Multitool

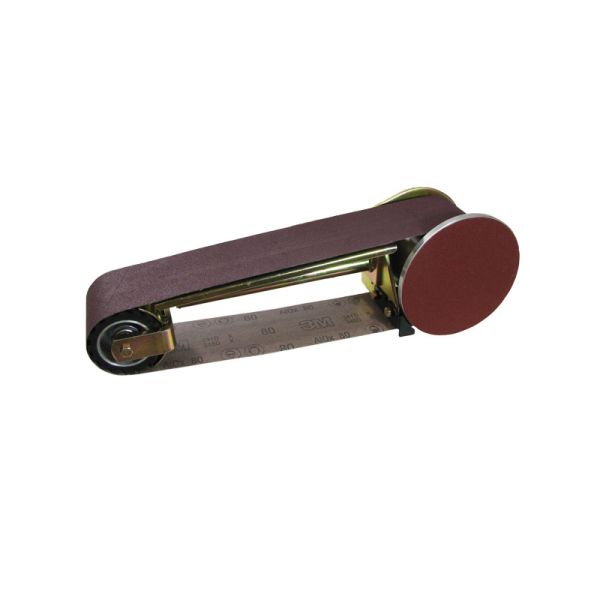

Multitool 2 Inch x 48 Inch Belt with 7 Inch Disc - Grinder Attachment - MT482

2" x 48" Belt Sander Attachment
2" x 48" Belt Sander Attachment
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 4.36ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
$299.00
Loading...
Loading...
Save for Later
2" x 48" Belt Sander Attachment

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • 90 Day Returns
  • • Lifetime Tech Support
Multitool 2 Inch x 48 Inch Belt with 7 Inch Disc - Grinder Attachment - MT482

Product Overview:

Description

Our 2" x 48" belt with 7 " disc attachment extend your capabilities far beyond traditional bench grinders. The additional length of the 2 x 48 attachment provides an extra long precision top platen for straightening, flat finishing, or profiling longer edges. Additionally the longer belt length offers increased belt wrap on the underside slack belt surface for external contouring and blending.

The front contact wheel can be used for smooth controlled grinding, contouring, or internal finishing. The large 7 inch disc sander on the side offers plenty of surface area to work with for beveling, deburring, squaring and general sanding. Multitool Attachments fit almost any bench grinder with a 1/2 or 5/8 shaft.


Multitool Features:

  • Belt can be operated in horizontal or vertical position
  • OSHA Approved disc and belt guarding
  • Fully Machined, Balanced hub ensures disc & belt run vibration free
  • Precision top platen can be used for perfect flat finishing
  • The tool free quick change belt system allows the operator to go from rough grinding, to finishing & polishing in seconds
  • 2" x 48" belt
  • 7" Disc
  • Warranty

    3 Year Warranty

    Specifications

    Fits most bench grinders with 1/2 or 5/8 shaft
    5 grinding positions: contact wheel, flat platen, slack belt, disc, and grinding wheel
    Belt attachment can be operated in vertical or horizontal position
    Precision top platen can be used for perfect flat finishing
    The tool free quick change belt system allows the operator to go from rough grinding, to finishing & polishing in seconds
    Overall Dimensions: 24" x 8" x 4"
    Platen Size: 2" x 11.25"

    Shipping & Handling

    Ships Directly from Manufacturer Via UPS

    In the Box

    Guides & Accessories

    Safety Information

    Always wear ANSI approved ear, eye, and hand safety equipment when using this type of tool.

    Aerosol Details

    N/A

    Application Tips

    N/A

    Reviews

    • bvseo_sdk, p_sdk, 3.2.1
    • CLOUD, getReviews, 4.13ms
    • REVIEWS, PRODUCT
    • bvseo-msg: HTTP status code of 404 was returned; HTTP status code of 404 was returned;

    Questions & Answers

    How easy or difficult is it to attach this unit to a table top grinder? If I was to purchase a Jet is there any modifications that need to happen to insure proper installation?

    Asked by: Renee
    No it will bolt on to a jet or any other common grinder, and to clarify some confusion from earlier questions  the 7” is the drive wheel  ( the wheel that attaches to the grinder and pushes the belt ) the contact wheel is the 3.5” rubber wheel which I can also grind on. However for an additional cost you can upgrade to an 8 “ contact wheel, there is a catch though from what I understand.  For them to give you a bigger surface wheel but still keep it at 48” you pretty much end up getting the 2x36 grinder with the big contact wheel which still bring the total size to  48”,  meaning if you ever wanted to go back to a 3.5 contact wheel you would no longer have a 2x48 but a 2x36 hope that helps and does t confuse even more
    Answered by: Mikayel s
    Date published: 2022-03-15

    I have a 1.5 HP electric motor (craftsmen) with 5/8 shaft, would I be able to set this up on that motor? I'm thinking I would probably need to fabricate the mount because it was set up to go on a bench grinder. Is this possible?

    Asked by: Eleactric motor
    Per the manufacture this unit is designed to mount to a bench grinder such as the JET 8' Shop Bench Grinder (22984) with a 1/2" or 5/8" shaft size. Custom mounting is not recommended.
    Answered by: vince
    Date published: 2021-03-28

    How precise is the surface tolerance of the entire surface of the platten  I need glass level tolerance.

    Asked by: John
    The platens have different tolerances depending on the motor the belt attachment is installed on, and the size attachment. You would be able to achieve a very precise tolerance from the factory platen, but if you need absolute precision on your tolerance from the plated. I would install a piece of tool steel bolted to the plated. Bolting tool steel to the platen to achieve an exact tolerance is common practice in the belt grinder industry. It’s a modification that can easily and economically be performed on any belt grinder. It is a modification that you can do on own. If you look online there is a plethora of information on achieving this modification.
    Answered by: John S
    Date published: 2020-12-22

    Question for Kelly H. Are you sure the contact wheel on this machine is 8”? The information indicates the disc grinder is 7”. Just wanted to be sure.

    Asked by: dk48
    We apologize for the confusion. We do offer a model with a larger 8 inch contact wheel. This unit though only has a 3.5 inch contact wheel.
    Answered by: Scott C
    Date published: 2021-08-07

    What is the diameter of the contact wheel?

    Asked by: OneOfUnKind
    The diameter of the contact wheel on this item is 8".
    Answered by: Kelly H
    Date published: 2020-02-24

    Is the contact wheel rubberized?

    Asked by: Russell
    Yes this wheel is rubberized.
    Answered by: Kelly H
    Date published: 2019-12-05
