Item # 20521 BRAND: Eastwood

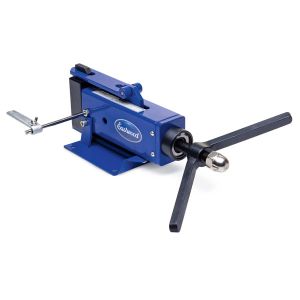

Eastwood 4 in Metal Bender

Industrial style tool capable of generating a powerful 2-1/2 tons of pressing force
Industrial style tool capable of generating a powerful 2-1/2 tons of pressing force
Eastwood 4 in Metal Bender is rated 3.8 out of 5 by 18.
  • y_2022, m_1, d_19, h_20
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.20
  • cp_1, bvpage1
  • co_hasreviews, tv_2, tr_16
  • loc_en_US, sid_20521, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 175.78ms
  • REVIEWS, PRODUCT
$147.99
Loading...
Loading...
Save for Later
Industrial style tool capable of generating a powerful 2-1/2 tons of pressing force
  • 90-Day Returns
  • Technical Support
  • 1 year Warranty
Eastwood 4 in Metal Bender

Product Overview:

Description

Eastwood Benchtop Metal Bender

The Eastwood 4-Inch Metal Bender is a compact but strong steel bender that is capable of completing precise bends up to 3/8-inch thick mild steel. It’s an affordable metal forming tool that fits on any workbench with easy hand-crank operation. Save space and time when bending suspension brackets or seat mounts for your project. Others use our medium-duty metal bender for patch panels or ornament artwork.

To make custom parts, simply mount the compact bender on a work surface with four bolts and start bending your desired material. There’s no need for a full-size hydraulic press that takes up a large amount of space in your shop when you can achieve the same results with a metal brake that’s a fraction of the size. The Eastwood 4” Metal Bender is a high-quality industrial-style tool capable of generating a powerful 2.5 tons of pressing force.

The Eastwood 4 Inch Metal Bender Features:

  • Powerful 2-1/2 tons of pressing force
  • Create up to 90 degree bends
  • Generates 2.5 tons of pressing force
  • Bends mild steel and aluminum up to 3/8" thick and 4" wide

Simply mount the bend on a work surface and start bending your desired material. No need for a full size hydraulic press that takes up a large amount of space in your shop. Save space and time when bending suspension brackets or seat mounts for your project.

Use your metal bender board to create 90-degree or lesser repeatable bends in mild steel and aluminum up to 4” wide. On 1/8-inch thick steel, you can increase the bend to 125 degrees. The maximum metal thickness varies depending on how wide the steel plate is; consult the chart below before getting started. Shop at Eastwood for professional-quality metal forming tools that cost less than comparable equipment from leading brands. We provide free technical support by phone, email or the Eastwood Garage.

Specifications

Maximum Jaw Travel 2-1/2”
Minimum Bend Radius 1/4”

NOTE: For mild steel only. High carbon steel and stainless steel allowable thickness will be less while aluminum thickness will be higher.

Maximum Bend Angle 90°
Average Maximum Expected Material Bending Capability.

NOTE: Material thicknesses shown are for mild steel only. High carbon steel and stainless steel thickness will be less while aluminum thickness will be higher.

3/4” wide, max. 3/8” thick
2” wide, max. 1/4” thick
4” wide, max. 3/16” thick

In the Box

Contents

  • (1) Metal Bending Brake Unit
  • (1) Male Die
  • (1) Handle
  • (1) Acorn Nut
  • (1) Stop Rod
  • (1) Stop Rod Lock Nut
  • (1) Workpiece Stop Gauge
  • (1) Stop Clamping Screw
  • (1) Stop Clamping Wingnut

Guides & Accessories

Instructions

Safety Information

This tool has leveraged rotating components that generate greatly amplified crushing and bending forces which can quickly cause severe injury! Keep fingers and hands away from moving parts when operating.

Handling sharp metal can cause serious cuts. Wear thick, well fitting work gloves to prevent cuts from handling sharp metal.

Accessories

Eastwood 4 In Metal Bender Mild Steel Aluminum 2-1/2 Ton Pressing Force Industrial Style

Application Tips

Bends Mild Steel And Aluminum Up To 3/8" Thick And 4" Wide

Reviews

Rated 5 out of 5 by from Great tool, good price, very happy With every penny, works great, excellent repeatability.
Date published: 2021-12-21
Rated 5 out of 5 by from Metal bender Great price. Works well. Wish there were replaceable dyes for a sharper bend.
Date published: 2021-10-26
Rated 5 out of 5 by from Works great! Bought it to make custom brackets out of 1 1/4 x 1/8" flat steel bar. Extremely easy and precise. Once you get your bend at the right angle, crank another half turn on the handle to allow for spring back so it comes to rest where you want it when the pressure is released.
Date published: 2021-10-25
  • y_2022, m_1, d_19, h_20
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.20
  • cp_1, bvpage1
  • co_hasreviews, tv_2, tr_16
  • loc_en_US, sid_20521, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 98.86ms
  • REVIEWS, PRODUCT

Questions & Answers

I have a 4 1/2" long 1/8" think steel bar. I need to make 2 - 90 degree bends, both 1.33" from each of the ends, in the same direction. Will I be able to make the 2nd bend or will the first bend interfere with being able to make the 2nd bend?

Asked by: Sean
Unfortunately that would be to tight of a bend for this tool.
Answered by: vince
Date published: 2021-05-15

Can this item bend 3/8” round stock?

Asked by: Stevenw
The Eastwood 4" Metal Bender(20521) will bend 3/8" mild steel round bar. You will need to set the round bar to the bottom of the bender to keep it from twisting when bending.
Answered by: vince
Date published: 2021-02-13

Could you bend washers 11/4 up to 2"0

Asked by: Sparky
The Eastwood 4inch Metal Bender will bend mild steel up to 3/16th inch thick and up to 4" high. It will also bend Aluminum up to 3/8th inch and up to 4' high. Should your item fall within these parameters the Eastwood 4" metal bender (20521) will bend it.
Answered by: vince
Date published: 2021-01-29

Can you change out the die set to make a sharper 45 because the one that come with it makes my radius to big I would need sharper die

Asked by: Pt the welder
Unfortunately, we do not offer alternate dies for this unit at this time. This arrives described.
Answered by: Kelly H
Date published: 2020-10-30

I need to make a handrail of 2”x1/4” aluminum. Each end should be curved similar to a sidesways U to match an existing rail. Can gm this tool create wide curves, rather than bends? Is that just a technique of how to use the tool? Thanks

Asked by: Lilly
Based on what you're describing our heavy duty metal bender would make gentle curves much easier in your aluminum. https://www.eastwood.com/heavy-duty-metal-bender.html
Answered by: Scott C
Date published: 2020-05-04

Will this work to bend rebar into hairpin legs?

Asked by: Penny68
As long as the rebar is 3/8" or thinner, this will work.
Answered by: Bob G
Date published: 2020-03-25

Can it bend an inch from the end or does it need to be longer?

Asked by: Rstanley
1 inch from the one end would be the minimum length that will work with this tool
Answered by: Bob G
Date published: 2020-11-11

Could this bend 1/4" x 4" plate at lesser angles. I'm not looking to make true 90 degree bends but only slight bends from level surface.

Asked by: Matt
This tool is rated for 3/8" mild steel. Anything thicker will compromise the frame of this tool.
Answered by: Bob G
Date published: 2020-01-23
