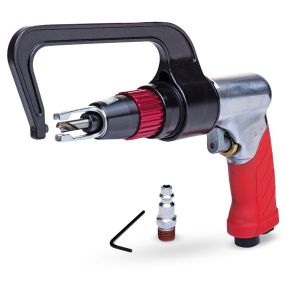

Eastwood 5/16in Pneumatic Spotweld Drill
Spot Weld Drill for faster, safer and easier panel removal.
Spot Weld Drill for faster, safer and easier panel removal.
Eastwood 5/16in Pneumatic Spotweld Drill is rated
out of
5 by
11.
Spot Weld Drill for faster, safer and easier panel removal.
1 year Warranty Included
Add an Eastwood Service Plan for additional protection?
Learn More
The Eastwood Service Plan
Protect your purchase with comprehensive coverage
24/7 support
No deductibles, no additional fees
Parts & labor costs included
Transferable coverage and more
100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.
- • 90 Day Returns
- • Lifetime Tech Support
Frequently Bought Together
Price for all checked items:
Product Overview:
Description
The Eastwood 5/16” [8mm] Spot Weld Drill makes drilling out spot welds for panel removal a less tedious and much safer job!
- Makes spot-weld drilling safer, faster and much easier
- Automatic bit advance feature with sturdy backing hook
- Precise cutting depth adjustment allows drilling through outer panel only with no damage to underlying panel
- Quick bit replacement. Uses Eastwood #31266 Replacement Spot Weld Bits
Get rid of old spot welds by drilling them out with this high-quality tool developed by our R&D guys. The Eastwood 5/16-inch (8-mm) Spot Weld Drill makes drilling out spot welds for panel removal a less tedious and much safer job. It features an automatic bit advance feature with positive spot-weld cutting depth adjustment and a removable backing hook. The set-screw drill bit retaining design provides convenient and secure cutting bit changes. Its high-torque motor requires just 4-CFM at 90-PSI, meaning you can connect it to pretty much any shop compressor.
Using a spot weld drill cutter is the fastest and easiest way to strip body panels from classic cars during the restoration process. It comes with a quick connect air fitting, one bit, a screw wrench and instructions. We also sell replacement spot well drill bits if you have a big project ahead. Watch our product video below or call our experts seven days a week for technical advice.
Warranty
Specifications
| Spot Weld Capacity | 1/4" & 5/16” [6 & 8mm] |
| Air Consumption | 4 cfm [114 lm] |
| RPM | 1,600 free speed |
| Maximum Inlet Air Pressure | 90 psi [6.3 bar] |
| Inlet thread size | 1/4” FNPT. |
In the Box
Contents
- (1) 5/16” Bit
- (1) ¼” MNPT Quick Connect Air Fitting
- (1) Bit Retaining Screw Wrench
- Complete Instructions
- Uses #31266 Replacement Bits
Guides & Accessories
Instructions
Click here to download product instructions PDF
Safety Information
Thoroughly read and understand these product instructions before using the Eastwood Spot Weld Drill.
Use ANSI approved safety glasses. Everyday eyeglasses are NOT safety glasses.
Click here to see safety products
Use ANSI approved safety glasses. Everyday eyeglasses are NOT safety glasses.
Click here to see safety products
Accessories
Application Tips
Reviews
Rated 5 out of
5
by
Jimmy from
My new favorite tool
This thing is so much better than any other tool I've used. Simply line the but up with it spot weld and press the trigger. It locks into place and drills the spot weld out in a couple of seconds. The time I saved is well worth the price!
Date published: 2022-07-01
Rated 5 out of
5
by
Jonathan B from
yep, it works!
Works exactly as it should. Super easy to use. after doing a ton of welds without it, I wish I had bought it sooner.
Date published: 2021-12-02
Rated 5 out of
5
by
405M from
Spot weld removal
It cut my time down dramatically. Highly recommended.
Date published: 2021-09-09
Rated 5 out of
5
by
Bad Dog Garage from
What a time saver!
Bough this spot weld drill for working on the restoration of my 1953 Allard K3, specifically the battery box I needed to replace. The original box was held in by about 125 spot welds, and trying to drill these out with an electric drill and spot-weld cutter would be time consuming, and prone to damaging the underlying panel. This tool made short work of the spot welds, saving me time and frustration, which alone justified the price. Easy to adjust and use with or without the backing handle. Highly recommend this if you have more than just a few welds that need to be drilled out!
Date published: 2021-03-17
Rated 5 out of
5
by
Randy from
Better than I had hoped...
I've been drilling out spot welds the old fashioned way for decades (Blair cutters) but decided to buy this tool a couple months ago. I had been under the impression that it could "only" be used with the arm, hence limiting it to spots where it could reach around__I was wrong! You can remove the arm and use it "freehand style" and it handily beats the old method for ease and speed!
I am VERY PLEASED with this tool, and wish I hadn't waited so long to buy it.
A tip: ease into the trigger slowly, allowing it to "clamp" before running the bit up to speed.
Date published: 2021-01-31
Rated 5 out of
5
by
Snakeman from
Great quality
Bought this. Couple weeks ago and cant believe how much time it saved me replacing my rocker panels
Date published: 2019-01-20
Questions & Answers
What is the depth of the arm (in inches)?
Total arm length is 6 3/4" from front to back. The throat opening is 4 3/4". (depth of arm)
Date published: 2021-02-14
Does drill come in a case with attatchments?(short arm extr as bits)
This product does not include a case.
Includes: (1) 5/16” Bit, (1) ¼” MNPT Quick Connect Air Fitting, (1) Bit Retaining Screw Wrench
Uses #31266 Replacement Bits https://www.eastwood.com/5-16-replacement-spot-weld-drill-bits.html
Date published: 2020-05-21
Are there replacement parts available? one of the 2 legs that clamp the metal broke. Love this Tool!!
You can call customer service at 800.343.9353, and we can put in a parts order for you.
Date published: 2019-11-15
How many different sizes can this drill use? Most common size is 3\8 spot weld bit can it use that?
This is designed to be used with a 5/16 drill but only.
Date published: 2019-09-18
Will the backing plate rotate to any angle?
Yes, this backing plate can rotate to any angle.
Date published: 2018-10-30
Does this tool come with a deeper arm? I need to get to spot welds that are a couple inches away from the edge of the panel. Or can you take the arm off and still use it?
Unfortunately, we do not have any alternate length options as far as arms for this tool. This arm can be removed, but for best results the arm should be left on.
Date published: 2020-04-02
When do you expect this back in stock?
This is due back in stock on 7/04/2018.
Date published: 2018-06-26
