Description

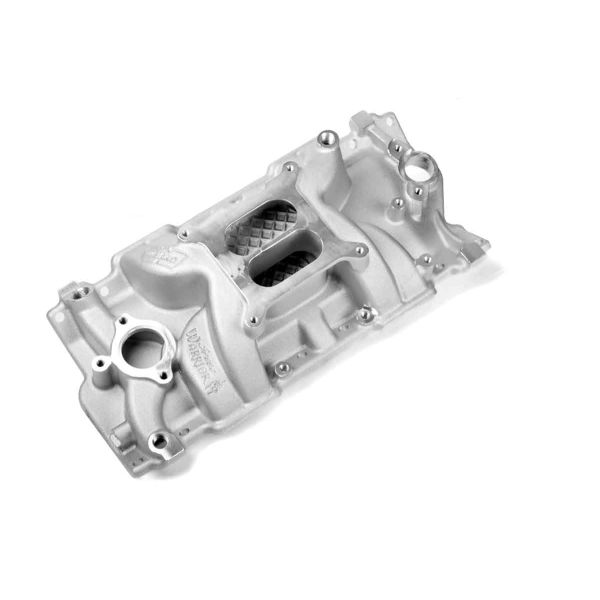

The Weiand Speed Warrior features long, separated runners for bottom-end and mid-range power, plus a special runner design and larger plenum to flow the air needed for high-rpm horsepower. All of this usable power makes this intake perfect for your street and strip hot rod!
Weiand developed the first ever aluminum intake manifold in 1937. Thirty years later Weiand developed complete blower drives for the GMC 6–71 supercharger. Today, Weiand is still at the forefront of intake manifold and blower development as well as high flow water pumps. To make more power you have to get more air to your engine. Look to Weiand as your power source!
Features:
- Satin (as cast) finish for and even surface texture
- Precision CNC machining
- High Rise/Dual Plane Design
- Square Bore Carburetor Flange
- Exhaust Crossover for Improved Street Drivability (Standard Small Block Chevy Heads)
- Power band: 1500-6700 RPM
- Height: Front 4.19", Rear 5.27"
- Port Size: 1.92” height, 1.16" width
Warranty
1 Year Manufacturers Warranty
Specifications
<div class="row"> <div class="col-lg-5"> <table class="specs w-100 mb-3"> <tr><td width="170">Barrels:</td><td>4</td></tr> <tr><td>Brand:</td><td>Weiand</td></tr> <tr><td>Construction:</td><td>Cast</td></tr> <tr><td>Emission Code:</td><td>3</td></tr> <tr><td>Engine:</td><td>Chevy Small Block V8</td></tr> <tr><td>Finish:</td><td>Satin</td></tr> <tr><td>Front Height:</td><td>4.19 inch</td></tr> <tr><td>Fuel System Type:</td><td>Carb</td></tr> <tr><td>Manifold Type:</td><td>High Rise</td></tr> <tr><td>Product Type:</td><td>Intake Manifold</td></tr> <tr><td>Rear Height:</td><td>5.27 inch</td></tr> <tr><td>RPM Power Band:</td><td>1500-6700</td></tr> <tr><td>Warranty:</td><td>Limited 90 Day</td></tr> <tr><td>Part Number:</td><td>8150</td></tr> </table> </div> <div class="col-lg-7"> <b>EMMISIONS</b><br><br> <p>This part is legal for sale and use on Uncontrolled (Non-Emissions Controlled) Vehicles and Racing Use Only Vehicles.</p> <p>The following vehicles are considered Uncontrolled (Non-Emissions Controlled) Vehicles:</p> <ul type="disc"> <li>1965 and older U.S. manufactured California Certified vehicles</li> <li>1967 and older U.S. manufactured Federally Certified vehicles</li> <li>1967 and older Foreign manufactured vehicle</li> </ul> <p>The following vehicles are considered Racing Use Only Vehicles:</p> <ul class="check-list"> <li>Racing Use Only Vehicles are vehicles that are used exclusively for competition and that are not registered and that may never be used on the street</li> </ul> <div class="alert alert-danger" role="alert"> WARNING: It is against the law to install this part on an Emissions Controlled Vehicle </div> <p>The following vehicles are considered Emissions Controlled Vehicles:</p> <ul class="check-list"> <li>1966 and newer U.S. manufactured California Certified vehicles</li> <li>1968 and newer U.S. manufactured Federally Certified vehicles</li> <li>1968 and newer Foreign manufactured vehicle</li> </ul> </div> </div>
In the Box
Contents
(1) 55-86 GM Small Block Weiand Speed Warrior Intake 8150
Guides & Accessories
Instructions
<p><a href="https://documents.holley.com/199r10393rev1.pdf" target="_blank"><i><b>Instructions for Part# 8150</b></i></a></p> <p><a href="https://documents.holley.com/w509rev.pdf" target="_blank"><i><b>Bolt Notice for Part# 8150</b></i></a></p> <p><a href="https://documents.holley.com/w537rev.pdf" target="_blank"><i><b>General Information for Part# 8150</b></i></a></p> ***Utilizes late model alternator an A/C bracket mounting provisions. ***Has additional vacuum tap off of runner. Recommended intake manifold gasket - Mr Gasket #'s 5821 or 101G ***Plenum depth: From the carb flange to the bottom of the upper plenum is 2-3/16”. To the bottom of the lower plenum is 4-1/16”.
