Item #
13743
BRAND: Eastwood

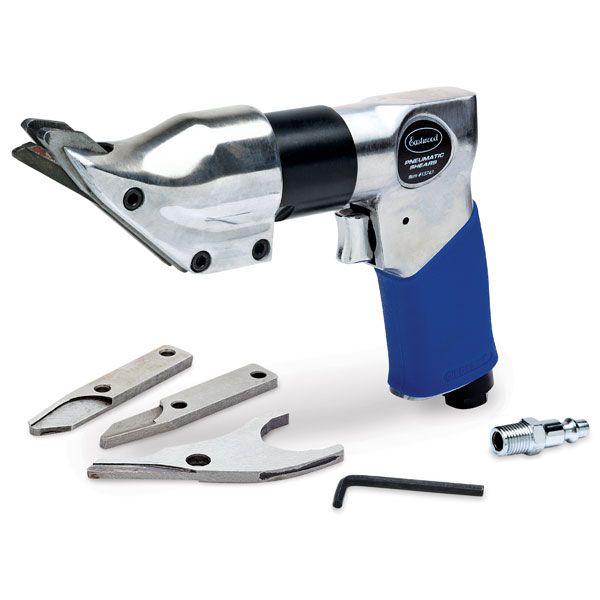

Eastwood Air Shears
Heavy-duty pneumatic shears make clean cuts in metal up to 18-gauge
Heavy-duty pneumatic shears make clean cuts in metal up to 18-gauge
Eastwood Air Shears is rated
out of
5 by
21.
Heavy-duty pneumatic shears make clean cuts in metal up to 18-gauge
1 year Warranty Included
Add an Eastwood Service Plan for additional protection?
Learn More
The Eastwood Service Plan
Protect your purchase with comprehensive coverage
24/7 support
No deductibles, no additional fees
Parts & labor costs included
Transferable coverage and more
100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.
- • 90 Day Returns
- • Lifetime Tech Support
Frequently Bought Together
Price for all checked items:
Product Overview:
Description
Eastwood's Heavy-Duty Air Shears makes clean cuts in metal up to 18-gauge.
The Eastwood Heavy Duty Air Shears Feature:
- 2,500 strokes per minute to aggressively cut through most metals and plastics
- Slices through up to 18-gauge metal, without chips
- Cutting head rotates for precise contoured cuts
- Needs just 4 cfm at 90 psi, so you can use a DIY compressor
Our air shears is built to match the quality and features of national brands, so it's built for everyday use in auto body shops, sheet metal shops, machine shops...and your shop.
Cuts most plastics and all steel, aluminum and tin. Pistol grip lets you cut more comfortably and precisely. Heavy-duty cutting blades are replaceable (13743A) to help maintain cutting performance.
Warranty
Specifications
| Maximum Thickness Mild Steel, Aluminum and Copper: | 18 Ga (0.050” [1.2mm]) |
| Maximum Thickness Stainless Steel: | 20 Ga (0.036”) [0.91mm] |
| Air Consumption: | 4 CFM @ 90 PSI [113 L/min @ 6.2bar] |
| Maximum Operating Pressure: | 90 PSI [6.2bar] |
| Strokes Per Minute: | 2,500 |
| Inlet Thread Size: | 1/4” FNPT |
| Motor Construction: | 4 Vane, Ball Bearing Air Motor with Planetary Gear Set |
In the Box
Contents

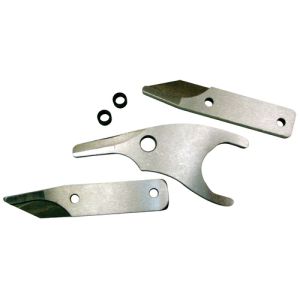

Replacement Blade Set
1/4" Air Coupler
One Hex Key
Guides & Accessories
Instructions
Click here to download product instructions PDF
Safety Information
Accessories
Application Tips
Reviews
Rated 5 out of
5
by
68 xl from
Great price
Works better than expected for 18 gauge steel
I like the way you can adjust the swiveling head for better control.
Date published: 2019-01-27
Rated 5 out of
5
by
DIYgarageGuy from
Great tool
I cut several pieces of 18 gauge right off the bat when i received these. Had no problems what so ever. Straight, smooth cuts each time. Would buy again if these ever did break.
Date published: 2016-06-02
Rated 5 out of
5
by
robert1953robert from
air shears
The only reason these people are'nt giving this product a 5******** is they are trying to cut metal,they were'nt suppose to be cutting!!!!!!! I own both, air and electric. And they are as good as button's on a shirt.
Date published: 2015-05-21
Rated 5 out of
5
by
The Sandman from
A spare set of cutter blades!
I have a couple of other Eastwood air tools and I expect to put these to work on my old 1950 Chevy truck I am restoring. They should come in handy during panel replacement and floor panel repairs as well. I hope they are ready because they have work to do!!
Date published: 2015-02-16
Rated 5 out of
5
by
Mike mechanic from
Air Shears
The shears work great and well worth the cost. The shears don't use excessive amounts of air.
Date published: 2015-01-30
Rated 5 out of
5
by
TTB4u from
Bad start, good finish
I had never used an Air Shear, so I bought one to cut some 18 gauge cold rolled steel. About one inch into the cut the blade snapped in two. I installed the second blade and it has worked perfectly. (Send me a new replacement blade)!
Date published: 2015-01-20
Questions & Answers
Will this work as a notcher making 1/4 cuts in 24G SS. I assume only the tip of the blades work. Does it curl the metal? or does it slice without width vs a saw? What else could be used to make such 1/4" notches in the edge of a sheet that are 1/4" wide
We have a video that you can watch this tool in action, go to the link and then click on the little picture under the main picture, then click the arrow and the video will play. This will give you a good look at the tool in action, and you will be able to see if this will work for your needs.
https://www.eastwood.com/air-shears.html
Date published: 2020-09-05
will this cutter cut ribbed metal roofing
I've used comparable shears to cut ribbed metal roofing on a couple of jobs and didn't have any problems. Just take your time and don't force tool.
Date published: 2019-11-30
Would this cut an 1/8" aluminum composite signboard? Its a 4x8' thin plastic panel faced on each side with thin white coated aluminum sheet...It is a light shearable product, just wondering if these jaws would accept something 1/8"?
Unfortunately due to the jaw size of this unit it would not be able to accept a material this thick.
Date published: 2019-11-01
