Item #
32220
BRAND: Astro Pneumatic
Astro Pneumatic - 13 Inch Hand Rivet Nut Kit w/ Rivet Nut Assort
13" Hand Rivet Nut Kit with Rivet Nut Assortment
13" Hand Rivet Nut Kit with Rivet Nut Assortment
Astro Pneumatic - 10-24 Mandrel for 1442 is rated
out of
5 by
16.
13" Hand Rivet Nut Kit with Rivet Nut Assortment
100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.
- • Lifetime Tech Support
Frequently Bought Together
Price for all checked items:
Product Overview:
Description
- New "Toolless Quick-Change Head" design allows for easy changing of mandrels and nose pieces by hand
- Disassembly of tool never required, unique spring loaded inner hex
- sleeve automatically locks the rotation of hand installed mandrel
- Shorter handle with double compound hinges that maximize leverage
- 6 interchangeable mandrel/nosepiece sets and 10pc rivet nuts in Metric M5, M6, & M8 and in SAE 10-24, 1/4-20, & 5/16-18
- Includes 10 pieces of each of the following rivet nuts: M5, M6, M8,10-24, 1/4-20 and 5/16-18
- Versatile and powerful hand nut/thread setting riveter, takes the hard work out of setting rivet nuts
- Ideal for working in hard-to-reach area
- Ergonomic grip for easy operation
Warranty
Manufactures Warranty
Specifications
| Nut Size | Drill Size |
| M4 | 6mm [7/32"] |
| M5 | 7mm (9/32") |
| M6 | 9mm (3/8") |
| M8 | 11mm (7/16") |
| 10-24 | 7mm (9/32") |
| 1/4-20 | 10mm (13/32") |
| 5/16-18 | 11mm (7/16") |
In the Box
Contents

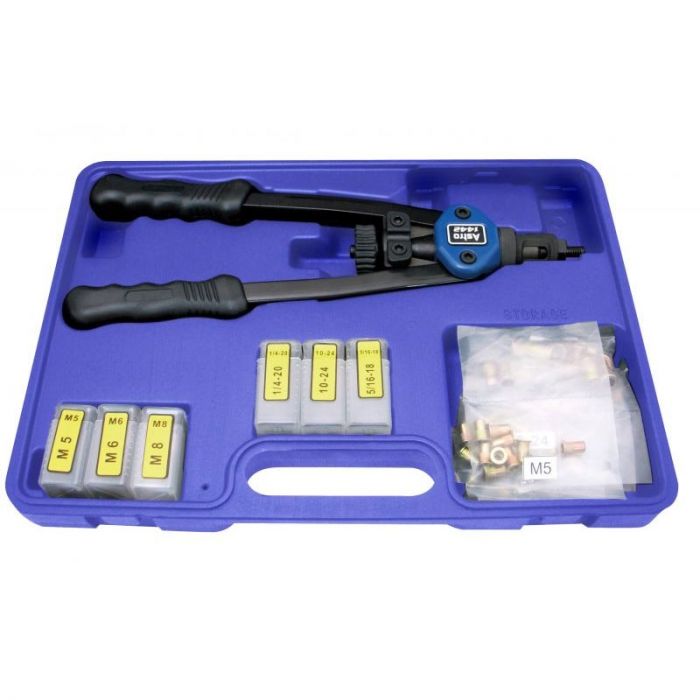

- (1) Astro Pneumatic - 13" Hand Rivet Nut Kit w/ Rivet Nut Assortment
- 6 interchangeable mandrel/nose piece sets
- 10 pieces of each of the following rivet nuts: M5, M6, M8,10-24, 1/4-20 and 5/16-18
Guides & Accessories
Instructions
Please read and fully understand the manufactures instruction manual and safety warnings before using this tool.
Safety Information
Reviews
Rated 5 out of
5
by
Anonymous from
Just what I needed.
I have only used this in 1/4 20 size so far but it works well.
Date published: 2024-02-02
Rated 5 out of
5
by
Carmine from
Working on 1956 Chevy 210 sedan
I’m working on restoring my 1956 Chevy 210 sedan.The rivet nut tool worked out great working around the dashboard and other areas that I needed to mount some control’s.Great tool to have in the shop
Date published: 2022-03-09
Rated 5 out of
5
by
Studeski from
Astro Pneumatic Rivet Kit
The last time I used something like this I worked at a car/truck dealer. Just recently I needed a tool like this. It came along just in time. Worked great
Date published: 2021-08-07
Rated 5 out of
5
by
Anonymous from
Quality product
It was just what I needed it works great would highly recommend
Date published: 2021-08-07
Rated 5 out of
5
by
Tom B from
Rivnut puller
This tool was used to replace a stripped rivnut and performed flawlessly.
Date published: 2021-07-27
Rated 5 out of
5
by
Mark from
Astro pneumatic 13 inch rivet nut kit
It’s a very well made tool. The tool-less mandrel is a time saver. My only issue with the one I bought is that it doesn’t come with a 3/8-16 insert. But I’m a hobby machinist and I’m milling one and then all will be good. ( don’t worry Eastwood people, if I brake it I understand the risk I took. )
Date published: 2021-06-18
Rated 5 out of
5
by
Mike from
Easy to use
Rugged quality, works great for my purpose, is awkward in tight places.
Date published: 2020-07-30
Rated 5 out of
5
by
Big kahuna from
Solved a real big problem for me
I am sure it has many uses but I got it for one special purpose . It replaced the terrible drilled and tap mount points on my canam skid plates .
Date published: 2019-03-16
Questions & Answers
Can you get replacement mandrel and nose pieces for the handheld Astro rivet nut tool? My 10-24 broke off on the small end and I need a replacement. Also wondering if you have the metric set upgrade and how much that is ? 7634967322 text or call
We only sell this kit as is. You would need to contact the manufacturer directly regarding this.
Date published: 2022-04-15
Like the fiberglass question... I am curious if this would work with 1/4" plywood or lauan?
There are metal fasteners designed specifically as inserts into wood. The are a cross between a rivet and a rivet nut and take a screw when installed.. They should be available in better hardware and woodworking outlets. They don't work well in panels or thin dimensional wood. Kregg has a full line of wood working fastener systems as well.
A rivet nut will work if installed in metal "behind" plywood or f - glass panels and fastened with a decorative washer and screw.
Date published: 2021-02-26
What is the thread pitch of the metric inserts. M8x ? Example m8x1.0 or m8x1.25???
Unfortunately the manufacturer doe not provide thread pitch information with their literature.
Date published: 2021-02-08
What is the thread pitch of the metric nutserts
We apologize for the confusion. 1/2" NPT defines the thread pitch in this case. It is 14 threads per inch and it is a tapered thread.
Date published: 2023-09-25
Drilling to correct diameter for the thread sert, drill to fit? Or does it need a tighter fit? If so do you have what bit size per sert I would use. TKS
I’ve found that if drilling by hand you can use a bit that’s the same diameter as the insert as the bit tends to drill slightly oversized and will allow the insert to drop in. That or go up one size in a drill index.
Date published: 2019-12-02
How would this work on the dozens of 1/4-20 nuts and bolts holding together the front clip of a 47-54 Chevy 3100?
Yes this tool/kit should certainly work well for this application in reference.
Date published: 2019-06-04
Would this work on fiberglass if you were careful and/or maybe used washers as a backup to keep from cracking.
We have not tested this tool on Fiberglass, If you were to try it on fiberglass, be very careful when pulling the handles. Best to do some practice pulls.
Date published: 2019-03-15
Are the other size dies available?
We do not have alternate sizes available at this time. We only sell this item as a whole kit.
Date published: 2019-02-24
Astro Pneumatic - 13 Inch Hand Rivet Nut Kit w/ Rivet Nut Assort
$72.99
In Stock
