Details

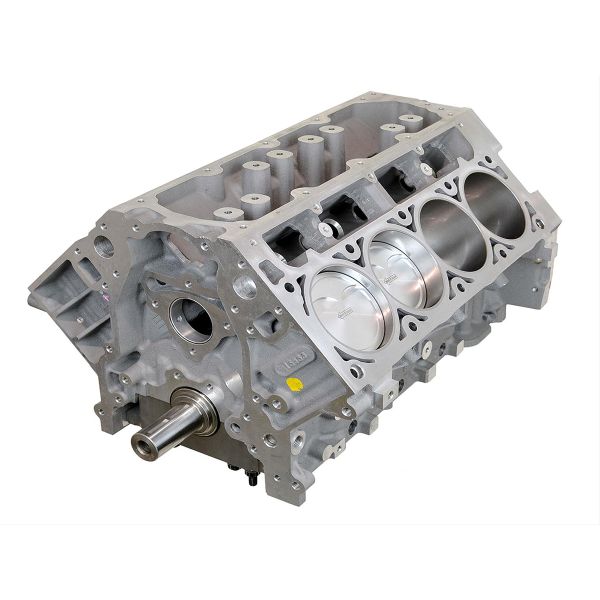

Featuring lower compression ratio, the ATK Chevy LS3 415 Short Block 29cc works great for turbochargers and superchargers. This unit is built-on GM aluminum engine blocks for lightweight durability, while the forged crankshaft, forged connecting rods and forged pistons give enough capability to deal with big power.
Engine Specifications:
- Block: New GM L92/LS3 Aluminum
- Bore/Stroke: 4.065 x 4.000
- Displacement: 415 C.I.D.
- Crankshaft: Manley 4340 Forged 4.000" Stroke Internally Balanced
- Connecting Rods: Manley 4340 Forged H Beam 6.125 ARP 8740 Bolts
- Pistons: Forged +29cc dish
- Piston Rings: Moly Rings
- Compression Ratio: 64cc=9.3:1/66cc=9.1:1/70cc=8.8:1
- Camshaft Bearings: Installed & Clocked to OEM Position
- Freeze Plugs: Brass Installed & Sealed
- Oil Galley Plugs: Installed & Sealed
Every great build needs a solid foundation! For that reason, we take the hard work out of the picture by selling short blocks that are ready for you to complete yourself. Our GM Short Blocks are most commonly packaged as the engine block assembled with Pistons, Piston Rings and Crankshaft installed.
ATK specializes in muscle. With the highest quality internal parts and Dyno Proven combinations of every engine built, ATK is able to add the most bang for your buck and back it up with an industry leading warranty.
Contents
ATK High Performance Chevy LS3 415 Short Blocks
Specifications
Engine Information:
• Oil: 5W30
• Harmonic Balancer/Damper: Internally Balanced
• Flex Plate / Flywheel: Internally Balanced
Accessories
Recommended Components:
• Balancer: Internal balance
• Flexplate/Flywheel: Internal balance
• Head Gasket: .051" thickness or per application
• Oil: 10W40 Non synthetic for first 3000 miles
• Oil Filter: Wix or K&N per application
• Oil Pump: Melling #689-10296 with high pressure spring
Disclaimer: The parts listed are ATK’s recommendations of parts to be used to obtain our power figures listed. Power figures can vary based on parts used by the end user. It is the customer’s responsibility to verify components will work for their application. Some modifications to the vehicle may be required using these and or other aftermarket parts.
Shipping Instructions
Shipping is free and lift gate will be provided.
