ATK Ford 302CI Engine 300HP Fox Pan Complete HP06C
HP06C ATK Ford 302CI Fox Pan Complete Engine 300HP
HP06C ATK Ford 302CI Fox Pan Complete Engine 300HP
HP06C ATK Ford 302CI Fox Pan Complete Engine 300HP
100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.
- • 90 Day Returns
- • Lifetime Tech Support
Product Overview:
Description
Revive your old ride with this ATK HP06C Ford 302CI Fox Pan Complete Engine. It is designed as a replacement for Ford 302 engine with extra boost than the original. While delivering 300 horsepower and 336 ft.lb torque, this engine still maintains excellent driving manners. It is suitable for everyday drivers.
Engine Specifications:
- Horsepower: 300
- Torque: 336 lbs./ft.
- Block: Seasoned OE Roller Block
- Bore/Stroke: 4.040 x 3.000
- Displacement: 302 C.I.D.
- Crankshaft: OE Ford Cast 3.000" Stroke 1 Piece Seal Externally Balanced 50oz.
- Connecting Rods: OE Steel Rod 5.090" Stock Bolts
- Pistons: Hypereutectic
- Piston Rings: Moly Rings
- Compression Ratio: 9.1:1 Compression
- Camshaft: Hydraulic Roller
- Camshaft Specifications: 219/219 @050 .498in/.498ex 112LSA
- Camshaft Bearings: Installed & Clocked to OEM Position
- Cylinder Heads: OE E5TE/E7TE 62cc 1.77/1.46
- Freeze Plugs: Brass Installed & Sealed
- Rocker Arms: Stamped Steel 1.6 Ratio
- Oil Galley Plugs: Installed & Sealed
- Oil Pan: OE 5qt. Dual Sump Fox body
- Weight: 465

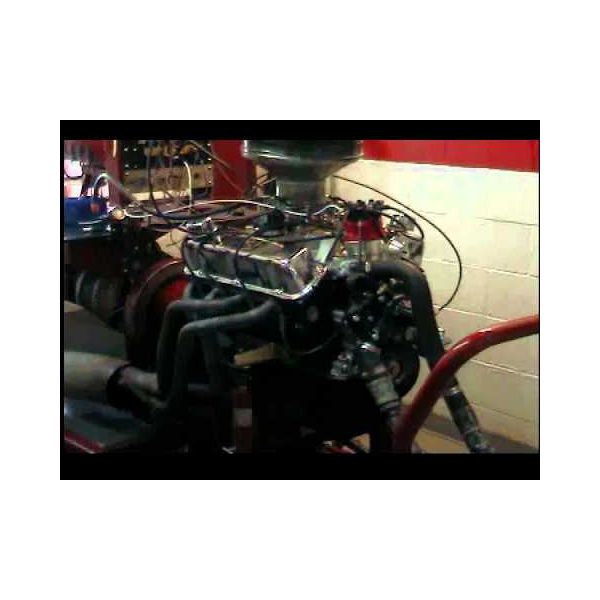

ATK specializes in muscle. With the highest quality internal parts and Dyno Proven combinations of every engine built, ATK is able to add the most bang for your buck and back it up with an industry leading warranty.
Don't forget the engine paint!
Warranty
Specifications
• Oil: 10W30
• Oil Filter: Wix or K&N Recommended Per Your Application
• Fuel Delivery: Edelbrock Carburetor 650cfm #1806
• Intake Manifold: Weiand Stealth Dual Plane #8020
• Fuel Injectors: Will not work with ford factory speed density EFI or F-series trucks and vans
• Spark Plugs: Autolite #24
• Spark Plug Gap: .035"
• Harmonic Balancer/Damper: Professional Products Externally Balanced 50oz Dual Bolt Pattern #80007
• Flex Plate / Flywheel: Externally Balanced 50oz 164 Tooth
• Timing: 34-36 Degrees Total
• Water Pump: Reverse Rotation Left Hand Inlet
• Firing Order: 1 3 7 2 6 5 4 8
• Exhuast: 1 5/8 Headers
• Fuel Pump: Holley 110GPH Mechanical #12-289-11
• Fuel: 91+ Octane
• Ignition: Pro Billet with Melonized gear
• Automatic Transmission Stall Converter: 2400-2800
Disclaimer: The parts listed are ATK’s recommendations of parts to be used to obtain our power figures listed. Power figures can vary based on parts used by the end user. It is the customer’s responsibility to verify components will work for their application. Some modifications to the vehicle may be required using these and or other aftermarket parts.
In the Box
Contents
Guides & Accessories
Reviews
Questions & Answers
Many of the photos show non Dual Sump Fox body oil pans. Is this an option? I would like to put one of these in a 1966 Mustang with a 4 speed top loader.
We apologize for the confusion and inconvenience. We would have to advise you to speak directly to the manufacturer as these items drop ship. They can be reached by calling 866-721-2315.
Date published: 2021-08-12
