BRAND: ATK Engines
ATK Ford 302CI Engine 365HP Frnt Sump Complete HP78C
HP78C ATK Ford 302CI Front Sump Complete Engine 365HP Price Includes $510 Core Charge
HP78C ATK Ford 302CI Front Sump Complete Engine 365HP Price Includes $510 Core Charge
HP78C ATK Ford 302CI Front Sump Complete Engine 365HP Price Includes $510 Core Charge
100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.
- • Lifetime Tech Support
Product Overview:
Description

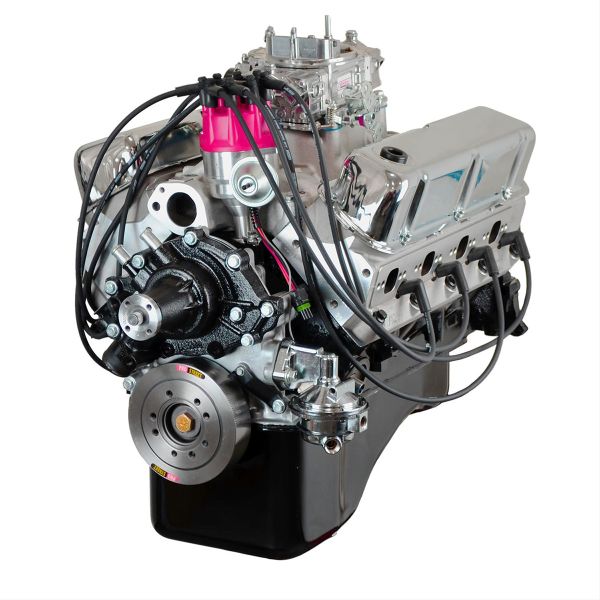

Enjoy a well-balanced, all-around performance with this ATK HP78C Ford 302CI Engine 365HP Front Sump Complete. Hand assembled by experts it has top-notch components to deliver a consistent output for years to come. While providing huge 365 horsepower and 370 ft.lb torque, this crate engine produces optimal vacuum to work with power brakes.
Engine Specifications:
- Horsepower: 365
- Torque: 370 lbs./ft.
- Block: Seasoned OE Roller Block
- Bore/Stroke: 4.040 x 3.000
- Displacement: 302 C.I.D.
- Crankshaft: OE Ford Cast 3.000" Stroke 1 Piece Seal Externally Balanced 50oz.
- Connecting Rods: OE Steel Rod 5.400" Stock Bolts
- Pistons: Hypereutectic Flat Top
- Piston Rings: Moly Rings
- Compression Ratio: 9.5:1 Compression
- Camshaft: Hydraulic Roller
- Camshaft Specifications: 220/224 @050 .512in/.512ex 112LSA
- Camshaft Bearings: Installed & Clocked to OEM Position
- Cylinder Heads: Dart Pro 1 aluminum 58cc/170cc 2.02/1.60
- Freeze Plugs: Brass Installed & Sealed
- Rocker Arms: Billet Aluminum 1.6 Full Roller
- Oil Galley Plugs: Installed & Sealed
- Oil Pan: OE 5qt. Front Sump
- Weight: 430
ATK specializes in muscle. With the highest quality internal parts and Dyno Proven combinations of every engine built, ATK is able to add the most bang for your buck and back it up with an industry leading warranty.
Don't forget the engine paint!
Warranty
Specifications
• Oil: 10W30
• Oil Filter: Wix or K&N Recommended Per Your Application
• Fuel Delivery: Quick Fuel Carburetor 680cfm #HR-680-VS
• Intake Manifold: Edelbrock Performer RPM Dual Plane #7121
• Spark Plugs: Autolite #3923
• Spark Plug Gap: .035"
• Harmonic Balancer/Damper: Professional Products Externally Balanced 50oz Dual Bolt Pattern #80007
• Flex Plate / Flywheel: Externally Balanced 50oz 157 Tooth
• Timing: 34-36 Degrees Total
• Water Pump: Standard Rotation Right Hand Inlet
• Firing Order: 1 3 7 2 6 5 4 8
• Exhuast: 1 5/8 Headers
• Fuel Pump: Holley 110GPH Mechanical #12-289-11
• Fuel: 91+ Octane
• Ignition: Pro Billet with Melonized gear
• Automatic Transmission Stall Converter: 2500-2800
Disclaimer: The parts listed are ATK’s recommendations of parts to be used to obtain our power figures listed. Power figures can vary based on parts used by the end user. It is the customer’s responsibility to verify components will work for their application. Some modifications to the vehicle may be required using these and or other aftermarket parts.
Shipping & Handling
In the Box
Contents
Guides & Accessories
Reviews
Questions & Answers
What is best auto trans and rear gear to run with this engine
This engine will work with a wide variety of rear-end gears and transmissions. The recommended stall speed for your torque converter is 2500-2800 RPM. Other variables like tire size and vehicle weight as well as intended use will affect transmission selection and axle ratio.
Date published: 2020-01-16
Can I order this engine with forged pistons and rods? If so what is the price difference in the price?
We can not offer different variations of what is listed here on our site. These items all drop ship directly fro the manufacturer as is.
Date published: 2019-09-21
