Item #
22553
BRAND: ATK Engines

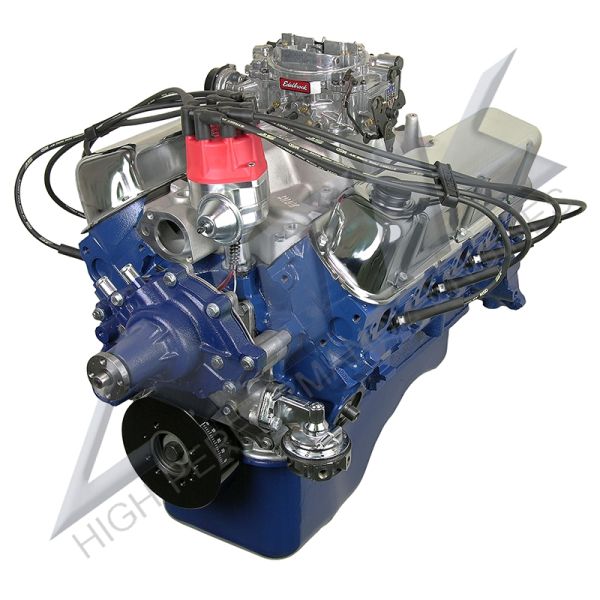

ATK Ford 351W Engine 300HP Trk Pan Complete HP09C
HP09C ATK Ford 351W Trk Pan Complete Engine 300HP Price Includes $370 Core Charge
HP09C ATK Ford 351W Trk Pan Complete Engine 300HP Price Includes $370 Core Charge
HP09C ATK Ford 351W Trk Pan Complete Engine 300HP Price Includes $370 Core Charge
Manufacturer Warranty Included
100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.
- • 90 Day Returns
- • Lifetime Tech Support
Product Overview:
Description
The ATK HP09C Ford 351W 300HP Trk Pan Complete Engine is the best boost your car needs. It adds up to 300 horsepower and 377 ft.lb torque for first-rate driving experience. This crate engine is hand assembled by experts to provide a reliable and consistent performance for years to come.
Engine Specifications:
- Horsepower: 300
- Torque: 377 lbs./ft.
- Block: Seasoned OE Roller Block
- Bore/Stroke: up to 4.060 x 3.500
- Displacement: 351 C.I.D.
- Crankshaft: OE Ford Cast 3.500" Stroke 1 Piece Seal Externally Balanced 28oz
- Connecting Rods: OE Steel 5.955" Stock Bolts
- Pistons: Hypereutectic Dished
- Piston Rings: Moly Rings
- Compression Ratio: 9.5:1 Compression
- Camshaft: Hydraulic Roller
- Camshaft Specifications: 220/224 @050 .512in/.512ex 112LSA
- Camshaft Bearings: Installed & Clocked to OEM Position
- Cylinder Heads: OE E5TE/E7TE 62cc 1.77/1.46
- Freeze Plugs: Brass Installed & Sealed
- Rocker Arms: Stamped Steel 1.6 Ratio
- Oil Galley Plugs: Installed & Sealed
- Oil Pan: OE 5qt. Rear Sump
- Weight: 465
ATK specializes in muscle. With the highest quality internal parts and Dyno Proven combinations of every engine built, ATK is able to add the most bang for your buck and back it up with an industry leading warranty.
Don't forget the engine paint!
Warranty
Specifications
• Oil: 10W30
• Oil Filter: Wix or K&N Recommended Per Your Application
• Fuel Delivery: Quick Fuel Carburetor 680cfm #HR-680-VS
• Intake Manifold: Weiand Stealth Dual Plane #8023
• Spark Plugs: Autolite #24
• Spark Plug Gap: .035"
• Harmonic Balancer/Damper: Professional Products Externally Balanced 28oz Dual bolt pattern #80006
• Flex Plate / Flywheel: Externally Balanced 28oz 164 Tooth
• Timing: 34-36 Degrees Total
• Water Pump: Reverse Rotation Left Hand Inlet
• Firing Order: 1 3 7 2 6 5 4 8
• Exhuast: 1 5/8 Headers
• Fuel Pump: Holley 110GPH Mechanical #12-289-11
• Fuel: 91+ Octane
• Ignition: Pro Billet with Melonized gear
• Automatic Transmission Stall Converter: 1500-2500
Disclaimer: The parts listed are ATK’s recommendations of parts to be used to obtain our power figures listed. Power figures can vary based on parts used by the end user. It is the customer’s responsibility to verify components will work for their application. Some modifications to the vehicle may be required using these and or other aftermarket parts.
Shipping & Handling
In the Box
Contents
Guides & Accessories
Reviews
Questions & Answers
I have a '69 Bronco, originally I6, and I know it will already be extensive swap. When ordering, can I specify certain parts on the complete build; such as: having a rear sump pan with rear oil pickup?
These items arrive as is and no adjustments can be made.
Date published: 2021-06-18
Will this button up to my 1977 f-150? It previously had the 4.9 300. 4speed manual. If so awesome if not could you point me in the right direction!
Yes, but you will need small block V8 motor mounts for the F-series pickup. You will also need a clutch and flywheel for the V8. Could be a bit of a challenge but totally do-able.
Date published: 2020-05-05
will it fit a 1974 ford f250 that has a 360 in it now
Yes but you will have to change the transmission to a Windsor Bolt pattern bellhousing. And you will need small block motor mounts.
Date published: 2020-05-04
I am converting a 1982 f 150 300 6 cylinder to your 351W engine HP09C. Will this bolt up to my 4 speed bell housing. What other issues will I run into. Thanks you. Can I pick this engine up at one of your stores?
The Ford 300 6 cylinder utilizes the same bell housing bolt pattern as this 351 W as well as the 302 Windsor. Unfortunately, these can not be ordered in stores and are not available for store pickups. They drop ship to you directly from the manufacturer- ATK.
Date published: 2020-01-07
What are the heads? 2v 4v open or closed. OEM? Are the valve seats hardened?
The Cylinder Heads are OE E5TE/E7TE 62cc 1.77/1.46. This engine is designed to run on 91+ octane pump gas so it has induction-hardened seats
Date published: 2019-12-15
Will it work in a 91 F150 four-wheel drive
Yes, this will physically fit but it is intended for non-emissions applications. It will not work with the factory fuel injection systems.
Date published: 2019-12-15
will fit on 1967 thunderbirth
This has a truck oil pan and will not replace the FE style engines found in 67-71 thunderbirds without modifications.
Date published: 2019-12-03
will it fit in a 2000 ford ranger with the 3.0 v6
These are not designed for use in emissions controlled vehicles.
Date published: 2019-10-24
ATK Ford 351W Engine 300HP Trk Pan Complete HP09C
$6,232.55
In Stock
