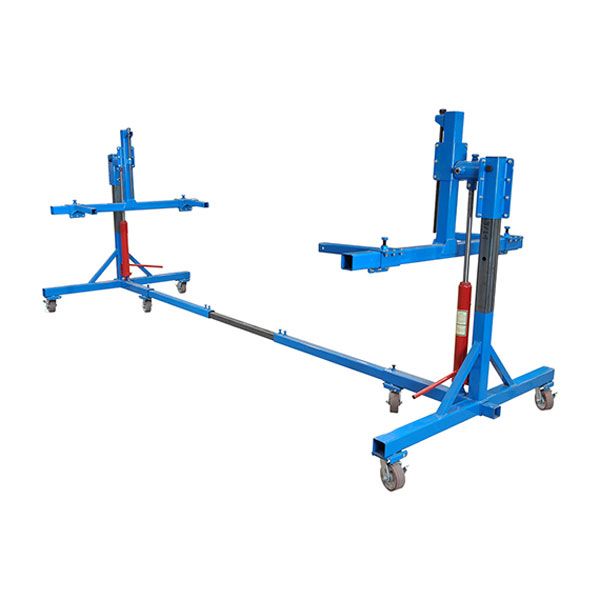

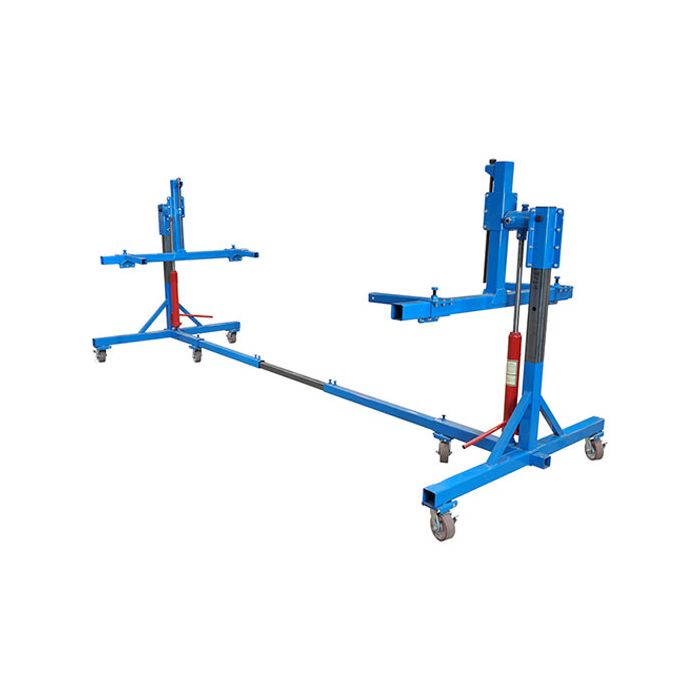

Autotwirler Rotisserie PRO Model Powder Coated

Item #12368

Our most advanced model; easiest
way to rotate a body or frame

Qty:

Quantity:

Only $1,899.99

Add to Wishlist

• This item ships directly from the manufacturer

• Expected delivery time is 1 – 2 weeks

• Not available in Eastwood Retail Stores

• Order may not be changed or canceled

Details

Ultimate PRO-Model Rotisserie rotates a body/frame 360 degrees, and locks it in at any position...hydraulic height adjustment, infinite balancing system, and sealed ball-bearing pivot make it easy to rotate the vehicle, even at maximum weight capacity

Two 3-ton, 20" ram hydraulic cylinders for height adjustment at the pivot point 2 bi-directional Balancer Kits with acme-threaded rod, drilled and tapped solid steel blocks
Six easy-rolling 5" polyurethane-over-cast-iron casters (4 locking)
21" mounting height (14" with casters removed)
Blue powdercoat finish
3,000-lb. maximum capacity

Our most advanced rotisserie gives professionals the easiest way to rotate a body or frame for working in those hard-to-reach areas when doing a full frame-off restoration. Autotwirler PRO Model Rotisserie includes a sealed ball-bearing pivot point, with 2 hydraulic cylinders for height adjustment at the pivot point while mounting or working on your project. Also includes our unique balancer kits for raising and lowering the center of gravity. (No manual lifting involved.)

More info...

About Autotwirler Rotisserie PRO Model Powder Coated

Eastwood's PRO Rotisserie gives you easier access to every part of the body/frame for welding, rust repair and other serious restoration jobs.

Sometimes you find your car becomes "top heavy". With a competitor's unit, you might need to get friends to help turn it back over. But with the Eastwood PRO, a simple ratchet on the balancer rod will push the car back upside down to re-balance the car.

Telescoping center bar extends to a full 19-1/2-foot length. Four 16" mounting arms (additional brackets may be required). Casters rated 880 lbs. each. Requires a minimum 7'6" ceiling height, and 67"-wide clearance for base. 63" W x 57" H, 550 lbs. Also available in unfinished bare steel (model #12370). 1-year mfr's. warranty on the casters and jack, 5 years on the steel. Made in USA.

Works for most vehicle types, but some additional mounting hardware may be required; ask one of our phone reps for requirements for your specific vehicle.

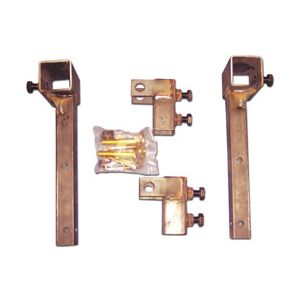

May require one of the following Mounting Bracket Kits: 13645 – Mustang Kit (fits PRO Model); 13646 – Camaro Kit (fits PRO Model); 13647 – Mopar Front Brackets; 13648 – Uni-Plate Brackets; 12178 – Camaro Brackets (Rear Only); 12181 – U-Weld-It Leaf Spring Brackets; 12176 – U-Weld-It Valance Brackets; 12182 – U-Weld-It Uni-Plate Brackets

Application

Restoration, welding, painting, abrasive blasting, soda blasting

Accessories

Mounting Bracket Kits (see "More Info" tab)
12177, 13656, 13657 Door Bars
12011, 12012, 12746, 12740 Welders
50095 Soda Blaster
12096, 12097 Gel Rust Dissolver
51483Z, 51676, 51677 Rust Converter
50544ZP, 50545ZP 2K Ceramic Chassis Black

Product Sheet

Click here for product Specification sheet

Safety

Always make sure the vehicle is secure and balanced when using a rotisserie. Always wear eye, skin and respiratory protection. Read and understand instruction manual before using, since serious vehicle damage or bodily injury could occur.

Shipping

Liftgate Service: Is highly recommended, or sometimes required, for delivery of this product. If you have a safe method of unloading without a liftgate, you will have the opportunity to remove liftgate service at checkout. Please note that the truck driver will NOT assist in unloading the product for you. We are not responsible for personal injury or damage to the product resulting from unloading the merchandise without the benefit of a liftgate, delivery dock or forklift.

Eastwood Offers Free Lifetime Technical Support

Click here for product SDS information

Attention California Residents - Proposition 65
