Baileigh Manually Powered Ring and Angle Roll Bending Machine R-M7 1006861
Radius Bender R-M7
Radius Bender R-M7
Radius Bender R-M7
100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.
- • Lifetime Tech Support
Frequently Bought Together
Price for all checked items:
Product Overview:
Description

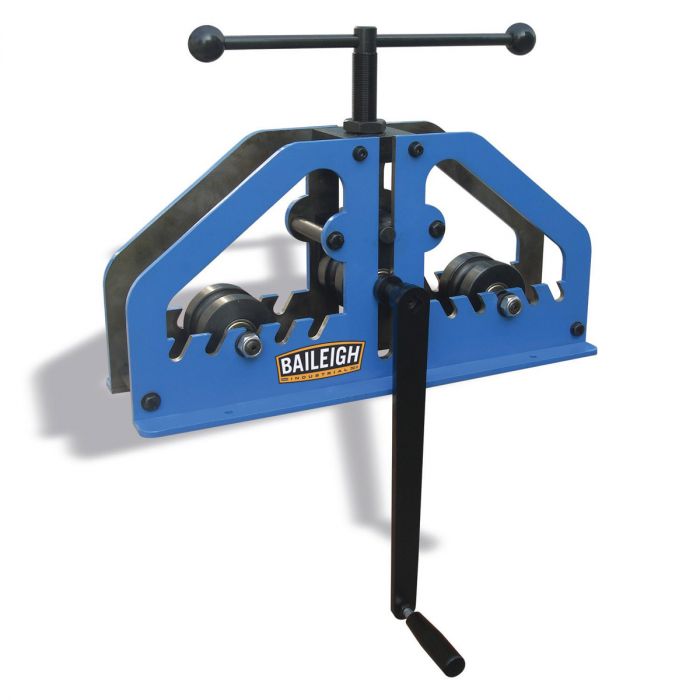

The portable R-M7 is built from quality steel (unlike most competing roll benders in this price range) and can bend tube and pipe to large radii.
- Bends 1.5" pipe to a minimum radius of 20" and 2" round tube to a minimum radius of 60"
- Manual crank makes quick work of large radius bends
- Shafts turn on precision ball bearings for the smoothest possible operation
- Many different tooling options enable the machine to tackle a wide range of projects
- Takes up little space and will easily fit into even the smallest shops
- Includes a set of 1-1/2" OD tube dies
- This tubing roller is covered with a 1-year parts warranty
Specifications
| Roll Adjustment: | Manual |
| Pipe Capacity: | Size: 1.5" / Min. Radius: 20" |
| Round Tube Capacity: | Size: 2" / Min. Radius: 60" |
| Shaft Center Distance: | Adj. (lower rolls) |
| Rectangle Capacity: | Size: 1 x 2" / Min. Radius.: 10" |
| Pinch: | Single |
| Capacity Flat Bar: | Size: 1.25" / Min. Radius.: 10" |
| Power: | Manual |
| Shipping Weight: | 83lbs |
| Material Type: | All Specs based on 60,000 PSI (42 Kg/mm 2) Tensile Strength – Mild Steel. |
| *Optional Tooling: | Some applications may require optional tooling. Please contact a Technical Sales Specialist at Baileigh Industrial with specific application details. |
| Shipping Dimensions (Inches): | 26x10x19 |
In the Box
Guides & Accessories
Application Tips
Baileigh Manually Powered Ring and Angle Roll Bending Machine. 1-1/2" Schedule 40 Maximum Capacity R-M7 1006861
Reviews
Questions & Answers
Baileigh Manually Powered Ring and Angle Roll Bending Machine R-M7 1006861
$959.00
In Stock
