Item # 59353 BRAND: Belaire

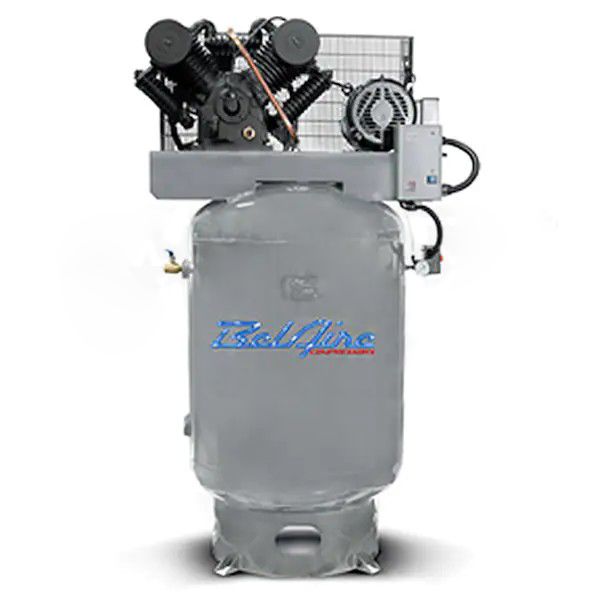

Belaire 10 HP 120 Gallon Air Compressor 6312V4

Iron Series 10-HP 120-Gallon Two-Stage Cast Iron Air Compressor (460V 3-Phase)
Iron Series 10-HP 120-Gallon Two-Stage Cast Iron Air Compressor (460V 3-Phase)
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 7.88ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
$4,714.99
Loading...
Loading...
Save for Later
Iron Series 10-HP 120-Gallon Two-Stage Cast Iron Air Compressor (460V 3-Phase)

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • 90 Day Returns
  • • Lifetime Tech Support
Belaire 10 HP 120 Gallon Air Compressor 6312V4

Product Overview:

Description

Solid Cast Iron 2 Stage Pump

  • Delivers 35 CFM at 100 PSI; 32 CFM at 175 PSI
  • Rugged components provide long-lasting dependability

Automotive-Style Rod Bearings & Wrist Pins

  • Smoother running & more durable

Start / Stop Pressure Switch Controls

  • Save time & energy

ASME Tank & Safety Valve

  • 120 gallon air reserve for big jobs and multiple users
  • 3/4" air outlet; 175 PSI maximum pressure

2 Year Bumper To Bumper Factory Warranty

  • No additional purchase necessary

Fully Enclosed Belt Guard

  • Protects the belt & the operator

Manual Air Tank Drain

  • Makes tank simple to maintain

460 Volt 3-Phase Power

  • Easily wires into your 460V 3-phase system
  • CPXHT50 dryer recommended (not included)

Specifications

Motor
Voltage: 460 Volt AC
Phase: 3-Phase
Magnetic Starter: Yes
Amp Draw: Consult Certified Electrician
Recommended Breaker: Consult Certified Electrician
Engine
HP: 10
Pump
CFM: 35
CFM Rated @: 100 PSI
Pump Material: Solid Cast Iron
Max PSI: 175 PSI
Oil Sight Glass: Yes
Pump Type: Two-Stage
After Cooler: Yes
Pump Drive: Belt Drive
Oil Type: Oil Lubricated
Oil System: Splash Lubricated
Pump Low Oil Shut-off: No
Tank
Tank Size: 120 Gallons
Tank Outlet: 3/4 Inch
Electronic Drain Valve: No
Tank Orientation: Vertical
Accessories
Pressure Gauge: Yes
Air Dryer: No
Overview
Weight: 890 Pounds
Certification: ASME
Product Length: 42 Inches
Product Width: 30 Inches
Product Height: 74 Inches
Power Type: Electric
