BendPak 6,000 Lb. Capacity Rolling Bridge Jack / Easy-Roll Wheels RJ6W 5175248

Product Overview:

Description

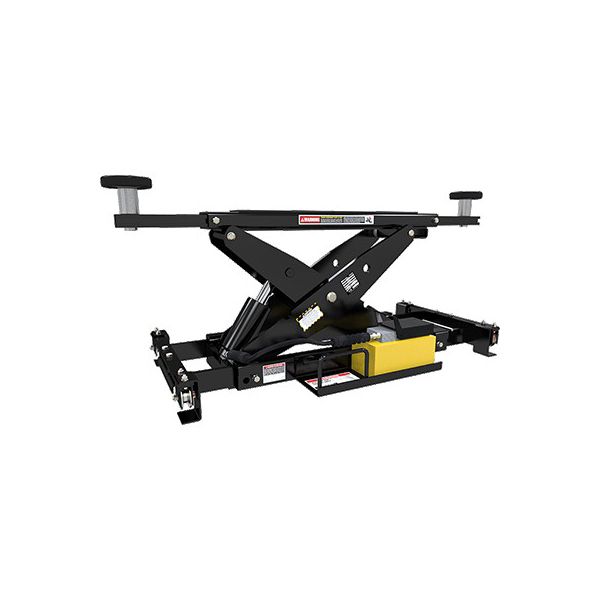

This 6,000-lb. capacity rolling bridge jack is specifically designed for use with a full-sized scissor lift or four-post lift. The RJ6W provides you with the ability and added versatility to raise the wheels off the runways of your car lift.

Lift 6,000 lbs. for Full Wheel Service Capability

An individual jack is over-engineered and capable of holding the weight of an entire vehicle, so the two jacks you use to hoist your car are incredibly safe and may even have an overall lift capacity that’s over twice the weight of the vehicle itself. We do this so there’s never any question as to whether or not our four-post bridge jacks are safe. However, it is still important that you never overload a single jack unit past its listed lift capacity.

Easy-Roll Wheels Come Standard

The RJ?6W rolling bridge comes standard with easy-roll wheels that fit onto the runway channels on standard four-post lift models 1?2,000-lbs lifting capacity or greater and provide effortless gliding along the runways for easy positioning and adjustability. BendPak rolling bridge jack rollers are made of hardened stainless-steel and zinc plated for maximum durability.

Rubber contact pads

Durable rubber contact pads come standard with every rolling bridge jack. These pads adjust to engage the frame of your vehicle directly at the manufacturer-recommended lift point. Frame cradle pads, sold separately, are a necessary accessory for many wide-bodied frames (e.g., trucks, SUVs).

Stackable adapters

Some undercarriages require longer-reach adapters, so we manufacture stackable adapters to maximize the arm reach on our four-post rolling bridge jacks. They accommodate virtually every vehicle on the market, so it’s just a matter of knowing the weight of your vehicle and selecting a jack(s) with an appropriate lift capacity.

High-pressure hydraulic power unit

Welded to the side of each four-post rolling bridge jack, you’ll find a high-pressure commercial-grade air-hydraulic pump that requires 125 psi and 10-20 CFM. It’s activated when you press a convenient foot pedal attached to the unit. In seconds flat your vehicle will be lifted to the desired height.

Three lock levels

Each four-post rolling bridge jack can be raised to three different heights, so whatever your needs are, you can fine-tune the height of your jack to meet them. The locks engage automatically as the jack scissor arms raise, and they release simultaneously when as the arms are lowered.

Features:

  • 6,000-lb. lifting capacity
  • Easy-Roll Wheels
  • Rubber contact pads
  • Stackable adapters
  • High-pressure hydraulic power unit
  • Optional air-line kit

Specifications

Lifting Capacity: 6,000 lbs. (2,721 kg)
Suitable Lift Model(s): XR-12000 Series
Min. Drive-Over Height*
Pad Only: 1.25" (32 mm)
Pad + 2.75" Adapter: 4" (102 mm)
Pad + 5.5" Adapter: 6.75" (171 mm)
Max. Lifting Height*
Pad Only: 12" (305 mm)
Pad + 2.75" Adapter: 14.75" (375 mm)
Pad + 5.5" Adapter: 17.5" (445 mm)
Reach
Support Base Width: 36.25" (921 mm) - 47.25" (1,200 mm)
Max. Arm Reach: 56" (1,422 mm)
Min. Arm Reach: 42" (1,067 mm)
Time to Full Rise: 55 seconds
Pump: Air/Hydraulic
Air Pressure: 125 PSI (10-25 CFM)
Max. Operating Hydraulic Pressure: 3,370 PSI
Power Requirement: None
Shipping Weight: 436 lbs. (193 kg)
Shipping Dimensions: 42" x 24" x 14" (1,066 mm x 609 mm x 355 mm)

In the Box

Guides & Accessories

Instructions

User Manual

Sales Sheet
