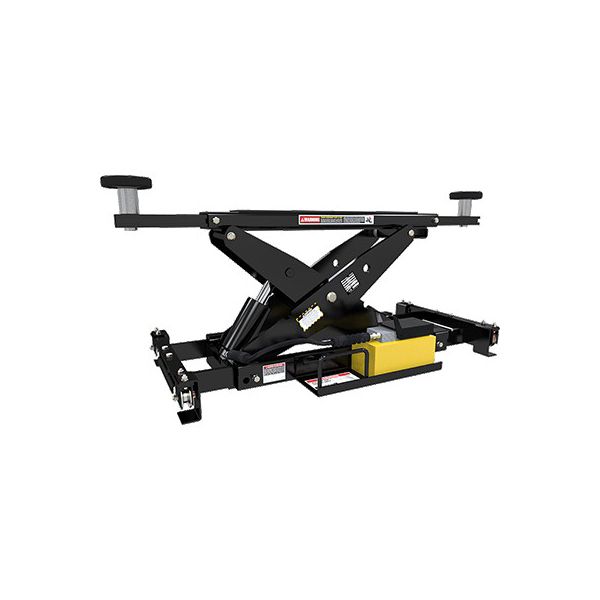

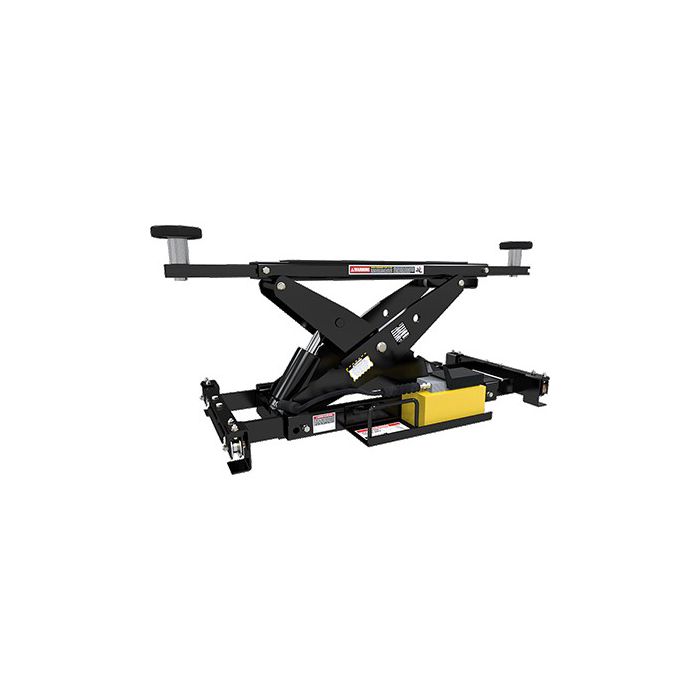

BendPak 7,000 Lb. Capacity Rolling Bridge Jack / Easy-Roll Wheels RJ7W 5175249

This 7,000-lb. capacity rolling bridge jack is made for an HDS-14 series four-post lift. Each rolling jack comes complete with three safety-lock positions and stackable pad adapters to provide added clearance when needed.

Lift 7,000 lbs. for Full Wheel Service Capability

The HDS-14 series four-post car lift is one of our most popular units for lifting medium-duty vehicles, as well as low-stance sports cars. Its extended approach ramps make it easy to safely engage your vehicle’s wheels, but what do you do when it’s time for a tire swap? Unless you want to expand your capabilities with a two-post lift, a simple pair of RJ7W rolling bridge jacks is necessary to lift the vehicle. (Each jack lifts half the vehicle frame.)

Easy-Roll Wheels Come Standard

The RJ?7W rolling bridge comes standard with easy-roll wheels that fit onto the runway channels on standard four-post lift models 14,000-lbs lifting capacity or greater and provide effortless gliding along the runways for easy positioning and adjustability. BendPak rolling bridge jack rollers are made of hardened stainless-steel and zinc plated for maximum durability.

Rubber contact pads

BendPak rubber contact pads are included with every rolling bridge jack we sell. The RJ7W pads engage the lift points of large vehicle chassis with ease. We recommend purchasing the optional frame cradle pads for larger trucks and SUVs, as well.

Stackable adapters

Because different suspension rigs and vehicle bodies sit at different heights above the ground, the RJ7W rubber contact pads come with stackable adapters. This lets you reach the lift points without sacrificing how much rise you get from the jack. The adapters work on every vehicle type; all you need to know is whether the RJ7W is the right jack for what you want to lift.

High-pressure hydraulic power unit

A single, air-hydraulic pump is fitted to the side of the RJ7W rolling bridge jack. Your car lift has its own electric-hydraulic system that runs independent of your jack’s. After connecting the air line to the jack (needs 125 PSI and 10-20 CFM), an easy-to-use foot pedal activates the jack.

Three lock levels

For your convenience, BendPak rolling bridge jacks can be lifted to three different positions. They lock automatically as the jack rises and release together as the jack descends. Your car lift operations are separate from those of the bridge jack.
