BendPak HD-973PX-G - Tri-Level Parking Lift 9000 lb. & 7000 lb. Capacity 5175268

BendPak HD-973PX-G - Tri-Level Parking Lift - Special Order - Extended Length - High Lift - Galvanized - 9,000 lb. & 7,000 lb. Capacity 5175268
BendPak HD-973PX-G - Tri-Level Parking Lift - Special Order - Extended Length - High Lift - Galvanized - 9,000 lb. & 7,000 lb. Capacity 5175268
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 28.71ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
$26,295.00
Loading...
Loading...
Save for Later
BendPak HD-973PX-G - Tri-Level Parking Lift - Special Order - Extended Length - High Lift - Galvanized - 9,000 lb. & 7,000 lb. Capacity 5175268

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • • Lifetime Tech Support
BendPak HD-973PX-G - Tri-Level Parking Lift 9000 lb. & 7000 lb. Capacity 5175268

Product Overview:

Description

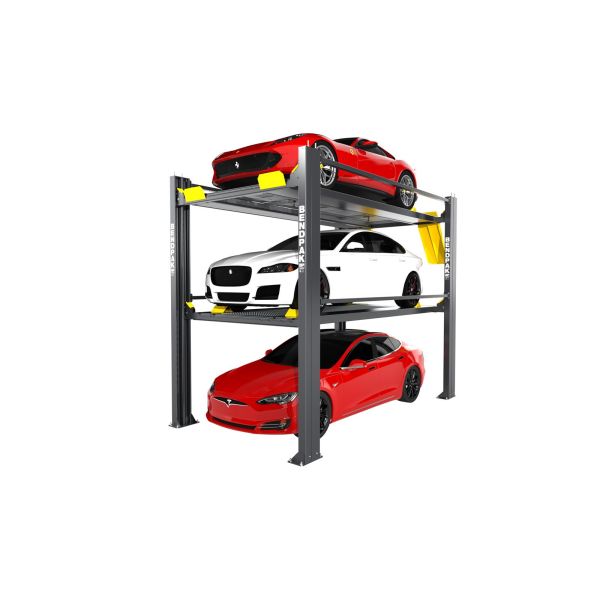

The BendPak Tri-Level Parking Lift with 9,000 lb. and 7,000 lb. capacity is constructed of galvanized steel with powder coated finished for exceptional strength and durability. It features extra height and width design to provide increased space for stacking taller and longer vehicles.

Features:

  • 9,000 lb. maximum capacity for center platform and 7,000 lb. maximum capacity for top platform
  • Ideal for parking, service and storage
  • Galvanized steet construction with powder coat finish for improved strength and durability
  • Suitable for cars, trucks, and SUVs
  • Full-length aluminum deck platforms
  • Heavy-duty 3/8 in. lifting cable
  • Electric-hydraulic power system for reliable performance
  • Automatic safety locks

Warranty

Warranty

Specifications

Style
Style: Multi-Level Parking Lift
Top Platform
Lifting Capacity* 7,000 lbs. (3,175 kg)
*Max Capacity / Front Axle 3,500 lbs. (1,588 kg)
*Max Capacity / Rear Axle 3,500 lbs. (1,588 kg)
A - Overall Width 112'' (2,849 mm)
B - Overall Length 252.25'' (6,409 mm)
C - Height of Columns 173'' (4,398 mm)
D - Drive-thru Clearance 87'' (2,201 mm)
E - Maximum Rise 151.5'' (3,849 mm)
F - Maximum Lifting Height 156.5'' (3,972 mm)
G - Distance Between Columns 100'' (2,546 mm)
H - Runway Width 19'' (482 mm)
I - Width Between Runways 44'' (1,121 mm)
J - Runway Length 199'' (5,056 mm)
Min. Wheelbase @ rated Capacity 1 140'' (3,556 mm)
Min. Wheelbase @ 75% Capacity 1 120'' (3,084 mm)
Min. Wheelbase @ 50% Capacity 1 100'' (2,540 mm)
Min. Wheelbase @ 25% Capacity 1 80'' (2,032 mm)
Locking Positions 34
Locking Spacing Every 4'' (102 mm)
Lifting Time to Max. Rise 90 seconds
Motor 220 VAC / 60 Hz / 1 Ph
Bottom Platform
Lifting Capacity* 9,000 lbs. (4,082 kg)
*Max Capacity / Front Axle 4,500 lbs. (2,041 kg)
*Max Capacity / Rear Axle 4,500 lbs. (2,041 kg)
A - Overall Width 112'' (2,849 mm)
B - Overall Length 252.25'' (6,409 mm)
C - Height of Columns 245'' (6,227 mm)
D - Drive-thru Clearance 90.25'' (2,292 mm)
E - Maximum Rise 82.25'' (2,088 mm)
F - Maximum Lifting Height 87.25'' (2,211 mm)
G - Distance Between Columns 100'' (2,546 mm)
H - Runway Width 19'' (482 mm)
I - Width Between Runways 44'' (1,121 mm)
J - Runway Length 186.75'' (4,744 mm)
Min. Wheelbase @ rated Capacity 1 135'' (3,429 mm)
Min. Wheelbase @ 75% Capacity 1 115'' (2,921 mm)
Min. Wheelbase @ 50% Capacity 1 95'' (2,413 mm)
Min. Wheelbase @ 25% Capacity 1 75'' (1,905 mm)
Locking Positions 16
Locking Spacing Every 4'' (102 mm)
Lifting Time to Max. Rise 50 seconds
Motor 220 VAC / 60 Hz / 1 Ph

Shipping & Handling

  • Delivery Time: This item ships directly from the manufacturer - Please allow 2-3 weeks for delivery time
  • Residential Delivery: This item may only be shipped to a business address and a forklift must be available to unload.
  • Delivery: Will be delivered truck and will require a forklift to unload. You must have a forklift to unload from truck.

https://www.bendpak.com/BendPak-Products-Flatbed-Exclusive.pdf

https://www.bendpak.com/BendPak-Delivery-Information-Form.pdf

Fork Lift Required for Delivery

In the Box

Guides & Accessories

Instructions

<p><a href="https://www.bendpak.com/HD-973P-Parking-Lift-Manual-5175238-BendPak.pdf" target="_blank"><i><b>User Manual for Part # 5175268</b></i></a></p>
