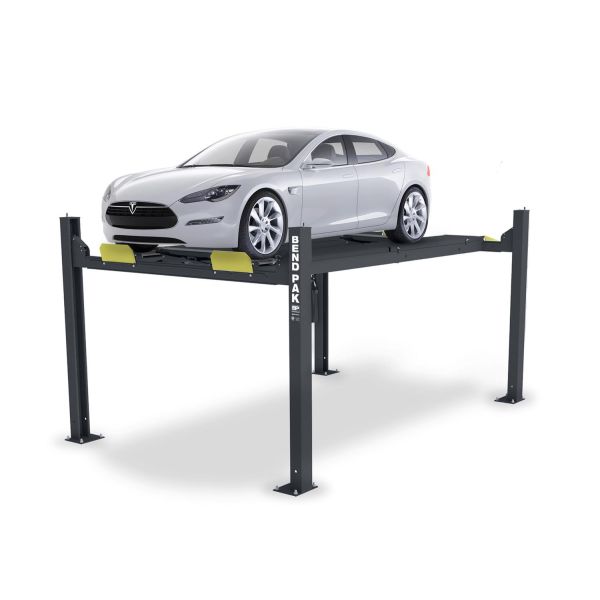

BendPak HD-9AE - Four-Post Alignment Lift - w/ Turn Plates & Slip Plates - 9,000 lb. Capacity 5175820
Loading...
  • 90-Day Returns
  • Technical Support
  • In Stock
BendPak HD-9AE - Four-Post Alignment Lift - w/ Turn Plates & Slip Plates - 9,000 lb. Capacity 5175820

Description

The Best 9,000-lb. Alignment Lift Money Can Buy

Every BendPak alignment lift offers the same quality, warranty and built-in safety features as every other car lift we make. Wheel service is where many shops make the big bucks, so we’re conscious of the fact that these lifts need to be dependable and efficient to keep you satisfied. The high capacity on this alignment lift is also great for light-duty trucks and SUVs.

Slip plates
Free-floating alignments are made easy-to-handle to help you get to work without delay and generate faster turnaround. Multi-caster slip plates are positioned in the rear, with turn plates established in the front. This allows for the most precise alignments in the business.

Turn plate
Corrosion-resistant galvanized turn plates are easily positioned using BendPak’s turn plate pockets. These dual recessed turn plate pockets get your turn plates in the precise spot they need to be to best facilitate vehicle positioning. This provides more clearance for your equipment installations.

Dual-hub cable sheaves
BendPak alignment lifts have 10.5” diameter cable sheaves within the runway and cross tubes and 2.25” diameter sheave axles. This is essentially the same cable-routing system found on our full-size car lifts, which means our exceptionally over-engineered alignment lifts are prepared to service your shop with hardly any maintenance for years to come.

Heavy-duty aircraft cable
1/2” diameter 6 x 25 aircraft-quality stainless-steel lifting cables are routed internally through the post structures. Alignment lifts are some of the busiest lifts you have, so we’ve made ours totally resistant to chemicals, weather, oil, etc. We hope you use them all day, every day to increase both your bottom line and your shop’s efficiency.

Adjustable height locking positions
Lift your turn plates above eye level or take them down a few notches to help roll your wheels or set your Ranger 3D alignment pads. Whatever height helps you get the job done, BendPak offers maximum versatility. Not to mention, each height position automatically locks in places and releases with the push of a button.

Built-in lubrication
Grease fittings are standard on all BendPak alignment lifts, car lifts and parking lifts. Their job is to keep the cable sheaves greased and the cables running smoothly. There’s little to no maintenance required on these fittings over—what we hope are—many, many years of successful wheel alignment.

Flow restrictor
Hydraulic flow dividers are crucial safety features, and we wouldn’t dream of leaving them off any hydraulic lift we manufacture. The safety assurance they offer is the total confidence that even in a worst-case scenario, your alignment lift is incapable of crashing to the floor. Flow dividers also guarantee level ascents and descents with each use.

Features:

  • 9,000-lb. maximum lifting capacity
  • CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
  • Multi-caster slip plates
  • Dual radius plate positions
  • Heavy-duty stainless steel lifting cables
  • Dual-hub cable sheaves
  • Grease nipples on every sheave and sheave axle
  • Single hydraulic cylinder
  • Integrated hydraulic flow restrictor
  • Durable powder-coat finish
  • Spring-loaded safety locks
  • Simple push-button lock release
  • Aircraft-quality stainless steel and aluminum pneumatic cylinders
  • Secondary lock system
  • Fully enclosed cables, airlines, safety latches and sheaves
  • Multiple adjustable height locking positions
  • Non-skid runways

Specifications

<table class=''specs''> <tbody> <tr> <td><strong>Capacity</strong></td> </tr> <tr> <td>Lifting Capacity*</td> <td>9,000 lbs. (4,082 kg)</td> </tr> <tr> <td>*Max Capacity / Front Axle</td> <td>4,500 lbs. (2,041 kg)</td> </tr> <tr> <td>*Max Capacity / Rear Axle</td> <td>4,500 lbs. (2,041 kg)</td> </tr> <tr> <td><strong>Rise</strong></td> </tr> <tr> <td>A - Min. Runway Height:</td> <td>6.5'' (165 mm)</td> </tr> <tr> <td>B - Max. Rise:</td> <td>70'' (1,778 mm)</td> </tr> <tr> <td>C - Max. Lifting Height:</td> <td>76.5'' (1,943 mm)</td> </tr> <tr> <td>Time to Full Rise:</td> <td>60 seconds</td> </tr> <tr> <td><strong>Outside Dimensions</strong></td> </tr> <tr> <td>D - Overall Width:</td> <td>127'' (3,226 mm)</td> </tr> <tr> <td>E - Outside Length:</td> <td>198'' (5,029 mm)</td> </tr> <tr> <td>F - Overall Length:</td> <td>224'' (5,690 mm)</td> </tr> <tr> <td>G - Height of Columns:</td> <td>88'' (2,235 mm)</td> </tr> <tr> <td><strong>Inside Dimensions</strong></td> </tr> <tr> <td>H - Width Between Columns</td> <td>117'' (2,972 mm)</td> </tr> <tr> <td>I - Drive-Thru Clearance</td> <td>103.5'' (2,629 mm)</td> </tr> <tr> <td><strong>Runways</strong></td> </tr> <tr> <td>J - Runway Width</td> <td>19'' (483 mm)</td> </tr> <tr> <td>K - Length of Runways</td> <td>188'' (4,775 mm)</td> </tr> <tr> <td>L - Width Between Runways</td> <td>40'' (1,016 mm)</td> </tr> <tr> <td><strong>Alignment</strong></td> </tr> <tr> <td>M - Min. 4-Wheel Alignment:</td> <td>71'' (1,803 mm)</td> </tr> <tr> <td>N - Max. 4-Wheel Alignment:</td> <td>145'' (3,683 mm)</td> </tr> <tr> <td>O - Max. 2-Wheel Alignment:</td> <td>160'' (4,064 mm)</td> </tr> <tr> <td><strong>Minimum Wheelbase</strong></td> </tr> <tr> <td>Rated Capacity:</td> <td>135'' (3,429 mm)</td> </tr> <tr> <td>75% Capacity:</td> <td>115'' (2,921 mm)</td> </tr> <tr> <td>50% Capacity:</td> <td>95'' (2,413 mm)</td> </tr> <tr> <td>25% Capacity:</td> <td>80'' (2,032 mm)</td> </tr> <tr> <td><strong>Locking</strong></td> </tr> <tr> <td>Locking Positions:</td> <td>12</td> </tr> <tr> <td>Lock Spacing:</td> <td>4</td> </tr> <tr> <td><strong>Power Unit</strong></td> </tr> <tr> <td>Motor:</td> <td>220 VAC / 60 Hz / 1 Ph</td> </tr> <tr> <td>Noise:</td> <td>45 dB</td> </tr> </tbody> </table>

Warranty

<p><a href="https://www.bendpak.com/Two-Post-Four-Post-Lift-Warranty-BendPak.pdf" target="_blank"><i><b>Warranty</b></i></a></p>

Instructions

<p><a href="https://www.bendpak.com/HD-9AE-Four-Post-Alignment-Lift-Manual-5900175-BendPak.pdf" target="_blank"><i><b>User Manual for Part # 32714</b></i></a></p>
