Item # 32699 BRAND: BendPak

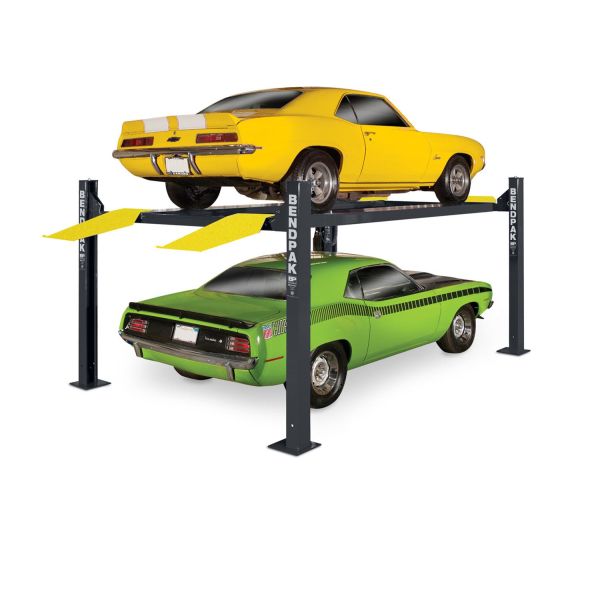

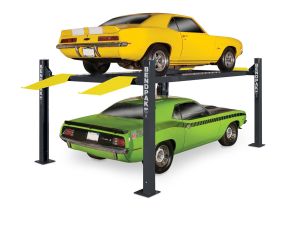

BendPak HD-9XL - Four-Post - Extended Length - 9000 lb. Capacity 5175859

BendPak HD-9XL - Four-Post - Extended Length - 9,000 lb. Capacity 5175859
BendPak HD-9XL - Four-Post - Extended Length - 9,000 lb. Capacity 5175859
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 71.08ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
$5,115.00
Loading...
Loading...
Save for Later
BendPak HD-9XL - Four-Post - Extended Length - 9,000 lb. Capacity 5175859
  • 90-Day Returns
  • Technical Support
BendPak HD-9XL - Four-Post - Extended Length - 9000 lb. Capacity 5175859

Description

Long Wheelbases Finally Have a Lift of Their Own

The HD-9XL four-post lift features that accommodate longer wheelbases. Car collectors who like those long, old Chevys can rejoice: this lift is for them. There are likewise plenty of other long-wheelbase vehicles that will sit more comfortably on this lift. Garages need a little more space to accommodate it, but not by much.

Dual-hub cable sheaves
Wider, sturdier cable sheaves reduce friction against the cables and increase the lifespan of the parking lift. These rugged sheaves are more expensive to manufacture, but it’s worth every penny, for us and for you, because better sheaves protect both lifts and lives.

Multi-level locking positions
When you’re preparing to park on a car lift, it’s important to understand the height you need to lock the runways at. The heights of the stacked vehicles, as well as your ceiling height, need to be factored in. Your BendPak has lock positions every few inches.

Heavy-duty aircraft cable
Powerful, aircraft-quality cables each have a 14,000-lb. capacity. So, four of them combined can lift 640% more than the capacity of the car lift.

Electric-hydraulic power system
BendPak offers fully integrated electric-hydraulic power units that are always placed within easy reach on one of the parking lift columns. The units never need maintenance and practically take care of themselves for the entire duration of ownership.

Large base plates
Safety systems are worthless without the right structural supports. We’re not afraid of a little overkill here and there, so our 10” x 12” base plates are made so stable, you don’t even need to bolt the lift down. This is especially true if you plan on using the caster kit with your car lift.

Caster kit
Add wheels to your four-post lift if you want to adjust where you park. Since the HD-9XL is also a maintenance lift, the casters let you reposition the lift for purposes other than parking. Roll it across most flat, smooth surfaces.

Integrated design
Each BendPak parking lift holds its components within its posts. This maintains a cleaner appearance and prevents accidental damage and wear.

Low-deck runways
When you park on top, you don’t want to climb up Mt. Olympus. That’s why BendPak runways are low-profile and accommodate virtually any vehicle type.

Longer approach ramps
Extending the approach ramps makes loading low ground-clearance vehicles faster and safer.

Automatic safety locks
The HD-9XL four-post lift features spring-loaded locks that click into place as the lift rises. They lock automatically every few inches, so each time you hear one engage the lock, you know even a catastrophic hydraulic failure will not ruin your day (or life).

Features:

  • 9,000-lb. maximum lifting capacity
  • CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN-1493
  • Wide drive-thru with standard lift height and long runways
  • Electric-hydraulic power system
  • Internal "Anti-Sway" slider blocks in each column
  • Features heavy-duty 3/8" aircraft cable
  • Multi-position safety locks in each column
  • Ramps feature non-skid surface
  • Runways include rail-kit for optional accessories
  • Single hydraulic cylinder underneath runway
  • Oversized self-lubricating cable rollers
  • Rugged 1.25" roller axles
  • Adjustable lock ladders
  • Push-button pneumatic safety release
  • Optional 4,500-lb. capacity jack available (Model RBJ4500)

Specifications

<table class=''specs''> <tbody> <tr> <td><strong>Style</strong></td> </tr> <tr> <td>Style:</td> <td>Four-Post Parking Lift</td> </tr> <tr> <td><strong>Capacity</strong></td> </tr> <tr> <td>Lifting Capacity*</td> <td>9,000 lbs. (4,082 kg)</td> </tr> <tr> <td>A - Min. Runway Height:</td> <td>4.5'' (114 mm)</td> </tr> <tr> <td>B - Max. Rise:</td> <td>70'' (1,778 mm)</td> </tr> <tr> <td>C - Max. Lifting Height:</td> <td>74.5'' (1,892 mm)</td> </tr> <tr> <td>D - Overall Width:</td> <td>110.25'' (2,800 mm)</td> </tr> <tr> <td>E - Outside Length:</td> <td>198'' (5,029 mm)</td> </tr> <tr> <td>F - Overall Length:</td> <td>224'' (5,690 mm)</td> </tr> <tr> <td>G - Height of Columns:</td> <td>88'' (2,235 mm)</td> </tr> <tr> <td>H - Width Between Columns:</td> <td>100.25'' (2,555 mm)</td> </tr> <tr> <td>I - Drive-Thru Clearance</td> <td>86.5'' (2,197 mm)</td> </tr> <tr> <td>J - Runway Width</td> <td>19'' (483 mm)</td> </tr> <tr> <td>K - Length of Runways</td> <td>188'' (4,775 mm)</td> </tr> <tr> <td>L - Width Between Runways</td> <td>37.5'' (952 mm) or 44-3/8'' (1,127 mm)</td> </tr> <tr> <td>M - Runway Centerline</td> <td>56.5'' (1,435 mm) or 63-3/8'' (1,610 mm)</td> </tr> <tr> <td>N - Outside Edge of Runways</td> <td>75.5'' (1,918 mm) or 82-3/8'' (2,092 mm)</td> </tr> <tr> <td>Time to Full Rise:</td> <td>55 seconds</td> </tr> <tr> <td>Locking Positions:</td> <td>15</td> </tr> <tr> <td>Lock Spacing:</td> <td>Every 4'' (102 mm)</td> </tr> <tr> <td>Motor:</td> <td>220 VAC / 60 Hz / 1 Ph</td> </tr> </tbody> </table>

Warranty

<p><a href="https://www.bendpak.com/Two-Post-Four-Post-Lift-Warranty-BendPak.pdf" target="_blank"><i><b>Warranty</b></i></a></p>

Shipping

  • Shipping: Shipping is included in the price of this item.
  • Delivery Time: This item ships directly from the manufacturer - Please allow 2-3 weeks for delivery time
  • Residential Delivery: This item may only be shipped to a business address and a forklift must be available to unload.
  • Delivery: Will be delivered truck and will require a forklift to unload. You must have a forklift to unload from truck.

https://www.bendpak.com/BendPak-Products-Flatbed-Exclusive.pdf

https://www.bendpak.com/BendPak-Delivery-Information-Form.pdf

Fork Lift Required for Delivery

Instructions

<p><a href="https://www.bendpak.com/HD-9-Four-Post-Lift-Manual-5900123-BendPak.pdf" target="_blank"><i><b>User Manual for Part # 32699</b></i></a></p>
