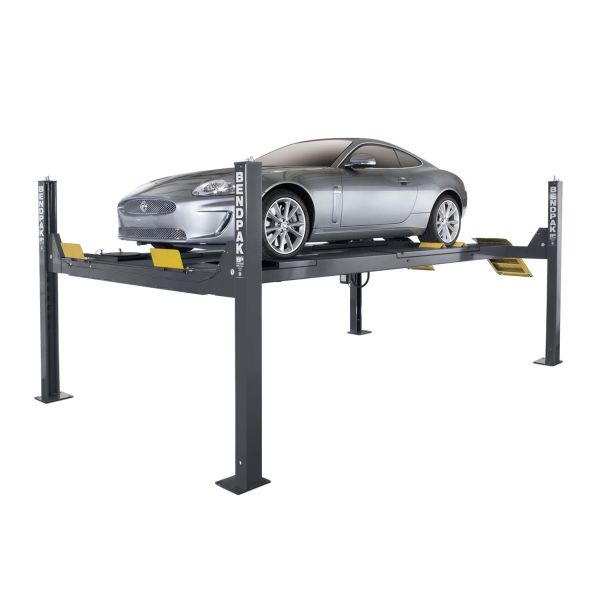

BendPak HDS-14LSX - Four-Post Alignment Lift - Extended Length - w/ Turn Plates & Slip Plates - 14,000 lb. Capacity 5175171

BendPak HDS-14LSX - Four-Post Alignment Lift - Extended Length - w/ Turn Plates & Slip Plates - 14,000 lb. Capacity 5175171
BendPak HDS-14LSX - Four-Post Alignment Lift - Extended Length - w/ Turn Plates & Slip Plates - 14,000 lb. Capacity 5175171
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 68.91ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
Retrieving Price...
Reg. $8,210.00
$8,210.00
Retrieving Price...
Reg. $8,210.00
$8,210.00
Loading...
Save for Later
Save for Later
Loading...
Out Of Stock. Due back September 21
BendPak HDS-14LSX - Four-Post Alignment Lift - Extended Length - w/ Turn Plates & Slip Plates - 14,000 lb. Capacity 5175171
  • 90-Day Returns
  • Technical Support
BendPak HDS-14LSX - Four-Post Alignment Lift - Extended Length - w/ Turn Plates & Slip Plates - 14,000 lb. Capacity 5175171

Description

Alignment Lift System Offers 14,000 lbs. of Pure Lifting

This is the sturdy beast you want as the backbone of your shop, especially if you service large, low ground-clearance vehicles. Our alignment system features front turn plates and rear slip plates built right into the runways. The wheels always respond to your adjustments with no resistance or hassle. We call it “free-floating.” You’ll find it unbelievably easy.

Slip plates
Multi-caster slip plates in the back and turn plates in the front allow for extremely precise, free-floating alignment.

Turn plates
Dual, recessed turn plate pockets allow you to position the corrosion-resistant, galvanized turn plates in the location best suited for individual vehicle positioning. These turn plates provide more clearance for equipment installations.

Dual-hub cable sheaves
This BendPak alignment lift comes standard with robust 10.5” diameter cable sheaves within the runway and cross tubes and 2.25” diameter sheave axles that are equally durable. Both contribute to the longevity and low-maintenance cost of owning and operating your lift.

Heavy-duty aircraft cable
A 1/2” diameter 6 x 25 aircraft-quality stainless-steel lifting cable runs through each of the four columns. Designed for non-stop use and totally resistant to rubbing and other abrasions (e.g., weather, chemicals, hydraulic oil).

Adjustable height locking positions
Get your alignment lift to just the right height. No need to reach or bend for the turn plates, as every few inches, each post column features a lock position for your convenience.

Built-in lubrication
Grease fittings are included on every BendPak lift, so you can focus on the alignment of your wheels without worrying about the lubrication of your cable sheaves. BendPak makes it easy to keep an eye on your grease nipples, which only require periodic maintenance. Just peek inside the structure before, during or after using your alignment lift to see how the fittings are doing.

Flow restrictor
In the extremely unlikely event of a hose rupture, BendPak’s unique hydraulic flow divider provides a safe, even descent, thus keeping your alignment lift structure safe and ready to go after you address the situation. We highly doubt you will ever encounter this situation with your lift.

Spring-loaded safety locks
As the alignment lift rises to your preferred service level, springs engage the locks into place at each ladder position. The adjustable nature of the spring-loaded, multi-locking structure offers you the comfort of knowing that you’re safe to lift, even if there’s a slight slope in your garage.

Features:

  • 14,000 pound lifting capacity
  • CE Approved and Certified. Meets or exceeds the standards prescribed by European Standard EN 1493
  • Two runway lengths to choose
  • Heavy‐duty turn plates and integrated rear slip‐plates included
  • Multi‐position turn plate pockets
  • Automatic leveling system
  • Multiple auto-leveling locking positions
  • Runways include rail‐kit for optional accessories
  • Electric / hydraulic power system
  • Single hydraulic cylinder mounted underneath runway
  • Fully enclosed lifting cables, safety locks, and sheaves
  • Internal "Anti-Sway" slider blocks in each column
  • Features oversize sheaves and heavy‐duty 1/2” aircraft cable
  • Rugged 1‐3/8" roller axles and oversize self‐lubricating cable sheaves
  • Multi‐position safety locks in each column with push‐button safety release
  • Optional 7,000 pound capacity bridge jacks available (Model RBJ7000)

Specifications

<table class=''specs''> <tbody> <tr> <td><strong>Capacity</strong></td> </tr> <tr> <td>Lifting Capacity*</td> <td>14,000 lbs. (6,350 kg)</td> </tr> <tr> <td>*Max Capacity / Front Axle</td> <td>7,000 lbs. (3,175 kg)</td> </tr> <tr> <td>*Max Capacity / Rear Axle</td> <td>7,000 lbs. (3,175 kg)</td> </tr> <tr> <td><strong>Rise</strong></td> </tr> <tr> <td>A - Min. Runway Height:</td> <td>7.625'' (194 mm)</td> </tr> <tr> <td>B - Max. Rise:</td> <td>70'' (1,778 mm)</td> </tr> <tr> <td>C - Max. Lifting Height:</td> <td>77.625'' (1,972 mm)</td> </tr> <tr> <td>Time to Full Rise:</td> <td>60 seconds</td> </tr> <tr> <td><strong>Outside Dimensions</strong></td> </tr> <tr> <td>D - Overall Width:</td> <td>130'' (3,302 mm)</td> </tr> <tr> <td>E - Outside Length:</td> <td>213'' (5,410 mm)</td> </tr> <tr> <td>F - Overall Length:</td> <td>241'' (6,121 mm)</td> </tr> <tr> <td>G - Height of Columns:</td> <td>95'' (2,413 mm)</td> </tr> <tr> <td><strong>Inside Dimensions</strong></td> </tr> <tr> <td>H - Width Between Columns</td> <td>120'' (3,048 mm)</td> </tr> <tr> <td>I - Drive-Thru Clearance</td> <td>98'' (2,489 mm)</td> </tr> <tr> <td><strong>Runways</strong></td> </tr> <tr> <td>J - Runway Width</td> <td>20'' (508 mm)</td> </tr> <tr> <td>K - Length of Runways</td> <td>199'' (5,055 mm)</td> </tr> <tr> <td>L - Width Between Runways</td> <td>37.5'' (953 mm) or 51'' (1,295 mm)</td> </tr> <tr> <td><strong>Alignment</strong></td> </tr> <tr> <td>M - Min. 4-Wheel Alignment:</td> <td>89'' (2,261 mm)</td> </tr> <tr> <td>N - Max. 4-Wheel Alignment:</td> <td>156'' (3,962 mm)</td> </tr> <tr> <td>O - Max. 2-Wheel Alignment:</td> <td>182'' (4,623 mm)</td> </tr> <tr> <td><strong>Minimum Wheelbase</strong></td> </tr> <tr> <td>Rated Capacity:</td> <td>140'' (3,556 mm)</td> </tr> <tr> <td>75% Capacity:</td> <td>120'' (3,048 mm)</td> </tr> <tr> <td>50% Capacity:</td> <td>100'' (2,540 mm)</td> </tr> <tr> <td>25% Capacity:</td> <td>80'' (2,032 mm)</td> </tr> <tr> <td><strong>Locking</strong></td> </tr> <tr> <td>Locking Positions:</td> <td>13</td> </tr> <tr> <td>Lock Spacing:</td> <td>4</td> </tr> <tr> <td><strong>Power Unit</strong></td> </tr> <tr> <td>Motor:</td> <td>220 VAC / 60 Hz / 1 Ph</td> </tr> <tr> <td>Noise:</td> <td>45 dB</td> </tr> </tbody> </table>

Warranty

<p><a href="https://www.bendpak.com/Two-Post-Four-Post-Lift-Warranty-BendPak.pdf" target="_blank"><i><b>Warranty</b></i></a></p>

Instructions

<p><a href="https://www.bendpak.com/HDS-14LSX-14LSXE-Alignment-Lift-Manual-5900162-BendPak.pdf" target="_blank"><i><b>User Manual for Part # 32713</b></i></a></p>
