Item # 32712 BRAND: BendPak

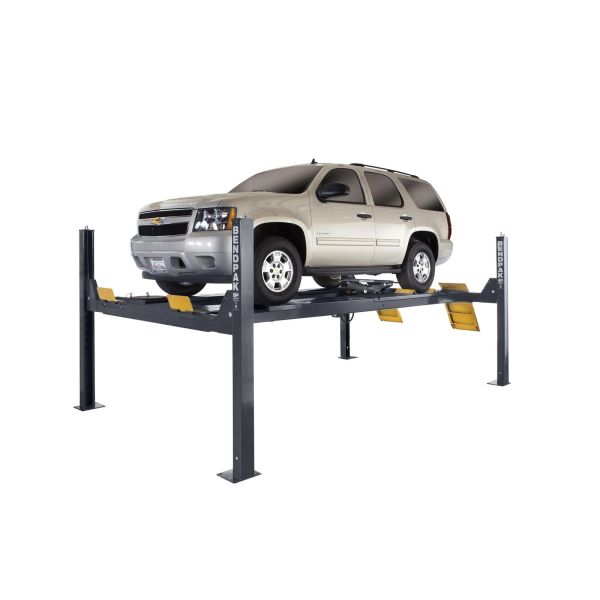

BendPak HDS-14LSXE - Four-Post Alignment Lift - Limo Extended Length - w/ Turn Plates & Slip Plates - 14000 lb. Capacity 5175172

BendPak HDS-14LSXE - Four-Post Alignment Lift - Limo Extended Length - w/ Turn Plates & Slip Plates - 14,000 lb. Capacity 5175172
BendPak HDS-14LSXE - Four-Post Alignment Lift - Limo Extended Length - w/ Turn Plates & Slip Plates - 14,000 lb. Capacity 5175172
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 57.54ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
$10,845.00
Loading...
Loading...
Save for Later
BendPak HDS-14LSXE - Four-Post Alignment Lift - Limo Extended Length - w/ Turn Plates & Slip Plates - 14,000 lb. Capacity 5175172
  • 90-Day Returns
  • Technical Support
BendPak HDS-14LSXE - Four-Post Alignment Lift - Limo Extended Length - w/ Turn Plates & Slip Plates - 14000 lb. Capacity 5175172

Description

Extended-Length Alignment Lift Offers 14,000 lbs. of Power
This model is essential for hundreds, if not thousands, of shops across the country. Busy bays are going to service a variety of vehicles, and depending where you work, you're likely to get some exceptionally big vehicles in need of alignment services. This model all but guarantees you'll be ready to handle anything. With a 14,000-lb. capacity, the HDS-14SLXE lifts virtually all residential vehicles, from sedans to heavy-duty pick-up trucks to municipal vehicles and farming equipment.

Slip plates
Turn plates in the front and multi-caster slip plates in the back allow for perfectly precise, free-floating alignments.

Deluxe Turnplates
Aluminum-alloy construction turn plates are easily positioned using BendPak’s turn plate pockets. Larger and more robust than our previous slip-plate design, they're also lighter in construction and feature dual "popsicle gap stops" for your convenience. Angled steel lock pins conveniently hold the plate in place when you want to use your machine strictly as a maintenance or storage lift.

Dual-hub cable sheaves
To increase longevity, ensure low cost of ownership and keep your purchase low-maintenance over time, we use the biggest and best sheaves throughout the lift. Massive 10.5” diameter cable sheaves are held within the runway cross tubes, outfitted with 2.25” diameter sheave axles that are equally durable.

Heavy-duty aircraft cable
These cables are meant to be used continuously for years on end without issue. They're extremely resistant to rubbing and other abrasions (e.g., weather, chemicals, hydraulic oil). A 1/2” diameter 6 x 25 aircraft-quality stainless-steel lifting cable runs through each column.

Adjustable height locking positions
No need to reach or bend for the turn plates. Every few inches, a convenient built-in safety lock will let the runways auto-engage into the post. All locks engage simultaneously as the runways evenly ascend the columns.

Built-in lubrication
Grease fittings make it easy to focus on the alignment of your wheels without worrying about the constant lubrication of the sheaves.

Flow restrictor
You'll probably never experience a hose rupture, but we have you covered just in case. BendPak's unique hydraulic flow divider provides a smooth descent, making your alignment lift structure safe to operate at all times.

Spring-loaded safety locks
As the alignment lift runways rise to your preferred service level, springs "snap" and hold the locks into place at each ladder position. The spring-loaded, multi-locking devices are adjustable. The design also compensates for slight slopes in your garage.

Features:

  • 14,000-lb. lifting capacity
  • CE Approved and Certified. Meets or exceeds the standards prescribed by European
  • Standard EN 1493.
  • Two runway lengths to choose
  • Heavy‐duty turn plates and integrated rear slip‐plates included
  • Multi‐position turn plate pockets
  • Automatic leveling system
  • Runways include rail‐kit for optional accessories
  • Electric/hydraulic power system
  • Single hydraulic cylinder mounted underneath runway
  • Internal “Anti-Sway” slider blocks in each column
  • Features oversize sheaves and heavy‐duty 1/2” aircraft cable
  • Rugged 1‐3/8” roller axles and oversize self‐lubricating cable sheaves
  • Multi‐position safety locks in each column with push‐button safety release
  • Runways adjust for different tread widths and feature non‐skid surface
  • Optional 7,000 pound capacity bridge jacks available (Model RBJ7000)

Specifications

<table class=''specs''> <tbody> <tr> <td><strong>Capacity</strong></td> </tr> <tr> <td>Lifting Capacity*</td> <td>14,000 lbs. (6,350 kg)</td> </tr> <tr> <td>*Max Capacity / Front Axle</td> <td>7,000 lbs. (3,175 kg)</td> </tr> <tr> <td>*Max Capacity / Rear Axle</td> <td>7,000 lbs. (3,175 kg)</td> </tr> <tr> <td><strong>Rise</strong></td> </tr> <tr> <td>A - Min. Runway Height:</td> <td>7.625'' (194 mm)</td> </tr> <tr> <td>B - Max. Rise:</td> <td>70'' (1,778 mm)</td> </tr> <tr> <td>C - Max. Lifting Height:</td> <td>77.625'' (1,972 mm)</td> </tr> <tr> <td>Time to Full Rise:</td> <td>60 seconds</td> </tr> <tr> <td><strong>Outside Dimensions</strong></td> </tr> <tr> <td>D - Overall Width:</td> <td>130'' (3,302 mm)</td> </tr> <tr> <td>E - Outside Length:</td> <td>243'' (6,172 mm)</td> </tr> <tr> <td>F - Overall Length:</td> <td>271'' (6,883 mm)</td> </tr> <tr> <td>G - Height of Columns:</td> <td>93'' (2,362 mm)</td> </tr> <tr> <td><strong>Inside Dimensions</strong></td> </tr> <tr> <td>H - Width Between Columns</td> <td>120'' (3,048 mm)</td> </tr> <tr> <td>I - Drive-Thru Clearance</td> <td>98'' (2,489 mm)</td> </tr> <tr> <td><strong>Runways</strong></td> </tr> <tr> <td>J - Runway Width</td> <td>20'' (508 mm)</td> </tr> <tr> <td>K - Length of Runways</td> <td>229'' (5,817 mm)</td> </tr> <tr> <td>L - Width Between Runways</td> <td>37.5'' (953 mm) or 51'' (1,295 mm)</td> </tr> <tr> <td><strong>Alignment</strong></td> </tr> <tr> <td>M - Min. 4-Wheel Alignment:</td> <td>89'' (2,261 mm)</td> </tr> <tr> <td>N - Max. 4-Wheel Alignment:</td> <td>156'' (3,962 mm)</td> </tr> <tr> <td>O - Max. 2-Wheel Alignment:</td> <td>212'' (5,385 mm)</td> </tr> <tr> <td><strong>Minimum Wheelbase</strong></td> </tr> <tr> <td>Rated Capacity:</td> <td>165'' (4,191 mm)</td> </tr> <tr> <td>75% Capacity:</td> <td>140'' (3,556 mm)</td> </tr> <tr> <td>50% Capacity:</td> <td>115'' (2,921 mm)</td> </tr> <tr> <td>25% Capacity:</td> <td>95'' (2,413 mm)</td> </tr> <tr> <td><strong>Locking</strong></td> </tr> <tr> <td>Locking Positions:</td> <td>13</td> </tr> <tr> <td>Lock Spacing:</td> <td>4</td> </tr> <tr> <td><strong>Power Unit</strong></td> </tr> <tr> <td>Motor:</td> <td>220 VAC / 60 Hz / 1 Ph</td> </tr> <tr> <td>Noise:</td> <td>45 dB</td> </tr> </tbody> </table>

Warranty

<p><a href="https://www.bendpak.com/Two-Post-Four-Post-Lift-Warranty-BendPak.pdf" target="_blank"><i><b>Warranty</b></i></a></p>

Shipping

  • Shipping: Shipping is included in the price of this item.
  • Delivery Time: This item ships directly from the manufacturer - Please allow 2-3 weeks for delivery time
  • Residential Delivery: This item may only be shipped to a business address and a forklift must be available to unload.
  • Delivery: Will be delivered truck and will require a forklift to unload. You must have a forklift to unload from truck.

https://www.bendpak.com/BendPak-Products-Flatbed-Exclusive.pdf

https://www.bendpak.com/BendPak-Delivery-Information-Form.pdf

Fork Lift Required for Delivery

Instructions

<p><a href="https://www.bendpak.com/HDS-14LSX-14LSXE-Alignment-Lift-Manual-5900162-BendPak.pdf" target="_blank"><i><b>User Manual for Part # 32712</b></i></a></p>
