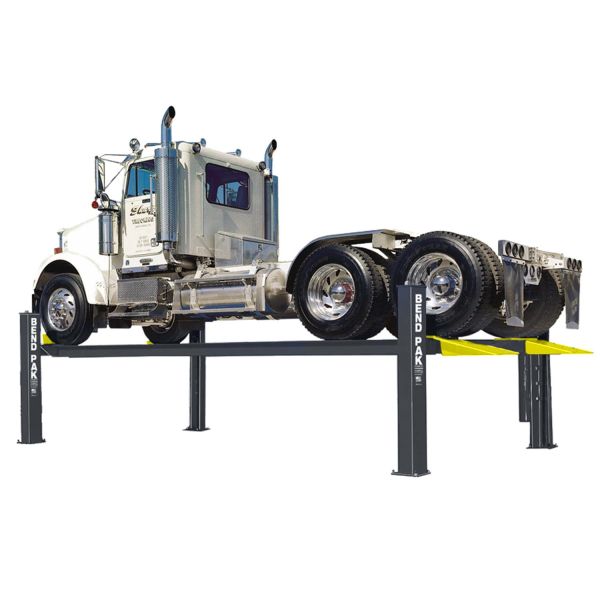

BendPak HDS-40 - Four-Post - 40,000 lb. Capacity 5175176
  • 90-Day Returns
  • Technical Support
BendPak HDS-40 - Four-Post - 40000 lb. Capacity 5175176

Description

The Only Heavy-Duty Car Lift You’ll Ever Need

An HDS-40 four-post lift lets you wrench on absolutely massive vehicles. Nothing in BendPak’s lineup has this much brute force to accompany the same features found on our other heavy-duty lifts. That means the ergonomic controls, massive sheaves, over-engineered lift components and aircraft-quality cables are all here to guarantee the ultimate lifting experience.

Extended runways
Car lifts with longer runways are less prone to causing accidental vehicle damage. For our largest four-post lift, we make sure the most massive 40K trucks and commercial vehicles can safely make their way onto the ramps for service.

Dual-hub cable sheaves
Car lifts with longer runways are less prone to causing accidental vehicle damage. For our largest Truck lift sheaves are made 12” in diameter with 4” diameter sheave axles and are necessarily over-engineered for safer lifting. They’re low-maintenance and low-cost for the entire lifespan of your lift. All four sheaves rotate in perfect synchronization to achieve a smooth, even lift, 100% of the time.

Heavy-duty aircraft cable
BendPak’s heavy-duty, 3/4” diameter, 6 x 25 galvanized lifting cables are expertly engineered to withstand the weights of fully loaded full-size flatbeds and city buses. The cables are completely resistant to rust and chemical reactions, as well as environmental factors such as heat, humidity, air particulate, etc. And since this is a BendPak cable we’re talking about, it requires very little maintenance over time.

Built-in lubrication
To keep your cables sliding gently through the sheaves, self-lubricating grease nipples are fitted through the sheave and sheave axle for many years of optimum performance. We keep the grease where it belongs: along the sheave, not on your floor.

Flow restrictor
A flow restrictor is built in to the hydraulic cylinder, providing a safe descent in the rare (and very unlikely) event of a catastrophic hose rupture. Even in the worst-case scenario, your truck lift will gently descend and safely touch down on the ground. Chances are you’ll never have to see this feature at work, but we engineered it just in case.

Large base plates
Truck lift base plates are made a little wider than the bases of our lighter-duty models: 12 x 12 plate dimensions are sturdy and can be easily bolted into suitable concrete flooring for years of extreme security. No wobbles, no worries.

Features:

  • 40,000-lb. lifting capacity
  • Supersized 12" diameter cable sheaves
  • Galvanized lifting cables
  • Grease nipples
  • Single hydraulic under-runway cylinder
  • Integrated flow restrictor
  • Durable powder coat
  • Spring-loaded safety locks
  • Second lock system on constant guard
  • Fully enclosed lifting cables
  • Multiple adjustable height locking positions
  • Maintenance-free electric hydraulic power system
  • Conveniently positioned operator controls
  • 12" x 12" base plates
  • Non-skid runways
  • Optional rolling jacks

Specifications

<table class=''specs''> <tbody> <tr> <td><strong>Capacity</strong></td> </tr> <tr> <td>Lifting Capacity*</td> <td>40,000 lbs. (18,144 kg)</td> </tr> <tr> <td>*Max Capacity / Front Axle</td> <td>20,000 lbs. (9,072 kg)</td> </tr> <tr> <td>*Max Capacity / Rear Axle</td> <td>20,000 lbs. (9,072 kg)</td> </tr> <tr> <td><strong>Rise</strong></td> </tr> <tr> <td>A - Min. Runway Height:</td> <td>8.5'' (216 mm)</td> </tr> <tr> <td>B - Max. Rise:</td> <td>60'' (1,524 mm)</td> </tr> <tr> <td>C - Max. Lifting Height:</td> <td>68.5'' (1,740 mm)</td> </tr> <tr> <td>Time to Full Rise:</td> <td>75 seconds</td> </tr> <tr> <td><strong>Outside Dimensions</strong></td> </tr> <tr> <td>D - Overall Width:</td> <td>154'' (3,912 mm)</td> </tr> <tr> <td>E - Outside Length:</td> <td>257'' (6,528 mm)</td> </tr> <tr> <td>F - Overall Length:</td> <td>313.5'' (7,963 mm)</td> </tr> <tr> <td>G - Height of Columns:</td> <td>93'' (2,362 mm)</td> </tr> <tr> <td><strong>Inside Dimensions</strong></td> </tr> <tr> <td>H - Width Between Columns:</td> <td>134'' (3,404 mm)</td> </tr> <tr> <td>I - Drive-Thru Clearance:</td> <td>109'' (2,769 mm)</td> </tr> <tr> <td><strong>Runways</strong></td> </tr> <tr> <td>J - Runway Width:</td> <td>28'' (711 mm)</td> </tr> <tr> <td>K - Length of Runways:</td> <td>250'' (6,350 mm)</td> </tr> <tr> <td>L - Width Between Runways:</td> <td>36'' (914 mm) or 47'' (1,194 mm)</td> </tr> <tr> <td>M - Runway Centerline:</td> <td>64'' (1,626 mm) or 75'' (1,905 mm)</td> </tr> <tr> <td>N - Outside Edge of Runways:</td> <td>92'' (2,337 mm) or 103'' (2,616 mm)</td> </tr> <tr> <td><strong>Minimum Wheelbase</strong></td> </tr> <tr> <td>Rated Capacity:</td> <td>185'' (4,699 mm)</td> </tr> <tr> <td>75% Capacity:</td> <td>160'' (4,064 mm)</td> </tr> <tr> <td>50% Capacity:</td> <td>135'' (3,429 mm)</td> </tr> <tr> <td>25% Capacity:</td> <td>110'' (2,794 mm)</td> </tr> <tr> <td><strong>Locking</strong></td> </tr> <tr> <td>Locking Positions:</td> <td>9</td> </tr> <tr> <td>Lock Spacing:</td> <td>Every 6'' (152 mm)</td> </tr> <tr> <td><strong>Power Unit</strong></td> </tr> <tr> <td>Motor:</td> <td>220 VAC / 60 Hz / 1 Ph</td> </tr> <tr> <td>Noise:</td> <td>45 dB</td> </tr> </tbody> </table>

Warranty

<p><a href="https://www.bendpak.com/Two-Post-Four-Post-Lift-Warranty-BendPak.pdf" target="_blank"><i><b>Warranty</b></i></a></p>

Shipping

  • Shipping: Shipping is included in the price of this item.
  • Delivery Time: This item ships directly from the manufacturer - Please allow 2-3 weeks for delivery time
  • Residential Delivery: This item may only be shipped to a business address and a forklift must be available to unload.
  • Delivery: Will be delivered truck and will require a forklift to unload. You must have a forklift to unload from truck.

https://www.bendpak.com/BendPak-Products-Flatbed-Exclusive.pdf

https://www.bendpak.com/BendPak-Delivery-Information-Form.pdf

Fork Lift Required for Delivery

Instructions

<p><a href="https://www.bendpak.com/HDS-18-27-35-40-Four-Post-Lift-Manual-5900160-BendPak.pdf" target="_blank"><i><b>User Manual for Part # 32688</b></i></a></p>
