BendPak LR-60P - Low-Rise - Portable - 6,000 lb. Capacity 5175728

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • • Lifetime Tech Support
BendPak LR-60P - Low-Rise - Portable - 6000 lb. Capacity 5175728

Product Overview:

Description

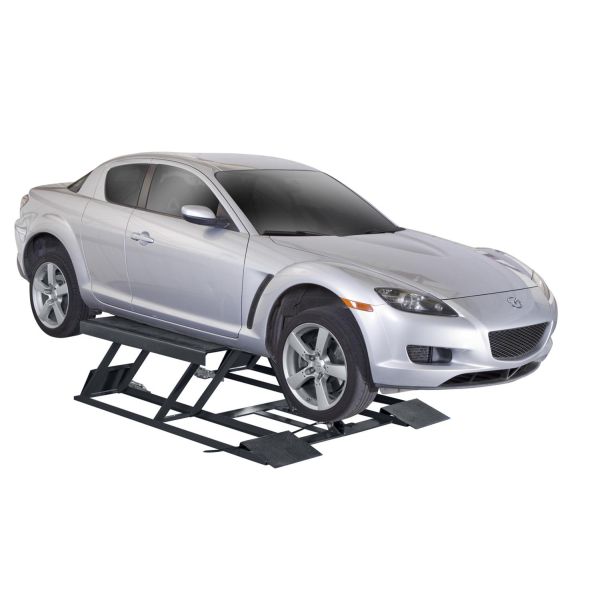

The LR-60P includes UHMW rollers that make this an incredibly portable and versatile scissor lift. It has all the same great features as the LR-60, including multiple safety locks, rubber lifting blocks, dropped crossbar and heavy-duty steel channel frame.

Choose "P" For Portable

High-density UHMW rollers make the LR-60P a conveniently portable low-rise lift. If you’re regularly shifting car lifts to different service bays or have limited space you need to diversify, a portable lift will make your garage operations that much easier. These amazingly durable wheels, and they're practically indestructible. One person can easily move the LR-60P around shops or garages, and the wheels should never wear or need replacing.

Low-profile height
The LR-60P offers portability without adding bulk. The lift collapses to just 4" high, so low-stance vehicles have no problem clearing the frame. This small-footprint model is not only ideal for tight spaces, but for garages with limited equipment that need to work in different places around the shop, or simply store the lift out of the way.

Single-point safety release
With the push of a button on the control panel, dual locks release on each frame of the LR-60P. The control panel keeps operators at a safe distance during descent, ensuring efficiency, peace-of-mind and a safe, smooth-running lift at all times.

Dropped crossbar
A dropped crossbar makes it easier to drive up and onto the frames. The center portion of each frame rises to engage the vehicle's OEM jacking points. Since the crossbar improves stability without slowing or hindering operations, Wheel service and suspension work become a cinch.

Rugged steel channel frame
A steel channel runs along the base of the LR-60P. The added stability makes this an ideal lift for busy, active bays. With a five-year standard warranty and superior engineering put into the design, we guarantee you'll work without worry for as long as you own your BendPak.

Industrial-grade hydraulic cylinder
Integrated into the single hydraulic cylinder is a one-piece, pilot fitted, machined steel piston that is wrapped with specially designed, pressure loaded U-cup piston seals, backups and wear bands that virtually eliminate any fluid bypass.

Solid rubber lift blocks
This portable low-rise lift includes a set of durable hard-rubber blocks. They take all the use and abuse you can throw at them for years of maintenance-free lifting. We don't even bother with or offer those thin, flimsy pads that damage your customers' vehicles or get torn to shreds after a few uses. If you ever need to get these blocks replaced, BendPak offers same-day delivery on most orders.

Features:

  • 6,000-lb. lifting capacity
  • Tow handle makes it easy to move lift from bay to bay
  • Electric / hydraulic power system
  • Multi-position safety locks
  • Rubber lifting blocks included
  • Dropped cross bar for added clearance
  • Heavy-duty steel channel frame

Warranty

Warranty

Specifications

Lifting capacity: 6,000 lbs. (2,724 kg)
Max lifting capacity front axle: 3,000 lbs. (1,361 kg)
Max lifting capacity rear axle: 3,000 lbs. (1,361 kg)
Max lifting height: 26'' (660 mm)
Max lift height + 1.5'' blocks: 27.5'' (699 mm)
Max lift height + optional 3'' blocks: 29'' (737 mm)
Overall pad length: 53'' (1,346 mm)
Overall width: 70.5'' (1,791 mm)
Overall length: 82'' (2,083 mm)
Lowered height: 4'' (102 mm)
Lifting time: 35 seconds
Motor: 115/208 or 230 VAC / 50-60 Hz / 1 Ph
Lift pad dimension: 18'' x 52'' (457 mm x 2,591 mm)

Shipping & Handling

  • Delivery Time: This item ships directly from the manufacturer - Please allow 2-3 weeks for delivery time
  • Residential Delivery: This item may only be shipped to a business address and a forklift must be available to unload.
  • Delivery: Will be delivered truck and will require a forklift to unload. You must have a forklift to unload from truck.

https://www.bendpak.com/BendPak-Products-Flatbed-Exclusive.pdf

https://www.bendpak.com/BendPak-Delivery-Information-Form.pdf

Fork Lift Required for Delivery

In the Box

Guides & Accessories

Instructions

<p><a href="https://www.bendpak.com/LR-60-LR-60P-Low-Rise-Lift-Manual-5900337-BendPak.pdf" target="_blank"><i><b>User Manual for Part # 5175728</b></i></a></p>
