Item # 32734 BRAND: BendPak

BendPak P-9000LT - Low-Rise - Pit Style - 9000 lb. Capacity 5175133

BendPak P-9000LT - Low-Rise - Pit Style - 9,000 lb. Capacity 5175133
BendPak P-9000LT - Low-Rise - Pit Style - 9,000 lb. Capacity 5175133
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 3.93ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
$5,695.00
Loading...
Loading...
Save for Later
BendPak P-9000LT - Low-Rise - Pit Style - 9,000 lb. Capacity 5175133

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • • Lifetime Tech Support
BendPak P-9000LT - Low-Rise - Pit Style - 9000 lb. Capacity 5175133

Product Overview:

Description

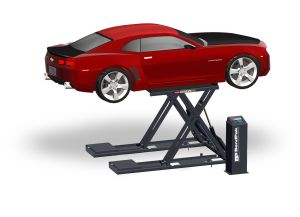

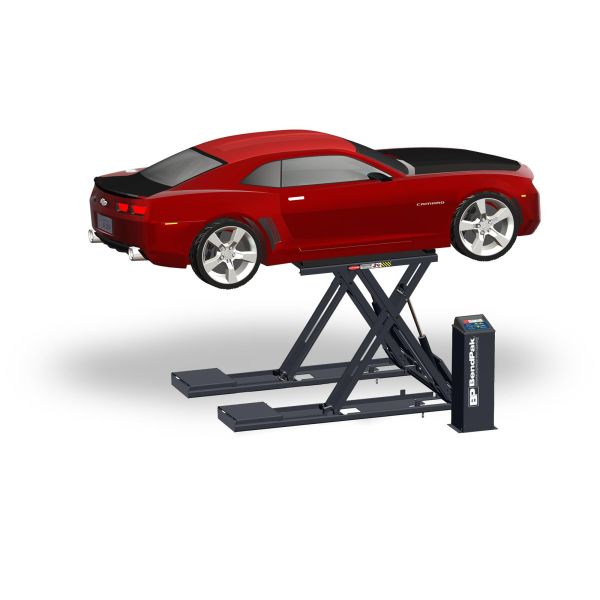

The 9,000-lb. capacity P-9000LT scissor lift is a heavier-duty version of the P-6B. We increased the lift capacity by 30% while maintaining all the features you love: dual-approach design, open-center access and a hands-free safety check. This is the industry’s ultimate pit lift.

The Undisputed World’s Best Pit Lift

9,000 lbs. of lift. Unobstructed access to the vehicle’s undercarriage. Optional ramps or flush-mount design. Miniscule footprint. Optional arm adapters. You know it already: this is the best low-rise car lift money can buy. Fast-lube shops have been relishing in the P-6B for years, and the best thing we could do to improve on the design was increase the weight capacity. The P-9000LT is suitable for more light trucks and SUVs than ever, and whether you choose the extended approach ramps or flush-mount option, lifting low-stance vehicles is a cinch for this lift.

Surface and flush-mount options

Whether you work in a pit or prefer to keep your low-rise lift on the ground, the BendPak P-9000LT is versatile enough to do both. Converting the flush-mount P-9000LTF into a floor model is as simple as attaching the extended approach ramps. These heavy-duty ramps are extended farther and slope very gradually, so low ground-clearance vehicles never rub against them.

The P-9000LT is made with oil-change facilities first and foremost in mind. The frame-engaging design permits full access to the wheels for tire and brake service. This makes your oil-change business a threat to competing auto shops who used to steal your wheel service. They’ll be missing all those great, profitable references once you put a full-service lift in your garage. This industry-leading lift features a 1.5 HP electric-hydraulic power unit, dual hydraulic cylinders, precision flow-divider, simple push-button controls and remote pneumatic safety locks.

Pneumatic lock release
Air locks provide a safe, instant release that efficiently permits the lowering of vehicles. A single button push is all it takes to disengage the locks and completely lower the lift in seconds flat.

Low-profile design
At just 4” high when fully lowered, the P-9000LT is one of the most space-effective models ever made. When flush-mounted, its profile virtually disappears completely.

Rugged steel channel frame
The super-wide base provides this 9,000 lbs. of lifting force with excellent support. No one matches the steel channel frame design of the P-9000LT. We’ll always be the original, but ongoing heavy-duty construction ensures we stay the best.

Solid rubber lift blocks
We don’t charge a penny extra for the rubber blocks you need to lift your or your customers’ vehicles. These rugged blocks protect vehicle undercarriages and chassis. They’re made to take as much use and abuse as your work requires.

Detailed instructions
Every BendPak lift comes complete with an easy-to-read instruction manual, space to keep service records, a guide for safe lifting and a safety/training instruction placard.

Choose flush-mount
The P-9000LTF pit lift mounts flush against the concrete. If you don’t want to see the car lift, or you simply need it out of the way in your busy garage, the ramps are completely detachable. That means if you change your mind, you can easily convert your P-9000LT into a P-9000LTF at any time.

Features:

  • 9,000-lb. lifting capacity
  • Reinforced parallel lifting arms to better support inboard loading
  • Reinforced upper lift platform to better support inboard loading
  • Dual-pump power unit with built in proportioning valve
  • Easily

Warranty

Warranty

Specifications

Lifting capacity: 9,000 lbs. (4,082 kg)
Lifting Height: 23.3” (592 mm)
Lifting Height + Block: 26.3” (668 mm)
Overall Lift Platform Length: 58.5” (1,484 mm)
Overall Lift Platform Width: 24” (610 mm)
Overall Length: 124.6” (3,165 mm)
Lowered Height: 3.15” (80 mm)
Speed of rise: 55 seconds
Standard motor (*): 1.5 HP / 220 VAC / 60 Hz / 1 Ph

Shipping & Handling

  • Delivery Time: This item ships directly from the manufacturer - Please allow 2-3 weeks for delivery time
  • Residential Delivery: This item may only be shipped to a business address and a forklift must be available to unload.
  • Delivery: Will be delivered truck and will require a forklift to unload. You must have a forklift to unload from truck.

https://www.bendpak.com/BendPak-Products-Flatbed-Exclusive.pdf

https://www.bendpak.com/BendPak-Delivery-Information-Form.pdf

Fork Lift Required for Delivery

In the Box

Guides & Accessories

Instructions

<p><a href="https://www.bendpak.com/P-9000LT-Low-Rise-Pit-Lift-Manual-5175133-BendPak.pdf" target="_blank"><i><b>User Manual for Part # 5175133</b></i></a></p>

Reviews

  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 4.24ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned; HTTP status code of 404 was returned;

Questions & Answers

Is this to be monted permanently or can it be mobile?

Asked by: 65 impala
This lift is intended to be mounted flush in the floor with concrete cutouts, and anchored to the floor. It is not designed as a highly mobile lift.
Answered by: Nick BC
Date published: 2022-11-01

Will it lift full size pickups safely

Asked by: Tim66
With its 9,000 lb capacity, it is suitable for light duty trucks and SUV's
Answered by: Bart
Date published: 2022-08-30

Can this lift unit be installed outside exposed to the elements? What voltage does this unit require?

Asked by: Shadow
It can be used outside, but it is highly recommended to be stored out of the weather and elements. Requires 110V
Answered by: Bart
Date published: 2022-07-11
