Description

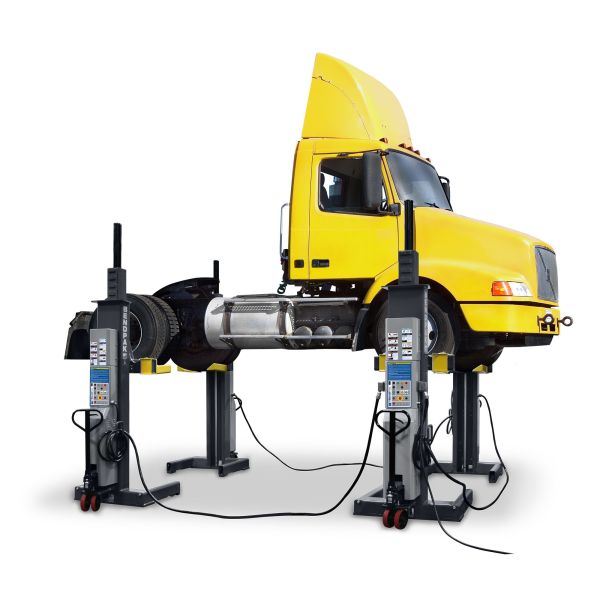

This PCL-18B mobile column lift system comes in a set of 4. When combined, the system lifts up to 72,000 lbs. Ideal for two-axle vehicles. Sets of 2, 6 and 8 are also available.

Set of 4 Mobile Column Lifts

With a full set of mobile column lifts, you'll lift vehicles up to 72,000 lbs. This weight class encompasses most heavy-duty and commercial semi-trucks. If you need more lifting power, upgrade to a set of 6 or double your capability with a set of 8. For a frame-engaging adapter, check out the PCL-18B cross beam. This handy tool allows you to safely remove tires and perform full wheel service on your vehicle.

Features:

  • 18,000-lb. individual column capacity / 108,000-lb. maximum system capacity
  • Meets or exceeds the standards prescribed by ANSI/ALI ALCTV-2011
  • Two, four, or six column configurations can accommodate heavy duty trucks and light duty passenger vehicles
  • 208-240V, 3-phase main power system - optional voltages available upon request
  • SINGLE, PAIR or TEAM operation
  • For a standard four-column set, just three 30' cables are used leaving the front or back of the lift clear of cable obstructions
  • Simple operation, long service life and minimum maintenance
  • Intuitive controls allow the lift to be fully programmed and controlled from any column
  • Control systems feature 24-volt safety circuitry
  • The PLC and main system components are standard off-the-shelf brands rather than proprietary printed circuit boards or controls, which can be very expensive to service or replace
  • Smart electronics feature self-diagnostics and self-calibration functions
  • Sealed and enclosed linear potentiometers feature precision potentiometric output and high-frequency response for precise synchronization and communication of all columns throughout all operation cycles for precise, level lifting
  • Variable height limit settings can be programmed for shops with low ceilings or when specific vehicle service requirements necessitate specific rise heights
  • Two-speed lowering option – turtle or rabbit speed settings
  • Each column is equipped with a warning light and audible alarm for critical warning alerts
  • Emergency shut-off switches on each column quickly shut off power to the lift in the event an unsafe condition is detected by the operator
  • Pallet-jack style steering wheels enable the columns to be lowered firmly on the floor vs. constantly loaded spring-type steering wheels that can cause columns to roll when unladen by the weight of a vehicle
  • Low-mounted power units and cylinders means a lower center of gravity, making the columns easier to move and less likely to topple vs. screw-drive systems with heavy overhead motors and drive systems
  • Extended forks accommodate wide tires and deep wheel configurations
  • Multi-width wheel forks with locking pins accommodate the widest range of wheels, eliminating the need for specialty wheel adapters
  • Tandem 8” diameter polyurethane covered steel wheels with sealed roller bearings easily roll over dirt and debris
  • Heavy-duty steel carriage rollers feature turned, ground and polished axle pins
  • Manual safety override valves on each column permit the lift to be lowered in the event of a power outage without the need for manual hand cranks
  • Inverted hydraulic cylinders feature an integrated safety valve to prevent accidental uncontrolled lowering in the event of oil pressure loss
  • Multiple, automatic, independent safety locks spaced every four inches ensure safe operation

Specifications

<table class=''specs''> <tr> <td>Lifting Capacity</td> <td>18,000 lbs. (8,165 kg)</td> </tr> <tr> <td>A - Overall Height (RAISED)</td> <td>101” (2,565 mm)</td> </tr> <tr> <td>B - Overall Height (LOWERED)</td> <td>146.5” (3,721 mm)</td> </tr> <tr> <td>C - Max. Lifting Height</td> <td>71.5” (1,889 mm)</td> </tr> <tr> <td>D - Overall Depth</td> <td>48.75” (1,238 mm)</td> </tr> <tr> <td>E - Overall Width</td> <td>45” (1,143 mm)</td> </tr> <tr> <td>F - Chassis Length</td> <td>32.25” (819 mm)</td> </tr> <tr> <td>G - Min. Lifting Fork Width</td> <td>9.5” (241 mm)</td> </tr> <tr> <td>H - Max. Lifting Fork Width</td> <td>35” (889 mm)</td> </tr> <tr> <td>I - Lifting Fork Length</td> <td>11.5” (292 mm)</td> </tr> <tr> <td>Turning Circle</td> <td>40” (1,016 mm)</td> </tr> <tr> <td>Column Weight</td> <td>1,450 lbs. (657 kg)</td> </tr> <tr> <td>Lifting Speed</td> <td>85 sec</td> </tr> </table>

Warranty

<p><a href="https://www.bendpak.com/Portable-Column-Lift-Warranty-BendPak.pdf" target="_blank"><i><b>Warranty</b></i></a></p>

Shipping

  • Shipping: Shipping is included in the price of this item.
  • Delivery Time: This item ships directly from the manufacturer - Please allow 2-3 weeks for delivery time
  • Residential Delivery: This item may only be shipped to a business address and a forklift must be available to unload.
  • Delivery: Will be delivered truck and will require a forklift to unload. You must have a forklift to unload from truck.

https://www.bendpak.com/BendPak-Products-Flatbed-Exclusive.pdf

https://www.bendpak.com/BendPak-Delivery-Information-Form.pdf

Fork Lift Required for Delivery

Instructions

<p><a href="https://www.bendpak.com/PCL-18B-Mobile-Column-Lift-Manual-5900170-BendPak.pdf" target="_blank"><i><b>User Manual for Part # 5175292</b></i></a></p>
