BendPak PCL-18B - Mobile Lift System - 460/380V, 50/60HZ, 3-Ph - Set of 2 - 36,000 lb. Capacity 5175295
  • 90-Day Returns
  • Technical Support
BendPak PCL-18B - Mobile Lift System - 460/380V, 50/60HZ, 3-Ph - Set of 2 - 36,000 lb. Capacity 5175295

Description

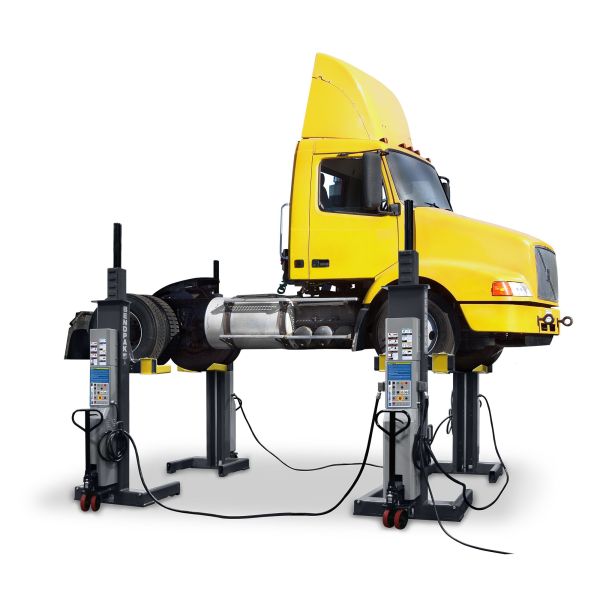

Set of 2 Mobile Column Lifts

These mobile lifts make up BendPak’s most powerful lifting system to date. This mobile system comes as a set of 2 with each having a maximum capacity of 18,000-lb. Sets of 4,6 and 8 are available.

Features:

  • 18,000-lb. individual column capacity
  • Meets or exceeds the standards prescribed by ANSI/ALI ALCTV-2017
  • Just three 30’ cables are used leaving the front or back of the lift clear of cable obstructions
  • Intuitive controls allow the lift to be fully programmed and controlled from any column
  • Smart electronics feature self-diagnostics and self calibration functions
  • Sealed and enclosed linear potentiometers feature precision potentiometric output and high-frequency response for precise synchronization and communication of all columns through all cycles for precise, level lifting
  • Height settings can be programmed for low ceiling shops

Specifications

<table class=''specs''> <tr> <td>Lifting Capacity</td> <td>18,000 lbs. (8,165 kg)</td> </tr> <tr> <td>A - Overall Height (RAISED)</td> <td>101” (2,565 mm)</td> </tr> <tr> <td>B - Overall Height (LOWERED)</td> <td>146.5” (3,721 mm)</td> </tr> <tr> <td>C - Max. Lifting Height</td> <td>71.5” (1,889 mm)</td> </tr> <tr> <td>D - Overall Depth</td> <td>48.75” (1,238 mm)</td> </tr> <tr> <td>E - Overall Width</td> <td>45” (1,143 mm)</td> </tr> <tr> <td>F - Chassis Length</td> <td>32.25” (819 mm)</td> </tr> <tr> <td>G - Min. Lifting Fork Width</td> <td>9.5” (241 mm)</td> </tr> <tr> <td>H - Max. Lifting Fork Width</td> <td>35” (889 mm)</td> </tr> <tr> <td>I - Lifting Fork Length</td> <td>11.5” (292 mm)</td> </tr> <tr> <td>Turning Circle</td> <td>40” (1,016 mm)</td> </tr> <tr> <td>Column Weight</td> <td>1,450 lbs. (657 kg)</td> </tr> <tr> <td>Lifting Speed</td> <td>85 sec</td> </tr> </table>

Warranty

<p><a href="https://www.bendpak.com/Portable-Column-Lift-Warranty-BendPak.pdf" target="_blank"><i><b>Warranty</b></i></a></p>

Instructions

<p><a href="https://www.bendpak.com/PCL-18B-Mobile-Column-Lift-Manual-5900170-BendPak.pdf" target="_blank"><i><b>User Manual for Part # 5175295</b></i></a></p>
