Description

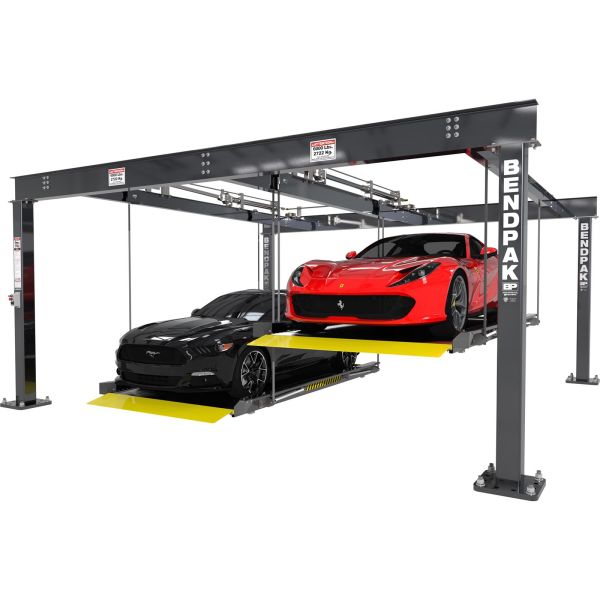

Extra-Wide Superstructure Tandem-Platform Parking Lift

The PL-6KDTX is the luxury parking system and professional-grade car lift that balances both safety AND practicality. The PL-6KDTX is extra-wide with a 225” overall width which gives you an additional 36” more than the PL-6KDT parking lift. This extra width places the columns 16.5” away from the platforms—so you don’t have to worry about squeezing in wide cars, or feeling cramped on the way out.

Like all of our parking lifts, the PL-6KDTX allows you to save space, and store your collection like a professional. Its industrial-strength cables have a weight capacity of 60,000-lbs. and are over-designed for your safety and the safety of your cars. Durable, weatherproof construction is perfect for use both indoors and outdoors and for both commercial and residential purposes. All of which makes this versatile lift the perfect companion regardless of your car storage needs.

Instead of adding on expensive real estate, expand your space vertically with this modern dual-platform parking lift. The PL-6KDTX dual-platform lift has an easy-to-use design that lifts quickly and efficiently, saving you time and space.

One lift houses four vehicles
Whether you are trying to expand your parking potential, or display your vehicles in a modern and efficient way, the PL-6KDTX saves you time and space. With only four columns and two lifting platforms that can hold up to 6,000 lbs. each, The PL-6KDTX’s tandem platform design allows it to house up to four vehicles all by itself. This design limits the number of parking lifts you would need to buy, and maximizes your parking capacity all in one convenient package.

Two independent platforms
The success of the PL-6KDTX is entwined in its dual-platform, four-post construction. High-strength, galvanized steel platforms are independently suspended by aircraft-quality steel cables so each platform can lift freely from the other. With a hefty 6,000-lb. weight capacity per platform this four-car parking lift is the only lift you’ll ever need.

Features:

  • Extra-wide
  • Columns extend 16.5" away from platform
  • 6,000-lb. capacity per deck
  • Perfect for cars, light trucks, motorcycles and ATVs
  • Rugged I-beam and C-channel construction
  • Built-in wheel stops
  • Wide base-plate for maximum stability
  • Front and rear wheel chocks
  • Superstructure features durable powder-coat finish
  • Dual hydraulic cylinders with heavy-duty steel lifting cable
  • Heavy-duty steel construction
  • Reliable electric-hydraulic power system
  • Full-width platform to keep bottom vehicles protected
  • Simple controls
  • Oversized sheave diameter reduces cable fatigue
  • High-speed lifting
  • Features heavy-duty 3/8" aircraft cable
  • Rugged 1.25" roller axles
  • Multi-position safety locks in each column
  • Runways feature non-skid surface
  • Push-button pneumatic safety release
  • Independent backup slack-cable safety latches
  • Customizable power unit location

Specifications

<table class=''specs''> <tr> <td><strong>Style</strong></td> </tr> <tr> <td>Style:</td> <td>Multi-Platform Parking Lift</td> </tr> <tr> <td><strong>Capacity</strong></td> </tr> <tr> <td>Lifting Capacity:</td> <td>6,000 lbs.</td> </tr> <tr> <td>Overall Width:</td> <td>250”</td> </tr> <tr> <td>Overall Length:</td> <td>236.5”</td> </tr> <tr> <td>Overall Height:</td> <td>122.75''</td> </tr> <tr> <td>Min. Runway Height:</td> <td>9”</td> </tr> <tr> <td>Max. Rise:</td> <td>89”</td> </tr> <tr> <td>Width Between Posts:</td> <td>225''</td> </tr> <tr> <td>Platform Width:</td> <td>82''</td> </tr> <tr> <td>Platform Length:</td> <td>152''</td> </tr> <tr> <td>Drive Clearance:</td> <td>93''</td> </tr> <tr> <td>Locking Positions:</td> <td>1</td> </tr> <tr> <td>Lifting Time:</td> <td>30 seconds</td> </tr> <tr> <td>Standard Motor:</td> <td>220 VAC / 60 Hz / 1Ph</td> </tr> </table>

Warranty

<p><a href="https://www.bendpak.com/Commercial-Parking-Lift-Warranty-BendPak.pdf" target="_blank"><i><b>Warranty</b></i></a></p>

Shipping

  • Shipping: Shipping is included in the price of this item.
  • Delivery Time: This item ships directly from the manufacturer - Please allow 2-3 weeks for delivery time
  • Residential Delivery: This item may only be shipped to a business address and a forklift must be available to unload.
  • Delivery: Will be delivered truck and will require a forklift to unload. You must have a forklift to unload from truck.

https://www.bendpak.com/BendPak-Products-Flatbed-Exclusive.pdf

https://www.bendpak.com/BendPak-Delivery-Information-Form.pdf

Fork Lift Required for Delivery

Instructions

<p><a href="https://www.bendpak.com/PL-6K-Series-Parking-Lift-Manual-5900056-BendPak.pdf" target="_blank"><i><b>User Manual for Part # 5175212</b></i></a></p>
