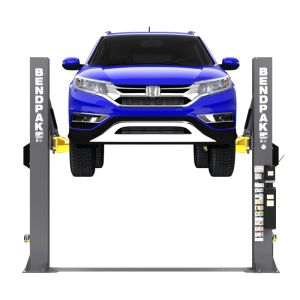

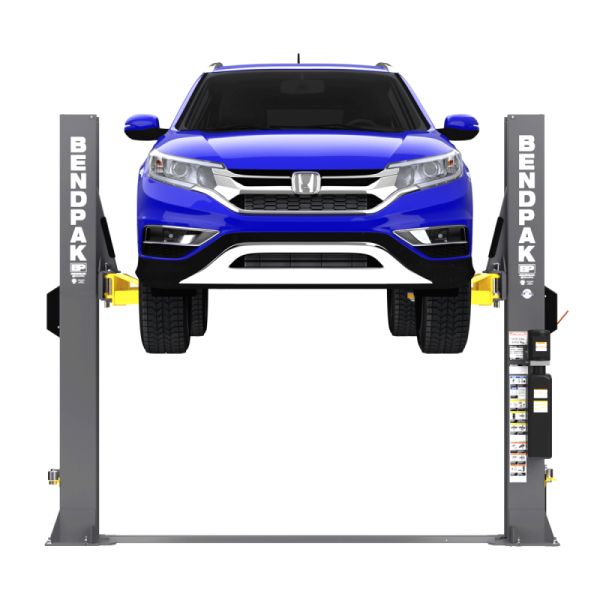

Bendpak Two-Post Lift 9000 lb XPR-9TF
Manufacturer Warranty Included
100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.
- • 90 Day Returns
- • Lifetime Tech Support
Product Overview:
Description
The XPR-9TF two-post lift has been built from the ground up for professional shops. Powerful and secure, this lift is sure to get the job done. It boasts an incredibly rapid lifting system and a robust menu of features to increase proficiency and productivity. The end result is lower operating expenses and enhanced efficiency. When you want to get more done in less time, you’re going to want the XPR-9TF.
Automatic Arm Restraints
The XPR-9TF features an automatic engage/disengage arm restrain feature which engages when the lift is raised and disengages when it lowers. It’s an essential safety feature, as well as a simple one. When lowered, the lift arms are easy to position under your vehicle chassis.
Maintenance-free Load Bearings
BendPak uses UHMW (ultra-high molecular weight polyethylene) load bearings because they are resistant to chemicals, weather, wear, etc. and will never need to be replaced as long as you own your lift. While other companies use roller bearings that require lubrication, we decided to utilize UHMW load bearings which never need to be lubricated or maintained.
Wide and Narrow Installation
The XPR-9TF allows you to work in either a wide or narrow configuration. With a wide configuration you’ll be able to raise wider vehicles if you have the space for it. If you are limited on space, narrow installation is the way to go.
These two-post lift models have the capacity to effortlessly lift full-size pickups and commercial vehicles, yet they still provide specific capabilities for sport and compact cars, both foreign and domestic. The XPR-9TF is a rugged model with a 9,000-lb. maximum capacity, making it perfect for most if not all automotive shops. When it comes to ease-of-use, it doesn’t get much better than the XPR-9TF.
Warranty
Specifications
- 9,000 lb. Capacity
- Single-Piece Columns
- Safety Lock Release Handle
- Equalizing Cables
- Chain Lifting System Combined with Dual Hydraulic Cylinders
- Plated Arm Restraints and Arm Pins for Rust Prevention
Capacity
- Lifting Capacity*: 9,000 lbs. (4,082 kg)
- Max Capacity / Front Axle: 4,500 lbs. (2,041 kg)
- Max Capacity / Rear Axle: 4,500 lbs. (2,041 kg)
Rise
- A - Rise: 69 in. (1,753 mm)
- B- Rise + Pad Only: 73.75 in. (1,870 mm)
- C- Rise + Pad + 63 mm Adapter: 78.25 in. (1,987 mm)
- D- Min. Height + Pad: 4.75 in. (118 mm)
- Time to Full Rise: ≈45 seconds
Outside Dimensions
- E- Height Overall:123.25 in. (3,128 mm)
- F- Width Overall: 132 in. (3,353 mm)-145 in. (3,683 mm)
- G- Outside Columns: 124.75 in. (3,169 mm)-137.75 in. (3,499 mm)
Inside Dimensions
- H- Inside Columns: 103.5 in. (2,629 mm) or 116.5 in. (2,959 mm)
- I- Drive-Thru Clearance: 91 in. (2,315 mm) or 104 in. (2,642 mm)
Arms & Pads
- K- Front Arm Reach: (MIN): 25.5 in. (646 mm)
- K- Front Arm Reach: (MAX): 49.5 in. (1,255 mm)
- L- Rear Arm Reach: (MIN): 32.25 in. (821 mm)
- L- Rear Arm Reach: (MAX): 52.5 in. (1,331 mm)
- Screw Pad Adjustment: 1.5 in. (37 mm)
- Max Load Per Arm: N/A
Power Unit
- Motor: 220 VAC, 60 Hz, 1 Phase
- Noise: <43 dB
