BendPak XPR-10AS-168-LP - Clearfloor - Low Profile Arms - Tall Lift - 10,000 lb. Capacity 5175402

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • 90 Day Returns
  • • Lifetime Tech Support
BendPak XPR-10AS-168-LP - Clearfloor - Low Profile Arms - Tall Lift - 10000 lb. Capacity 5175402

Product Overview:

Description

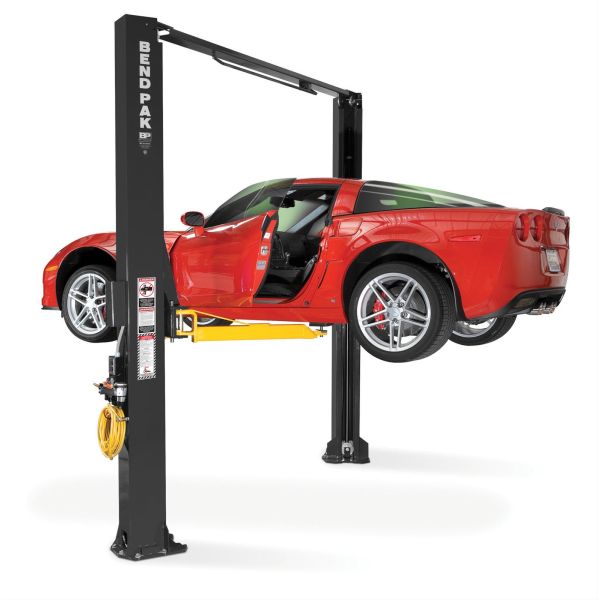

Two-Post Lift Protects Vehicles and Makes Lifting Easy

Every XPR-10AS features Direct-Drive technology that’s only available with BendPak. The asymmetrical design of this lift has rotated columns, which makes it easier to enter and exit the vehicle and reduces the chance of door dings.

A 10K capacity BendPak car lift is a smart addition to any shop or garage. Professionals love the power and reliability of the lift, and they know our reputation precedes us. Meanwhile, DIY’ers with high ceilings know BendPak means safe lifting in the comfort of home. Skip the headache of an uncertified, poorly welded piece of garbage and trust our best to lift your best.

Our XPR-10AS asymmetric two-post lift offers the convenience of wide or narrow installation, all in one configurable package. This durable, safe and reliable car lift features expandable top beam and Tru-Metric arms to suit virtually every vehicle lifting requirement. The simple yet highly sophisticated lift design keeps service and maintenance costs to a minimum, delivering lower operating expenses and higher productivity. These true asymmetric lifts feature 30° rotated columns for added door-opening clearance and interior car access. The exclusive Tru-Metric carriage and arm design combines to give users the ability to load vehicles either symmetrically (centerline of vehicle at column) or asymmetrically (centerline of vehicle behind column).

All asymmetric models features rotated columns for added clearance when opening vehicle doors. At the same time, swing-away arms provide a larger drive-thru clearance. These models feature the exclusive Tru-Metric arm design to provide variable arm-position configurations—either symmetric or asymmetric, providing greater versatility for greater service capability. It’s like having two car lifts in one!

Features:

  • Wide or narrow drive-thru configuration
  • Telescoping screw pads offer increased versatility
  • Added overhead safety shutoff bar
  • Tru-Metric™ arm design for versatile arm positions
  • 30° rotated single-piece columns
  • Single-point safety release
  • Drop-end arms provide a lower pad height
  • Dual hydraulic direct-drive cylinders
  • Oversized 53” tall carriage for superior strength
  • Electric / hydraulic power system
  • Automatic arm restraints
  • Heavy-duty 1/2” aircraft-quality equalizer cables
  • Oversized cable sheave reduces cable fatigue
  • 4-piece 63 mm stackable adapter set included
  • Triple-telescoping arm design
  • Versatile drop-in contact pads with stackable adapter pins
  • ETL Approved

Warranty

Warranty

Specifications

Capacity
Lifting Capacity* 10,000 lbs. (4,536 kg)
*Max Capacity / Front Axle 5,000 lbs. (2,268 kg)
*Max Capacity / Rear Axle 5,000 lbs. (2,268 kg)
Rise
A - Rise: 69" (1,753 mm)
B - Rise + Pad Only: 73" (1,854 mm)
C - Rise + Pad + 63 mm Adapter: 79" (2,007 mm)
D - Min. Height + Pad: 4" (102 mm)
Time to Full Rise: 45 seconds
Outside Dimensions
E - Height Overall: 168.75" (4,284 mm)
F - Width Overall: 137" (3,480 mm) or 145" (3,683 mm)
G - Outside Columns: 133.25" (3,385 mm) or 141.25" (3,588 mm)
Inside Dimensions
H - Inside Columns: 106.25" (2,699 mm) or 114.25" (2,902 mm)
I - Drive-Thru Clearance: 93.75" (2,381 mm) or 101.75" (2,584 mm)
J - Floor To Overhead Switch: 164" ( 4,164mm)
Arms & Pads
K - Front Arm Reach: (MIN) 23.5" (597 mm)
K - Front Arm Reach: (MAX) 43.75" (1,111 mm)
L - Rear Arm Reach: (MIN) 40.25" (1,022 mm)
L - Rear Arm Reach: (MAX) 58" (1,473 mm)
Screw Pad Adjustment: 2" (51 mm)
Max Load Per Arm 2,500 lbs. (1,134 kg)
Power Unit
Motor: 220 VAC / 60 Hz / 1 Ph
Noise: 45 dB

Shipping & Handling

  • Delivery Time: This item ships directly from the manufacturer - Please allow 2-3 weeks for delivery time
  • Residential Delivery: This item may only be shipped to a business address and a forklift must be available to unload.
  • Delivery: Will be delivered truck and will require a forklift to unload. You must have a forklift to unload from truck.

https://www.bendpak.com/BendPak-Products-Flatbed-Exclusive.pdf

https://www.bendpak.com/BendPak-Delivery-Information-Form.pdf

Fork Lift Required for Delivery

In the Box

Guides & Accessories

Instructions

<p><a href="https://www.bendpak.com/XPR-10-Series-Two-Post-Lift-Manual-5900951-BendPak.pdf" target="_blank"><i><b>User Manual for Part # 32681</b></i></a></p>

Reviews

  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 3.82ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned; HTTP status code of 404 was returned;

Questions & Answers

Well the bendpak XPR 10as168 LP have any problems lifting a Ford F-250 Super Duty diesel?

Asked by: Glen
Nope, this lifts capacity well exceeds what a typical F250 weighs.
Answered by: Nick BC
Date published: 2023-03-02
