BendPak XPR-10AXLS-LP-181 - Clearfloor - Low Profile Arms - Tall Lift - 10,000 lb. Capacity 5175187

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • 90 Day Returns
  • • Lifetime Tech Support
BendPak XPR-10AXLS-LP-181 - Clearfloor - Low Profile Arms - Tall Lift - 10000 lb. Capacity 5175187

Product Overview:

Description

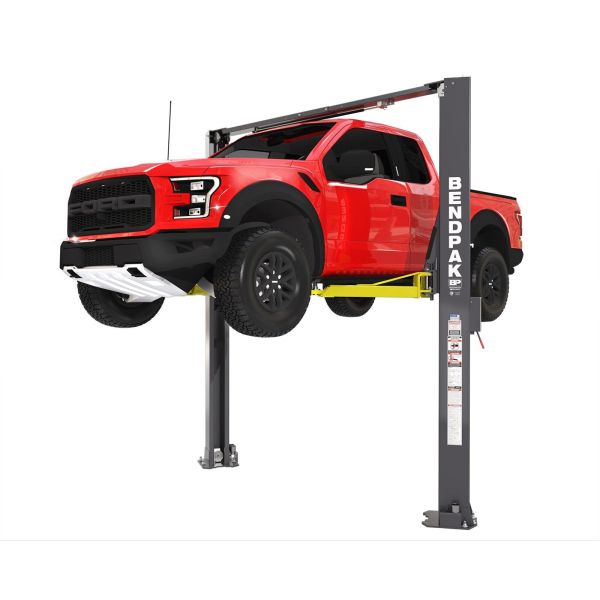

The BendPak Low-Profile Tall Lift features extended height to let you work more efficiently and comfortably. The direct-drive technology ensures a highly dependable and smooth operation, and the automatic arm restraints allow for easy and safe repositioning. The Single-piece columns, single-point safety release and auto shut-off improve safety.

Features:

  • 10,000 lb. capacity
  • Direct-drive technology ensures a smooth and dependable operation
  • HVLP direct-drive cylinders
  • Low-profile dropped-end frame contact pads
  • Triple-telescoping front arms and 2-stage rear arms for increased positioning
  • Lowered arm tube allows for maximal clearance
  • Automatic arm restraints for safe and fast repositioning
  • Tall lift carriages
  • Maintenance-free load bearings
  • Single-piece columns for reduced fracture and stress points
  • Single-point safety release
  • Padded auto shut-off bar for enhanced safety

Warranty

Warranty

Specifications

Capacity
Lifting Capacity* 10,000 lbs. (4,536 kg)
*Max Capacity / Front Axle 5,000 lbs. (2,268 kg)
*Max Capacity / Rear Axle 5,000 lbs. (2,268 kg)
Rise
A - Rise: 75" (1,905 mm)
B - Rise + Pad Only: 79.75" (2,026 mm)
C - Rise + Pad + 63 mm Adapter: 82.75" (2,102 mm)
D - Min. Height + Pad: 4.75" (121 mm)
Time to Full Rise: 50 seconds
Outside Dimensions
E - Height Overall: 180" (4,573 mm)
F - Width Overall: 137" (3,480 mm) or 145" (3,683 mm)
G - Outside Columns: 133.25" (3,385 mm) or 141.25" (3,588 mm)
Inside Dimensions
H - Inside Columns: 106.25" (2,699 mm) or 114.25" (2,902 mm)
I - Drive-Thru Clearance: 93.75" (2,381 mm) or 101.75" (2,584 mm)
J - Floor To Overhead Switch: 175.25" (4,453 mm)
Arms & Pads
K - Front Arm Reach: (MIN) 23.5" (597 mm)
K - Front Arm Reach: (MAX) 43.75" (1,111 mm)
L - Rear Arm Reach: (MIN) 40.25" (1,022 mm)
L - Rear Arm Reach: (MAX) 58" (1,473 mm)
Screw Pad Adjustment: 2" (51 mm)
Max Load Per Arm 2,500 lbs. (1,134 kg)
Power Unit
Motor: 220 VAC / 60 Hz / 1 Ph
Noise: 45 dB

Shipping & Handling

  • Delivery Time: This item ships directly from the manufacturer - Please allow 2-3 weeks for delivery time
  • Residential Delivery: This item may only be shipped to a business address and a forklift must be available to unload.
  • Delivery: Will be delivered truck and will require a forklift to unload. You must have a forklift to unload from truck.

https://www.bendpak.com/BendPak-Products-Flatbed-Exclusive.pdf

https://www.bendpak.com/BendPak-Delivery-Information-Form.pdf

Fork Lift Required for Delivery

In the Box

Guides & Accessories

Instructions

<p><a href="https://www.bendpak.com/XPR-10-Series-Two-Post-Lift-Manual-5900951-BendPak.pdf" target="_blank"><i><b>User Manual for Part # 32679</b></i></a></p>
