Item #
32662
BRAND: BendPak

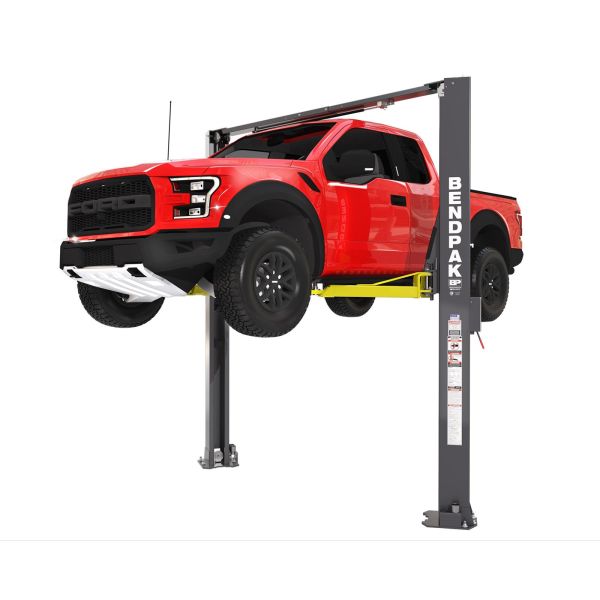

BendPak XPR-10AXLS-LP - Clearfloor - Low Profile Arms - Extra Tall Lift - 10000 lb. Capacity 5175997
BendPak XPR-10AXLS-LP - Clearfloor - Low Profile Arms - Extra Tall Lift - 10,000 lb. Capacity 5175997
BendPak XPR-10AXLS-LP - Clearfloor - Low Profile Arms - Extra Tall Lift - 10,000 lb. Capacity 5175997
BendPak XPR-10AXLS-LP - Clearfloor - Low Profile Arms - Extra Tall Lift - 10,000 lb. Capacity 5175997
100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.
- • 90 Day Returns
- • Lifetime Tech Support
BendPak XPR-10AXLS-LP - Clearfloor - Low Profile Arms - Extra Tall Lift - 10000 lb. Capacity 5175997
Product Overview:
Description
The BendPak XPR-10AXLS-LP features direct drive technology for highly dependable and smooth operation. The two-stage telescoping screw pads improve the safety and durability. The dropped-end frame design and extremely low profile contact pads make this lift highly versatile.
Features:
- 10,000 lb. capacity
- Direct drive technology requires minimal moving parts, thus ensuring a highly reliable performance
- Triple-telescoping front arms and two-stage rear arms improves versatility
- Single-point safety release
- Auto shutoff
Warranty
Specifications
Capacity | |
Lifting Capacity* | 10,000 lbs. (4,536 kg) |
*Max Capacity / Front Axle | 5,000 lbs. (2,268 kg) |
*Max Capacity / Rear Axle | 5,000 lbs. (2,268 kg) |
Rise | |
A - Rise: | 75" (1,905 mm) |
B - Rise + Pad Only: | 79.75" (2,026 mm) |
C - Rise + Pad + 63 mm Adapter: | 82.75" (2,102 mm) |
D - Min. Height + Pad: | 4.75" (121 mm) |
Time to Full Rise: | 50 seconds |
Outside Dimensions | |
E - Height Overall: | 157" (3,988 mm) |
F - Width Overall: | 137" (3,480 mm) or 145" (3,683 mm) |
G - Outside Columns: | 133.25" (3,385 mm) or 141.25" (3,588 mm) |
Inside Dimensions | |
H - Inside Columns: | 106.25" (2,699 mm) or 114.25" (2,902 mm) |
I - Drive-Thru Clearance: | 93.75" (2,381 mm) or 101.75" (2,584 mm) |
J - Floor To Overhead Switch: | 147" (3,734 mm) |
Arms & Pads | |
K - Front Arm Reach: (MIN) | 23.5" (597 mm) |
K - Front Arm Reach: (MAX) | 43.75" (1,111 mm) |
L - Rear Arm Reach: (MIN) | 40.25" (1,022 mm) |
L - Rear Arm Reach: (MAX) | 58" (1,473 mm) |
Screw Pad Adjustment: | 2" (51 mm) |
Max Load Per Arm | 2,500 lbs. (1,134 kg) |
Power Unit | |
Motor: | 220 VAC / 60 Hz / 1 Ph |
Noise: | 45 dB |
Shipping & Handling
- Delivery Time: This item ships directly from the manufacturer - Please allow 2-3 weeks for delivery time
- Residential Delivery: This item may only be shipped to a business address and a forklift must be available to unload.
- Delivery: Will be delivered truck and will require a forklift to unload. You must have a forklift to unload from truck.Â
https://www.bendpak.com/BendPak-Products-Flatbed-Exclusive.pdf
https://www.bendpak.com/BendPak-Delivery-Information-Form.pdf
In the Box
Guides & Accessories
Instructions
Reviews
Questions & Answers
BendPak XPR-10AXLS-LP - Clearfloor - Low Profile Arms - Extra Tall Lift - 10000 lb. Capacity 5175997
$5,650.00
In Stock
