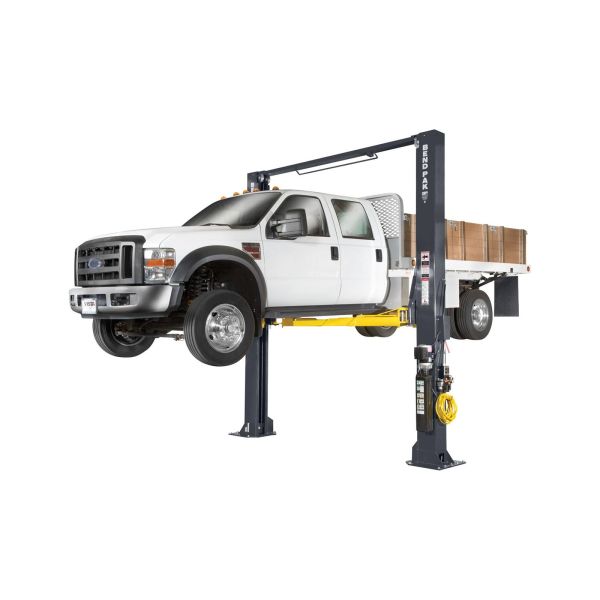

BendPak XPR-10XLS - Clearfloor - Low Profile Arms - Extra Tall Lift - 10000 lb. Capacity 5175194

BendPak XPR-10XLS - Clearfloor - Low Profile Arms - Extra Tall Lift - 10,000 lb. Capacity 5175194
BendPak XPR-10XLS - Clearfloor - Low Profile Arms - Extra Tall Lift - 10,000 lb. Capacity 5175194
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 30.56ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
$5,960.00
Loading...
Loading...
Save for Later
BendPak XPR-10XLS - Clearfloor - Low Profile Arms - Extra Tall Lift - 10,000 lb. Capacity 5175194

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • 90 Day Returns
  • • Lifetime Tech Support
BendPak XPR-10XLS - Clearfloor - Low Profile Arms - Extra Tall Lift - 10000 lb. Capacity 5175194

Product Overview:

Description

Symmetrical Lift Offers MORE Lifting Height

Tall techs no longer have to strain themselves while they work. The XPR-10XLS is a high-reach symmetrical two-post lift that can be customized with an optional extension kit and/or Low-Pro arms. Perfect for vehicles of all sizes. A must-have tool to help taller techs stand upright while they work.

With BendPak's 10,000-lb. capacity XPR-10XLS symmetrical two-post lift in your shop, most cars, trucks and SUVs will be raised quickly and effortlessly. Fully ALI Certified, this model features an extra-high lifting carriage. The taller carriage offers an extra 6" of lift, which means vehicles can be raised a full 75" (about 80" with adapters). Taller mechanics will enjoy this feature, since it means they no longer have to bend, stoop, strain and even injure themselves while they spend hour after hour working underneath lifted vehicles.

There's no car lift quite like the XPR-10XLS. This is the symmetrical version (an asymmetrical version is also available), and it's ideal for shops and operators that deal mainly with vehicles whose centers of gravity are toward the center of the car. Of course, trucks and SUVs can be used with this model as well. Some prefer asymmetrical lifts because they allow a little more door clearance, while other prefer vehicles to be positions as close to the center of the lift as possible. There's no right or wrong—the choice is yours!

Features:

  • 10,000-lb. lifting capacity
  • Expandable top beam accommodates wide or narrow configuration
  • Double-telescoping screw pads offer increased versatility
  • Padded overhead safety shutoff bar
  • Single-piece columns
  • Dual hydraulic direct-drive cylinders
  • Automatic arm restraints
  • Lowered arm tube supports
  • Maintenance-free UHMW load bearings
  • Oversized 59" tall carriage for superior strength and durability
  • Electric / hydraulic power system
  • Large, 17" x 19" A36 steel base plate
  • Self-lubricating dura-glide UHMW polyethylene bearing system
  • Single-point safety release
  • Safety locks in each column spaced every 3"
  • Automatic overhead shutoff
  • Plated arm restraints and arm pins for rust prevention
  • Heavy-duty 1/2" aircraft-quality equalizer cables
  • Oversized cable sheave diameter reduces cable fatigue
  • 4-piece 63 mm stackable adapter set comes standard
  • ALI Certified

Warranty

Warranty

Specifications

Capacity
Lifting Capacity* 10,000 lbs. (4,536 kg)
*Max Capacity / Front Axle 5,000 lbs. (2,268 kg)
*Max Capacity / Rear Axle 5,000 lbs. (2,268 kg)
Rise
A - Rise: 75" (1,905 mm)
B - Rise + Pad Only: 79.75" (2,026 mm)
C - Rise + Pad + 63 mm Adapter: 82.25" (2,089 mm)
D - Min. Height + Pad: 4.75" (121 mm)
Time to Full Rise: 50 seconds
Outside Dimensions
E - Height Overall: 180.75" (4,589 mm)
F - Width Overall: 132" (3,353 mm) or 145" (3,683 mm)
G - Outside Columns: 126.75" (3,219 mm) or 139.75" (3,550 mm)
Inside Dimensions
H - Inside Columns: 105.5" (2,680 mm) or 118.5" (3,010 mm)
I - Drive-Thru Clearance: 93" (2,362 mm) or 106" (2,692 mm)
J - Floor To Overhead Switch: 176" (4,469 mm)
Arms & Pads
K - Front Arm Reach: (MIN) 25.5" (648 mm)
K - Front Arm Reach: (MAX) 49.5" (1,257 mm)
L - Rear Arm Reach: (MIN) 32.25" (819 mm)
L - Rear Arm Reach: (MAX) 52.5" (1,334 mm)
Screw Pad Adjustment: 2" (51 mm)
Max Load Per Arm 2,500 lbs. (1,134 kg)
Power Unit
Motor: 220 VAC / 60 Hz / 1 Ph
Noise: 45 dB

Shipping & Handling

  • Delivery Time: This item ships directly from the manufacturer - Please allow 2-3 weeks for delivery time
  • Residential Delivery: This item may only be shipped to a business address and a forklift must be available to unload.
  • Delivery: Will be delivered truck and will require a forklift to unload. You must have a forklift to unload from truck.

https://www.bendpak.com/BendPak-Products-Flatbed-Exclusive.pdf

https://www.bendpak.com/BendPak-Delivery-Information-Form.pdf

Fork Lift Required for Delivery

In the Box

Guides & Accessories

Instructions

<p><a href="https://www.bendpak.com/XPR-10-Series-Two-Post-Lift-Manual-5900951-BendPak.pdf" target="_blank"><i><b>User Manual for Part # 32683</b></i></a></p>
