Product Overview:

Description

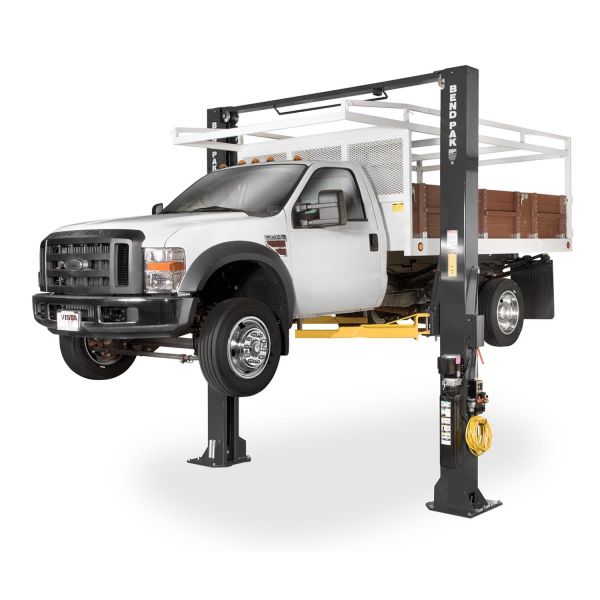

The XPR-15CL two-post car lift offers 15,000 lbs. of lifting power. Not only does this lift let you operate on low-profile cars, it has the ability to lift some extremely heavy trucks and vans. 15,000 lbs. is enough to lift a dump truck, so you’re covered on most lifting applications.

Extreme Lifting Power in our Classic Two-Post Lift Design

With lift columns placed farther apart to accommodate wide truck mirrors, even full-size pickups are a cinch to lift. If this is the last lift you ever purchase, you’re going to have it with you for a long, long time.

With a BendPak car lift, expect incredibly fast rise and descent speeds, as well as the ability to open doors without banging them against the lift columns. The XPR-15CL comes with the same safety features as our other XPR series lifts. Easy-to-use, friendly interfaces come with the best customer service and installation teams in the business. From the breezy ordering process to delivery and installation, BendPak makes getting a powerful lift that fits in your garage a hassle-free experience.

Clearfloor convenience
Designed to allow users the freedom to move freely underneath the lift, this model features our Clearfloor design. The hydraulic lines run overhead, safely tucked inside the top crossbeam.

Dual direct-drive technology
By utilizing two low-pressure HVLP direct-drive cylinders, we've eliminated the need for lifting chains or screw mechanisms commonly found on other lift designs. HVLP direct-drive technology offers better reliability, smoother operation and less maintenance. High-volume and low-pressure equates to less workload placed on the entire hydraulic system.

Industrial-grade hydraulic cylinders
BendPak hydraulic cylinders are made from pilot-fitted, machined steel pistons wrapped with specially designed, pressure-loaded U-cup piston seals, backups and wear bands that do not allow fluid to bypass back across the tubing. The rod is composed of C-1045/50 micro-alloy steel and plated to a minimum of .001" diametrically. Our high-durometer, mechanically loaded rod seals prevent rods from leaking, and a urethane rod wiper provides exclusion protection. The cylinder body is welded from high-grade steel and meets/exceeds ASTM specifications.

Super-duty telescoping arms
If you’re looking at the XPR-15CL, we know you might be servicing some extremely heavy equipment: garbage trucks, large fleet vans, small buses and more. The telescoping arms on this two-post lift have you covered to safely lift up to 15,000 lbs.

Low-profile, dropped-end frame contact pads
Sports cars and low-profile compact vehicles are no problem for the XPR-15CL. If we raised the lift capacity but lost the ability to service more commonly used vehicles, we’d really be doing ourselves (and you) a disservice. BendPak’s heavy-duty lifts expand your lifting potential; we don’t simply swap light-duty capability for heavy-duty capability as you move up the chain.

16-Piece adapter set / standard
Every two-post lift comes standard with our 16-piece adapter set, so you never have to worry about lift points that are too high or too low. You’ll get eight stackable adapters, four 3” and four 6”, as well as eight cradle pads (four polyurethane pads and four cradle pads). If you’re lifting trucks or vans with running boards or auxiliary fuel tanks, the adapter set is must-have, and it comes at no extra cost to you!

Lowered arm tube supports
Because the dimensions on the XPR-15CL are expanded to accommodate larger-type vehicles, BendPak designed the arm tube supports low enough to accommodate small vehicles. There’s no point in having a workhorse that handles heavy stuff but not lighter s

Warranty

Warranty

Specifications

Capacity
Lifting Capacity* 15,000 lbs. (6,804 kg)
*Max Capacity / Front Axle 7,500 lbs. (3,402 kg)
*Max Capacity / Rear Axle 7,500 lbs. (3,402 kg)
Rise
A - Rise: 69" (1,753 mm)
B - Rise + Pad Only: 74" (1,880 mm)
C - Rise + Pad + 63 mm Adapter: 80" (2,032 mm)
D - Min. Height + Pad: 5" (127 mm)
Time to Full Rise: 45 seconds
Outside Dimensions
E - Height Overall: 170" (4,318 mm)
F - Width Overall: 155" (3,937 mm)
G - Outside Columns: 144" (3,658 mm)
Inside Dimensions
H - Inside Columns: 120" (3,048 mm)
I - Drive-Thru Clearance: 106" (2,692 mm)
J - Floor To Overhead Switch: 165" (4,191 mm)
Arms & Pads
K - Front Arm Reach: (MIN) 39" (991 mm)
K - Front Arm Reach: (MAX) 60" (1,524 mm)
L - Rear Arm Reach: (MIN) 39" (991 mm)
L - Rear Arm Reach: (MAX) 60" (1,524 mm)
Max Load Per Arm 3,750 lbs. (1,701 kg)
Power Unit
Motor: 220 VAC / 60 Hz / 1 Ph
Noise: 45 dB

Shipping & Handling

  • Delivery Time: This item ships directly from the manufacturer - Please allow 2-3 weeks for delivery time
  • Residential Delivery: This item may only be shipped to a business address and a forklift must be available to unload.
  • Delivery: Will be delivered truck and will require a forklift to unload. You must have a forklift to unload from truck.

https://www.bendpak.com/BendPak-Products-Flatbed-Exclusive.pdf

https://www.bendpak.com/BendPak-Delivery-Information-Form.pdf

Fork Lift Required for Delivery

In the Box

Guides & Accessories

Instructions

<p><a href="https://www.bendpak.com/XPR-12CL-15CL-18CL-Two-Post-Lift-Manual-5900370-BendPak.pdf" target="_blank"><i><b>User Manual for Part # 32658</b></i></a></p>
