Description

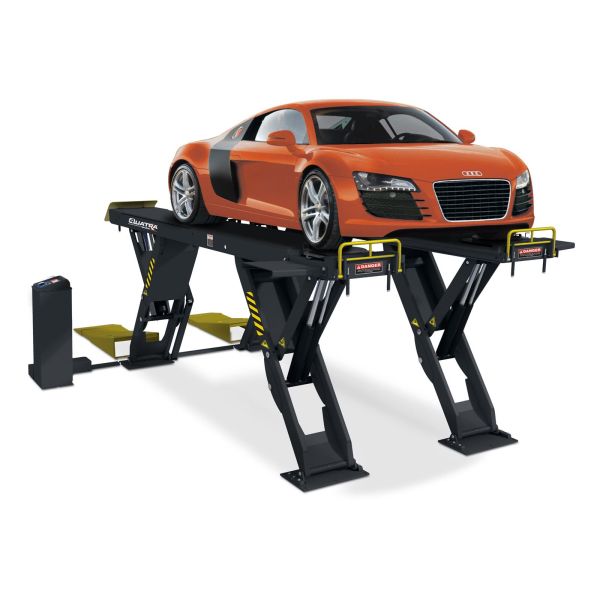

The Quatra™ Alignment Raises the Bar

The Quatra™ XR-12000AL car lift revolutionizes the industry by offering a 12,000-lb. lift capacity and true vertical lift for a more compact footprint, as well as smaller, more accommodating service bays and work areas. Its unique quad-opposing pantograph scissor design eliminates restrictive arm structures found on other scissor lift types that typically get in the way. The Quatra offers full, unobstructed vehicle access and effortless workspace entry and exit. More space means more freedom for you to work efficiently, which increases productivity profit. No other scissor lift on the market offers the freedom that BendPak’s alignment Quatra lift provides.

The extended-length Quatra XR-12000AL is designed for vehicle alignments and general service work and accommodates a wide variety of wheelbases. Integrated, recessed full-floating front radius plates and oversized rear slip plates enable you to perform four-wheel alignments on a full spectrum of vehicles, ranging from full-size work trucks to compact cars. The Quatra XR-12000AL is also compatible with all leading alignment instrumentation, including 3D systems and camera wheel aligners.

The Quatra delivers straight-up vertical lifting, unlike parallelogram style scissor lifts that require more floor space due to their lateral lifting characteristics. Because there is no forward or rearward movement, the result is a more compact footprint that accommodates smaller service bays and work areas.

Compared to traditional scissor lifts, the Quatra delivers:

  • Increased work space below the car lift and around the runways
  • Unobstructed access points for easy entry and exit from the front, rear and both sides
  • Upfront walk-through for unhindered adjustments

Features:

  • 12,000-lb. lifting capacity
  • Extended runway design for greater vehicle capacity
  • Integrated recessed full-floating front radius plates and over-sized rear slip-plates
  • Turn plate pockets feature adjustable leveling bolts for infinite turn plate leveling
  • Durable powder-coat finish that can withstand harsh environments and chemical spills and will provide years of protection
  • Extendable, hinged, collapsible, and stowable approach ramps
  • Multi-position runway work steps
  • Non-skid runways provide sure grip for vehicles and technicians
  • Dependable electric/hydraulic power system
  • Cylinders feature integrated velocity fuses to control sudden descent
  • Power console features simple operator controls
  • Open front design with clear center, sides and rear
  • Multi-position automatic leveling system
  • Quad automatic safety locks with pneumatic push-button release
  • Collapsible front tire stops clear for low vehicle skirts and alignment instrumentation
  • Lubricated-for-life bearings on all pivot points
  • Rugged steel legs and formed steel runways
  • Turned, ground, polished and hardened zinc- plated axle pins
  • Grease nipples on all moving pins and bearings
  • High-efficiency hydraulic power unit provides faster raising and descent times
  • Easy access to hydraulic/electrical components for simple routine servicing
  • Easy-to-use and understand operator controls
  • Power unit console with easy access front panel
  • Can be flush-mounted or recessed

Specifications

<table class=''specs''> <tbody> <tr> <td><strong>Capacity</strong></td> </tr> <tr> <td>Lifting Capacity*</td> <td>12,000 lbs. (5,443 kg)</td> </tr> <tr> <td>*Max Capacity / Front Axle</td> <td>6,000 lbs. (2,722 kg)</td> </tr> <tr> <td>*Max Capacity / Rear Axle</td> <td>6,000 lbs. (2,722 kg)</td> </tr> <tr> <td><strong>Rise</strong></td> </tr> <tr> <td>A - Min. Runway Height:</td> <td>11.25'' (286 mm)</td> </tr> <tr> <td>B - Max. Rise:</td> <td>75.25'' (1,911 mm)</td> </tr> <tr> <td>C - Overall Width</td> <td>89.5” (2,274 mm)</td> </tr> <tr> <td>D - Length / Ramps Extended</td> <td>300.25” (7,626 mm)</td> </tr> <tr> <td>D - Length / Ramps Collapsed</td> <td>283.25” (7,201 mm)</td> </tr> <tr> <td>D - Length / Ramps Stowed</td> <td>250” (6,350 mm)</td> </tr> <tr> <td>E - Runway Width</td> <td>23.75” (604 mm)</td> </tr> <tr> <td>F - Width Between Runways</td> <td>40.5” (1,029 mm)</td> </tr> <tr> <td>G - Length of Runways</td> <td>219.5” (5,575 mm)</td> </tr> <tr> <td>H - Min. 4-Wheel Alignment</td> <td>87” (2,210 mm)</td> </tr> <tr> <td>I - Max. 4-Wheel Alignment</td> <td>160” (4,064 mm)</td> </tr> <tr> <td>J - Max. 2-Wheel Alignment</td> <td>194” (4,928 mm)</td> </tr> <tr> <td>K - General Service Wheelbase</td> <td>199” (5,055 mm)</td> </tr> <tr> <td><strong>Minimum Wheelbase</strong></td> </tr> <tr> <td>Rated Capacity:</td> <td>155'' (3,937 mm)</td> </tr> <tr> <td>75% Capacity:</td> <td>135'' (3,429 mm)</td> </tr> <tr> <td>50% Capacity:</td> <td>110'' (2,794 mm)</td> </tr> <tr> <td>25% Capacity:</td> <td>90'' (2,286 mm)</td> </tr> <tr> <td><strong>Locking</strong></td> </tr> <tr> <td>Locking Positions:</td> <td>14</td> </tr> <tr> <td><strong>Power Unit</strong></td> </tr> <tr> <td>Motor:</td> <td>220 VAC / 60 Hz / 1 Ph</td> </tr> <tr> <td>Noise:</td> <td>45 dB</td> </tr> </tbody> </table>

Warranty

<p><a href="https://www.bendpak.com/Full-Rise-Scissor-Lift-Warranty-BendPak.pdf" target="_blank"><i><b>Warranty</b></i></a></p>

Instructions

<p><a href="https://www.bendpak.com/XR-12000-Series-Quatra-Scissor-Lift-Manual-5900050-BendPak.pdf" target="_blank"><i><b>User Manual for Part # 32709</b></i></a></p>
