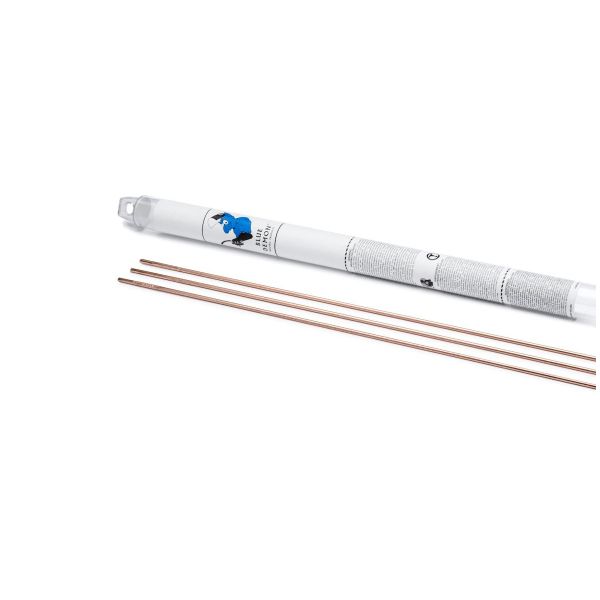

Blue Demon ER70S-6 Carbon Steel Tig Rod 1/8in x 36in x 1 lb ER70S6-125-01T
100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.
- • Lifetime Tech Support
Price for all checked items:
Product Overview:
Description
ER70S6 is a mild steel welding wire that contains higher levels of manganese and silicon than other standard grades of MIG wire to product high quality welds when used on dirty, oily, or rusty steel. The high silicon content increases the fluidity of the weld pool, thus creating a smoother bead appearance and resulting in minimal post-weld grinding. This wire is engineered to provide porosity-free, x-ray quality welds at the highest tensile strength (as welded) of all the plain carbon steel wires.
Typical Applications: general shop applications with poor fit-up or rusty, oily plates; steel castings or forging salvage; home projects; sheet metal; tanks; construction work
Specifications
| AWS Class: | ER70S6 |
| Alloy: | ER70S6 |
| Certification: | AWS A5.18/A5.18M:2005 |
| ASME: | SFA A5.18 |
| Welding Position | F, V, OH, H |
| Current | DCEP |
| Tensile Strength, kpsi: | 70 |
| Yield Strength, kpsi: | 58 |
| Elongation in 2"%: | 22 |
Typical Wire Chemistry as per AWS A5.18 (single values are maximum)
| C | Mn | Si | P | S | Ni | Cr | Mo | V | Cu |
| 0.06-0.15 | 1.40-1.85 | 0.80-1.15 | 0.025 | 0.035 | 0.15 | 0.15 | 0.15 | 0.03 | 0.5 |
| Typical Welding Parameters | ||||||
| Diameter | Process | Volt | Travel Speed | Amps | Shielding Gas | |
| in | (mm) | (ipm) | ||||
| .035 | (0.9) | GMAW | 23-26 | 11-22 | 160-300 | Spray Transfer 98% Argon+2% Oxygen |
| .045 | (1.2) | GMAW | 23-29 | 12-21 | 170-375 | Spray Transfer 98% Argon+2% Oxygen |
| 1/16 | (1.6) | GMAW | 25-31 | 9-19 | 275-475 | Spray Transfer 98% Argon+2% Oxygen |
| .023 | GMAW | 14-19 | 10-15 | 30-85 | Short Circuiting Transfer 98% Argon+2% Oxygen | |
| .030 | (0.8) | GMAW | 15-20 | 12-24 | 40-130 | Short Circuiting Transfer 98% Argon+2% Oxygen |
| .035 | (0.9) | GMAW | 16-25 | 11-40 | 60-235 | Short Circuiting Transfer 98% Argon+2% Oxygen |
| .045 | (1.14) | GMAW | 18-23 | 12-22 | 90-290 | Short Circuiting Transfer 98% Argon+2% Oxygen |
| .035 | (0.9) | GTAW | 12-15 | N/A | 60-100 | 100% Argon |
| .045 | (1.14) | GTAW | 13-16 | N/A | 70-120 | 100% Argon |
| 1/16 | (1.6) | GTAW | 12 | N/A | 100-160 | 100% Argon |
| 1/16-3/32 | (1.6)-(2.4) | GTAW | 12 | N/A | 120-250 | 100% Argon |
| 1/8 | (3.2) | GTAW | 12 | N/A | 150-300 | 100% Argon |
