EWP (Pure) are unalloyed tungsten electrodes (99.5%tungsten minimum) and are non radioactive. Their current-carrying capacity is lower than those of other tungsten electrodes. They provide good stability when used with AC, either balanced wave or continuously high frequency stabilized. They may be used with DC and also with either Ar or He, or a combination of both, as a shielding gas. They maintain a clean, balled end, which is preferred for aluminum and magnesium welding. These electrodes have reasonably good resistance to contamination of the weld metal by the electrode, although the oxide containing electrodes are superior in this respect. EWP electrodes are generally used on less critical applications, except for welding Al and Mg. The lower cost EWP electrodes can be used for less critical applications where some tungsten contamination of welds is acceptable.
Item #
59083
BRAND: Blue Demon

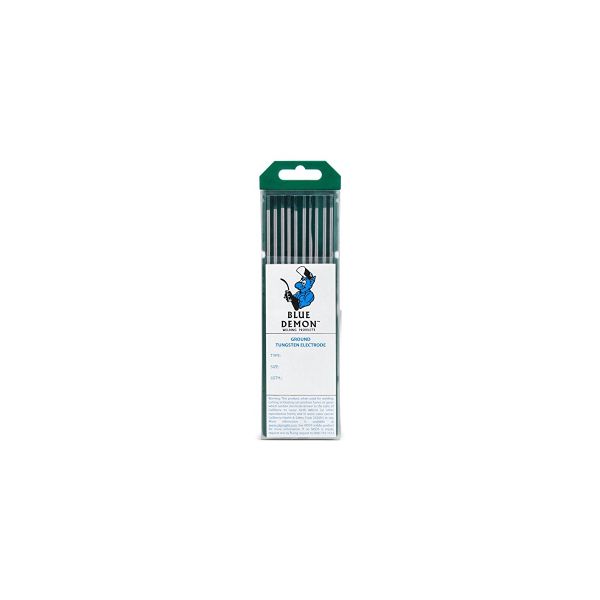

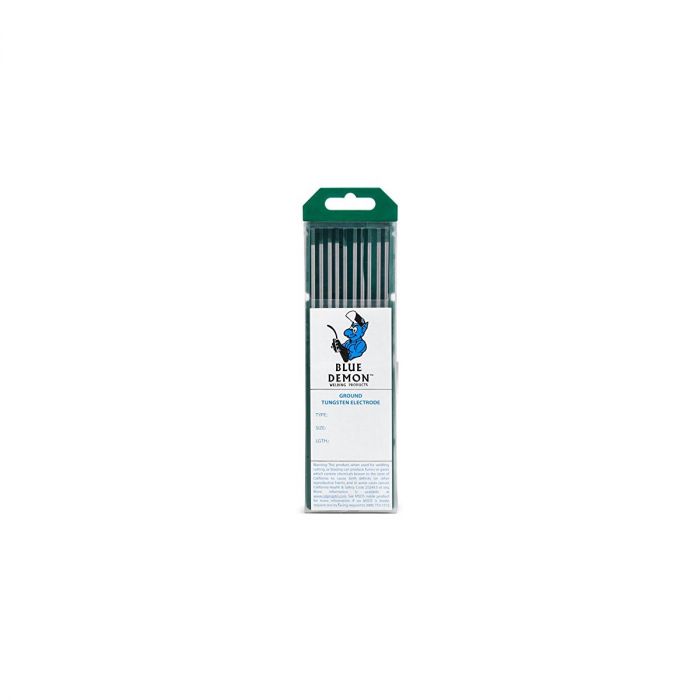

Blue Demon EWP Pure Tungsten Electrode 1/8in x 7in x 10 Pack TEP-18-10T
Brand:
Blue Demon
In stock
SKU
59083
EWP X 1/8in X 7in X 10 Pack (Pure) Tungsten Electrode
- Manufacturer Warranty Included
- 90 Day Returns + 100% Satisfaction Guarantee
- FREE Lifetime Tech Support
QUESTIONS? Talk to an Expert: 800-343-9353 |
Chat |
Email Us
QUESTIONS? Talk to an Expert: 800-343-9353 |
Chat |
Email Us
Description
specifications_ax
Chemical Composition Requirements
AWS A5.12M/A5.12:2009
Principle Oxide Addition | Mass Percent Oxide Addition | Impurities, Mass % | Tungsten, Mass % | Color Code |
None | N/A | 0.5 Max | 99.5 Min | Green |
*Note: Specifications are approximate and subject to change.
