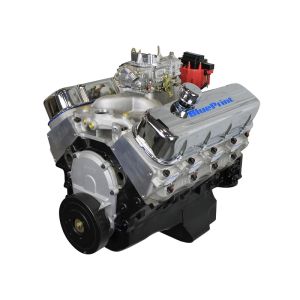

Blueprint Engine Complete Assembly 454 Base Dressed Carb BP454CTC
Manufacturer Warranty Included
100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.
- • Lifetime Tech Support
Price for all checked items:
Product Overview:
Description
- HP & Torque: 460 HP / 479 FT LBS
Compression Ratio: 9.85 to 1
Aluminum Heads
Hydraulic Roller Cam
Forged Crank
Hypereutectic Pistons
NOTES:
-
This engine is an excellent cruiser and daily driver engine. This engine makes up to 15 inches of vacuum, and is designed to work excellent with power brakes, stock torque converter, stock gearing, and run on 87 octane fuel. Features External 42.5 oz. imbalance. Recommend GM flywheel 14096987, or TCI flexplate 399973.
Warranty
WARRANTY:
- 30 month / 50,000 mile
Specifications
BLOCK:
- NEW BluePrint Cast Iron Block, 454 BBC
Manufactured and Machined in the USA!
4-Bolt Main
4.250" Bore
1-Piece Rear Main Seal
Mech fuel pump provision: Yes
Standard Deck
ROTATING ASSEMBLY:
- New BluePrint Forged Crankshaft
4.000" Stroke 4.250" Bore
6.385" connecting rods w/ 150,000 psi bolts
Hypereutectic pistons
External
CYLINDER HEADS:
- BluePrint Aluminum Cylinder Heads - PS8013
119cc chamber
2.30" intake/1.88" exhaust valves
316cc intake/124cc exhaust runners - Cylinder heads feature a .300 in. raised exhaust port vs an OEM casting.
- Must verify header/exhaust clearance
CAM SPECS:
- Cam Type: Roller
.501 Intake .510 Exhaust
216 Intake / 228 Exhaust duration
@ .050 - 112 degree lobe separation
IGNITION TIMING:
- 10-16° inital and total timing 32-36° at 3500 RPM
In the Box
Contents
ALSO INCLUDES:
- Intake Manifold single plane, satin aluminum
850cfm Carburetor
Valve covers, oil pan and timing cover
Dyno test results shipped with engine
Guides & Accessories
Instructions
Click here to visit BluePrint Engine's Tech Support, Installation Guides, and Tech Tips
Click the following GM Performance Crate Engine Cross Reference Guides to download:
GM Performance to BluePrint Engines Cross - Big Block - Chevy
GM Performance to BluePrint Engines Cross - Small Block - Chevy
GM Performance to BluePrint Engines Cross - LS Engines
Click here for to download an interactive spreadsheet for the GM Performance Crate Engine Cross Reference
