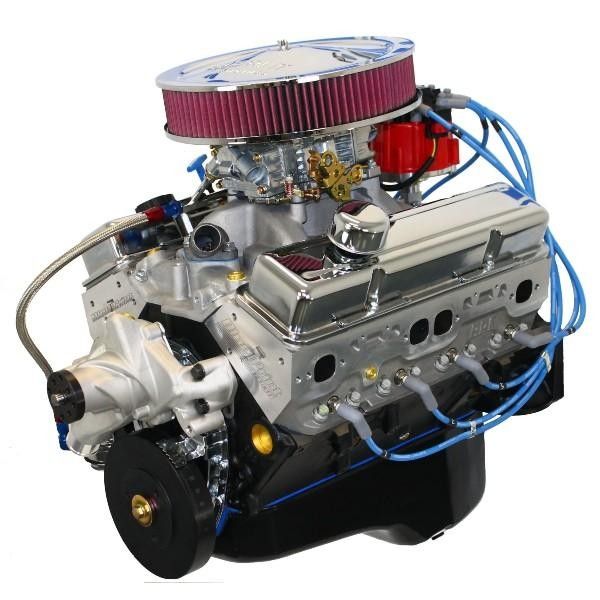

BluePrint Engines 350 ci. 341 HP Fully Dressed Crate Engine BP350CTCD
Manufacturer Warranty Included
100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.
- • 90 Day Returns
- • Lifetime Tech Support
Product Overview:
Description
- HPand Torque: 341 HP / 371 FT LBS
- Compression Ratio: 9.0:1
- Aluminum Heads
- Hydraulic Roller Cam
- Cast Iron Crankshaft
- Hypereutectic Pistons
Block:
- NEW BluePrint Cast Iron Block
- Manufactured and Machined in the USA!
- 4-Bolt Main
- 4.000" Bore
- 1-Piece Rear Main Seal
- Mech fuel pump provision: Yes
- Passenger Side Dipstick
- Drilled and tapped for clutch linkage
Rotating Assembly:
- Cast Iron Crankshaft
- 3.480" Stroke
- Forged5.700" connecting rods
- Hypereutectic pistons
- Internal Front/ External Rear engine balance
Cylinder Heads:
- BluePrint Aluminum Cylinder Heads - H8002K
- 64cc chamber
- 2.02" intake/1.60" exhaust valves
- 195cc intake/75cc exhaust runners
Cam Specs:
- Cam Type: Roller
- .477 Intake .471 Exhaust
- 202 Intake / 212 Exhaust duration
- @ .050 - 115 degrees lobe separation
Ignition Timing
- 32 degreess Total at 3500 RPM
Notes
Warranty
Click here for warranty information
Specifications
RECOMMENDATIONS
Your BluePrint engine was dyno tested with the parts and specifications listed below. If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.
- Part Number: BP350CTCD
- Fuel Delivery Type: 600 cfm Carburetor BPP080457SA
- Spark Plug: BPP7938 NGK 7938 BKR5E
- Spark Plug Gap: .035"
- Harmonic Balancer: Recommend BPP350 - Non Weighted, 8" diameter
- Flexplate/Flywheel: Recommend Late 350 Weighted BPP871006
- Stall Converter: Stock
- Intake Manifold: Dual plane, aluminum BPP350VINT
- Fuel Recommendation: 87 Octane
- Timing (Initial/Total Advance): Initial timing - 10-16° and Total timing 32°
- Firing Order: 1,8,4,3,6,5,7,2
- Recommended Break in Oil: BPP710
- Recommended Service Oil: BPP10W30
- Recommended Oil Filter: BPP51061
- Total Oil capacity with production oil pan, and Correct BPP51061 Filter: 5 Quarts
In the Box
Contents
- Valve covers
- Harmonic balancer
- Spark plugs
- Spark plug wires
- Standard Rotation Long Style Water Pump
- Waterneck and Thermostat
- Fuel Pump
- Oil pan
- Timing cover
- Aluminum intake
- HEI distributor
- 600 cfm carburetor
- Dyno test results shipped with engine
Guides & Accessories
Instructions
Click here to visit BluePrint Engine's Tech Support, Installation Guides, and Tech Tips
Click the following GM Performance Crate Engine Cross Reference Guides to download:
GM Performance to BluePrint Engines Cross - Big Block - Chevy
GM Performance to BluePrint Engines Cross - Small Block - Chevy
GM Performance to BluePrint Engines Cross - LS Engines
Click here for to download an interactive spreadsheet for the GM Performance Crate Engine Cross Reference
