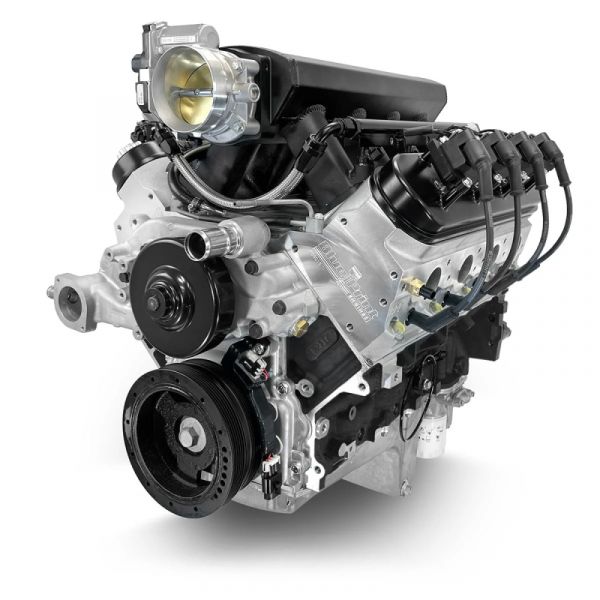

Horsepower & Torque: 600 Horsepower / 530 FT. LBS. Torque

Cylinder Heads: BluePrint Engines LS3 Aluminum Cylinder Heads

Compression Ratio: 11:1

Camshaft: Hydraulic Roller Cam - .624 Intake / .624 Exhaust Lift and 239 Intake / 255 Exhaust Duration @ .050 - 114° LSA - Three Bolt Cam

Pistons: Forged

Crankshaft: Steel Crank - 4.125 in. Stroke and 6.125 in. Rods

• Horsepower & Torque: 600 Horsepower / 530 FT LBS
• Compression Ratio: 11:1
• Aluminum Heads
• Hydraulic Roller Cam
• Forged Crank
• Forged Pistons

Block:

• BluePrint Engines High Strength Cast Iron Block
• Increased Deck Thickness and Strength Webbing
• Extended Cylinder Skirt
• Priority Main Oiling
• 4.0685 in. Bore
• 6-Bolt Main
• 1-Piece Rear Main Seal
• Improved Water Jacket Design
• Utilizes OEM LS3 Front and Rear Covers.

Rotating Assembly:

• New Forged Crankshaft
• 4.125 in. Stroke
• Forged 6.125 in. Connecting Rods
• Forged Pistons
• Internally Balanced Front and Rear

Cylinder Heads:

• BluePrint Aluminum Cylinder Heads -PS8015
• 69cc Chamber
• 2.165 in. Intake / 1.590 in. Exhaust Valves
• 259cc Intake / 102cc Exhaust Runners

Cam Specs:

• Hydraulic Roller
• .624 Intake / .624 Exhaust Lift
• 239 Intake / 255 Exhaust Duration
• @.050-114 Degree Lobe Separation

Also Includes:

• Valve Covers
• Retro Fit Oil Pan
• Timing Cover
• Drive by Wire Throttle Body
• LS3 Fabricated Intake Manifold
• Injectors and Fuel Rail Kit
• Coil Packs
• Spark Plugs and Wires
• Water Pump
• Harmonic Balancer

Notes:

• This engine requires a non-weighted flex plate/flywheel.
• Recommended fuel: 91 Octane.
• BluePrint Engines recommends a 2200+ RPM stall converter.
• Retro fit oil pan will fit most 1955-1995 GM front engine, RWD, V8 cars.
• Not for use in pollution-controlled vehicles or in dry sump applications.
• Does NOT include engine controller. This is a dressed long block only. No Harness/ECU provided. This is for customers wishing to use their own engine controller package.
• BluePrint Engines Recommends Air Intake Kit BPPLS01013.
