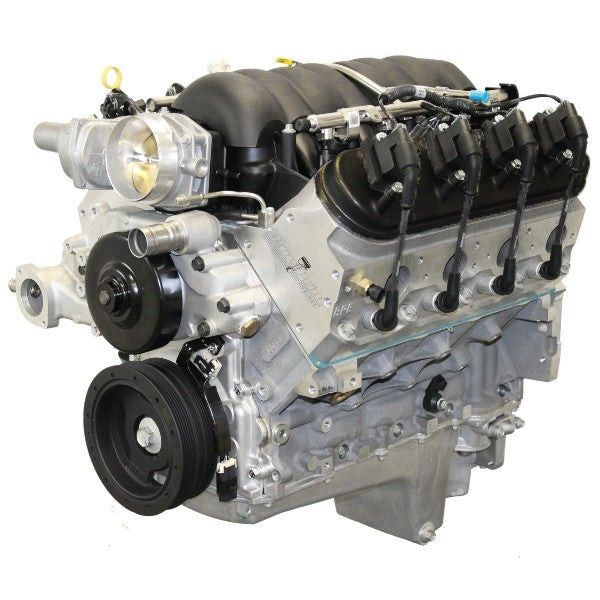

BluePrint Engines Chevy LS 376 ci. 530 HP EFI Dressed Long Block Crate Engine PSLS3760CTF
Manufacturer Warranty Included
100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.
- • Lifetime Tech Support
Product Overview:
Description
- HP and Torque: 530 HP / 495 FT LBS
- Compression Ratio: 10.7:1
- Aluminum Heads
- Hydraulic Roller Cam
- Nodular Iron Crankshaft
- Hypereutectic Pistons
Block:
- New GM Aluminum 6.2L block
- OEM Block Machined in the USA!
- 6-Bolt Main
- 1-Piece Rear Main Seal
Rotating Assembly:
- Nodular Iron crankshaft
- 3.622" Stroke
- 6.098" connecting rods w/ 150,000 psi bolts
- Hypereutectic Pistons
- Internally Balanced
Cylinder Heads:
- BluePrint Aluminum Cylinder Heads -PS8015
- 72cc chamber
- 2.165" intake/1.600" exhaust valves
- 259cc intake/102cc exhaust runners
Cam Specs:
- Cam Type: Roller Cam
- .612 Intake .585 Exhaust
- 225 Intake / 238 Exhaust duration
- @ .050 - 113 degrees lobe separation, 110 ICL
Notes
- Engine is not shipped with Engine controller kit. Must purchase separately for your application.
- BluePrint Engines Recommends Air Intake Kit BPPLS01013 to ensure correct MAF calculations and Dyno calibration are maintained with the above ECU / tuning.
Warranty
Click here for warranty information
Specifications
RECOMMENDATIONS
Your BluePrint engine was dyno tested with the parts and specifications listed below. If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.
- Part Number: PSLS3760CTF
- Fuel Delivery Type: Fuel Injection
- Spark Plug: Champion 3015
- Spark Plug Gap: .040"
- Harmonic Balancer: Non Weighted
- Flexplate/Flywheel: Non Weighted
- Stall Converter: 2200+
- Intake Manifold: N/A
- Fuel Recommendation: 91 Octane
- Timing (Initial/Total Advance):
- Firing Order: 1,8,7,2,6,5,4,3
- Notes: Recommended break in oil for your BluePrint Crate Engine: BPP710
- Engine features a 58x reluctor wheel and 4x cam sensor. Knock sensor provision located on side of block. Cam sensor located in timing cover. utilizes EV6 type injector
In the Box
Contents
- GM Musclecar Swap Oil Pan
- DBW Throttle Body
- Loaded Intake Manifold
- Fuel Injectors and Rail
- Coil Packs
- Spark Plugs and Wires
- Waterpump
- Harmonic Balancer
Guides & Accessories
Instructions
Click here to visit BluePrint Engine's Tech Support, Installation Guides, and Tech Tips
Click the following GM Performance Crate Engine Cross Reference Guides to download:
GM Performance to BluePrint Engines Cross - Big Block - Chevy
GM Performance to BluePrint Engines Cross - Small Block - Chevy
GM Performance to BluePrint Engines Cross - LS Engines
Click here for to download an interactive spreadsheet for the GM Performance Crate Engine Cross Reference
