Item # 63253 BRAND: BluePrint Engines

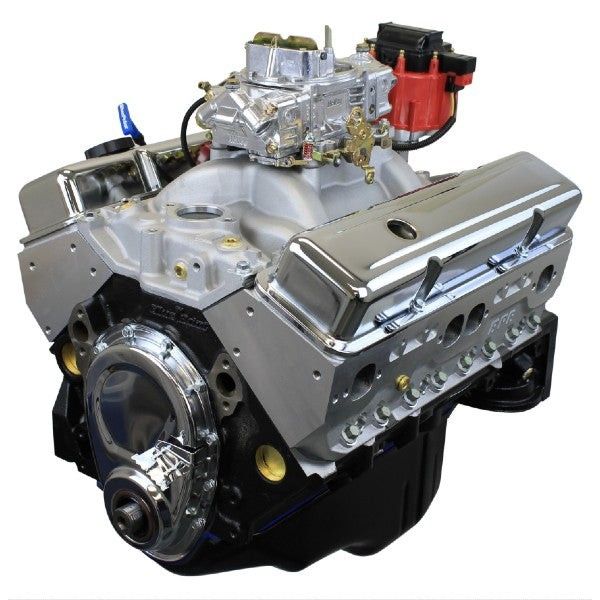

BluePrint Engines GM 396 ci. 491 HP Dressed Long Block Crate Engine BP3961CTC

396CI Stroker Crate Engine | Small Block GM Style | Dressed Longblock with Carburetor | Aluminum Heads | Roller Cam
396CI Stroker Crate Engine | Small Block GM Style | Dressed Longblock with Carburetor | Aluminum Heads | Roller Cam
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 4.16ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
$7,849.00
Loading...
Loading...
Save for Later
396CI Stroker Crate Engine | Small Block GM Style | Dressed Longblock with Carburetor | Aluminum Heads | Roller Cam

Manufacturer Warranty Included

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • 90 Day Returns
  • • Lifetime Tech Support
BluePrint Engines GM 396 ci. 491 HP Dressed Long Block Crate Engine BP3961CTC

Product Overview:

Description

  • HP and Torque: 491 HP / 509 FT LBS
  • Compression Ratio: 10.4:1
  • Aluminum Heads
  • Hydraulic Roller Cam
  • Forged Crank
  • Forged Pistons

Block:

  • NEW BluePrint Cast Iron Block
  • Manufactured and Machined in the USA!
  • Align honed main bearing bore
  • Cylinders honed on computer controlled machine to within .0002 straightness and roundness
  • Cylinders are sonic tested for thickness
  • 4-Bolt Main
  • 4.000" Bore
  • 1-Piece Rear Main Seal
  • Mech fuel pump provision: Yes
  • Passenger Side Dipstick
  • Drilled and tapped for clutch linkage

Rotating Assembly:

  • New BluePrint Forged Crankshaft
  • 3.875 " Stroke
  • Forged I-beam 6.000" connecting rods
  • Forged Pistons
  • Internal Front/ External Rear

Cylinder Heads:

  • BluePrint Aluminum Cylinder Heads - HP8103
  • 64cc chamber
  • 2.08" intake/1.60" exhaust valves
  • 220cc intake/67cc exhaust runners

Cam Specs:

  • Cam Type: Roller
  • .544 Intake .555 Exhaust
  • 230 Intake / 236 Exhaust duration
  • @ .050, 110 degrees lobe separation angle

Ignition Timing

  • 34 degreess total at 3500 RPM

Notes

  • Not for use in pollution controlled vehicles.
  • The Aftermarket intake manifold installed on this engine may not be compatible with OEM accessory brackets that use intake mounted bosses.
  • This engine features a true 4-inch bore, which mathematically yields 389 CID with a 3.875-inch stroke

Warranty

Click here for warranty information

Specifications

RECOMMENDATIONS

Your BluePrint engine was dyno tested with the parts and specifications listed below. If you prefer to install a different part, your engine may not produce the horsepower recorded on your dyno sheet.

  • Part Number: BP3961CTC
  • Fuel Delivery Type: Carbureted, 850cfm, manual choke
  • Spark Plug: BPP7938 NGK 7938 BKR5E
  • Spark Plug Gap: .035"
  • Harmonic Balancer: BPP350 - Non Weighted, 8" diameter
  • Flexplate/Flywheel: Late 350 Weighted
  • Stall Converter: 2000-2400 rpm
  • Intake Manifold: Dual plane, satin aluminum
  • Fuel Recommendation: 91 Octane
  • Timing (Initial/Total Advance): Initial timing - 10-16° and Total timing 32-34°
  • Firing Order: 1,8,4,3,6,5,7,2
  • Notes: Recommended break in oil for your BluePrint Crate Engine:BPP710, Not for EGR

In the Box

Contents

  • New valve covers, oil pan and timing cover
  • Aluminum Intake Manifold
  • HEI distributor
  • 850cfm Carburetor
  • Dyno test results shipped with engine
