Item # 21714 BRAND: CertiFlat

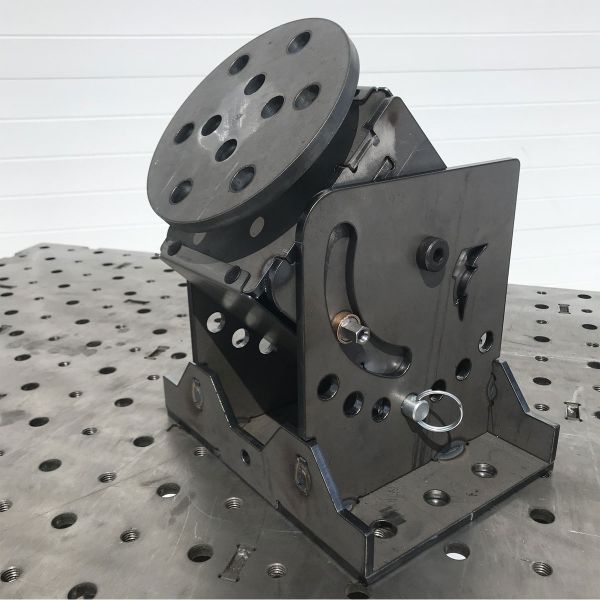

FabTurn DIY Welding Positioner Kit

DIY Welding Positioner Kit
DIY Welding Positioner Kit
FabTurn DIY Welding Positioner Kit is rated 5.0 out of 5 by 1.
  • y_2022, m_1, d_23, h_20
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.20
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_1
  • loc_en_US, sid_21714, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 11.27ms
  • REVIEWS, PRODUCT
$399.99
Loading...
Loading...
Save for Later
DIY Welding Positioner Kit
  • 90-Day Returns
  • Technical Support
  • 1 year Warranty
FabTurn DIY Welding Positioner Kit

Product Overview:

Description

The Certiflat Welding Positioner was designed to help you take your craft to the next level without breaking the bank! This one of a kind weld positioner kit is perfect for your shop.

The Certiflat DIY Weld Positioner Kit Features:

  • Designed and built in the U.S.A
  • Ultra-Strong 1/4" Thick A36 HRPO Prime Steel Chassis
  • 3/8" Thick Face Plate Working Surface (can be drilled, tapped & welded to)
  • Shafts are made in house out of 4140PH
  • Gears machined in the USA out of 4140PH and 1045 for long life
  • Fit 16MM and 5/8" Tooling Holes and Tables
  • Horizontal to Vertical locations with 15° increments
  • 6" Diameter Face plate set for mounting, can mount a 3-jaw chuck
  • Working Load Limit of 385 lbs. (balanced-vertical & horizontal)
  • Turntable is Ground Path Isolated to Protect Bearings, Shafts & Bushings
  • Easy to assemble, Goof Proof Tab and Slot DIY Kit
  • Capable of developing over 1000 ft./lbs. of rotational torque with most drills
  • Velcro cinch included for setting drill to that perfect speed

Certiflat eliminated the expensive components usually associated with traditional welding positioners, the motor and speed controller. Our welding turntable is powered by the variable speed drill you have already. This, combined with our proprietary Tab and Slot DIY Kit Construction; reduced costs by almost 75% compared to others.

Specifications

DIY Welding Positioner Kit
DIY Welding Positioner Kit
DIY Welding Positioner Kit
DIY Welding Positioner Kit
DIY Welding Positioner Kit
DIY Welding Positioner Kit
DIY Welding Positioner Kit
DIY Welding Positioner Kit

Shipping

This item ships directly from the manufacturer and is not available for store pickup. This product has a flat rate shipping charge that will show in the shopping cart when you add the destination.

In the Box

Contents

(1) Welding Positioner Kit

Guides & Accessories

Safety Information

Always wear hand, eye and face protection.

Reviews

Rated 5 out of 5 by from Well made Got the kit, easy to build, watch the video, very helpful
Date published: 2020-11-17
  • y_2022, m_1, d_23, h_20
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.20
  • cp_1, bvpage1
  • co_hasreviews, tv_0, tr_1
  • loc_en_US, sid_21714, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 12.67ms
  • REVIEWS, PRODUCT

Questions & Answers

How many amps can the ground withstand?

Asked by: Jonnie F
The ground on this positioner should be able to handle 350 amps.
Answered by: Kelly H
Date published: 2021-09-20

What is the output shaft diameter?

Asked by: Gurley Fabrication
My kit just arrived. Both input and output shaft diameters are .625, the input has a .433" hex head machined in.
Answered by: Gurley Fabrication
Date published: 2021-05-23

What’s the maximum weight of metal it can hold?

Asked by: Robertm90028
385lbs in the balanced, vertical and horizontal positions
Answered by: Kelly H
Date published: 2021-05-03

What is the gear reduction? Input to output.

Asked by: ddougl
While I don't know precisely, you can zoom in on the drawing of the worm gear and try to count the teeth. I'd estimate 45:1.
Answered by: Dangineer
Date published: 2020-06-01

How many pounds #21714??

Asked by: FERNANDO PENA
Upon arrival, this kit will weigh about 35 lbs.
Answered by: Kelly H
Date published: 2019-12-30

What's the lead time on this?

Asked by: Cedric
This product takes about two weeks to receive.
Answered by: SeanW
Date published: 2019-10-02

Could I add a DC Reversible Motor with controls for rpm speed to this?

Asked by: ltankrman
While this unit is designed to simply run off of a drill we see it possible to fabricate a dc motor directly to this turntable. Since this is outside the design parameters we wouldn't have any specifications on how build it.
Answered by: Scott C
Date published: 2021-07-27

Hi, can you recommend a chuck to go with this positioner?

Asked by: emesine
Unfortunately since we don't sell these chucks we can really just say that this utilizes a 6 inch diameter face so you would need to purchase an appropriate sized chuck.
Answered by: Kelly H
Date published: 2021-11-05
