Item # 59434 BRAND: Dannmar

Dannmar 10000 lb. Capacity 2 Post Lift D2 10C 5175314

D2-10C Symmetric 10,000-lbs. Capacity Two-Post Lift
D2-10C Symmetric 10,000-lbs. Capacity Two-Post Lift
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 9.45ms
  • REVIEWS, PRODUCT
  • bvseo-msg: HTTP status code of 404 was returned;
$5,134.22
Loading...
Loading...
Save for Later

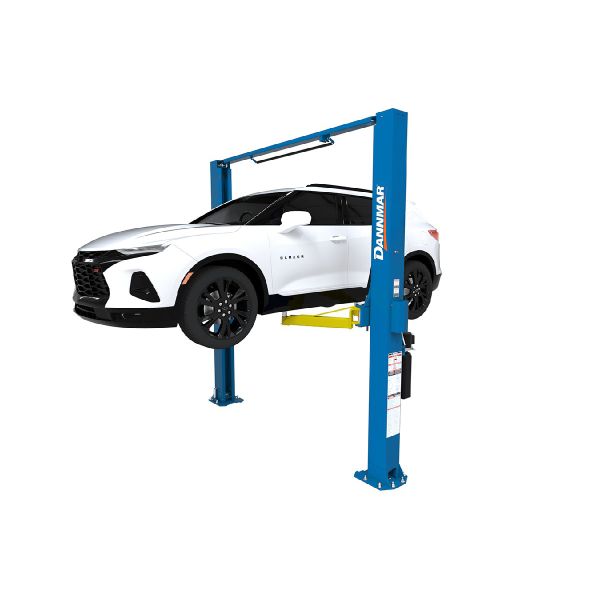

D2-10C Symmetric 10,000-lbs. Capacity Two-Post Lift

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • • 90 Day Returns
  • • Lifetime Tech Support
Dannmar 10000 lb. Capacity 2 Post Lift D2 10C 5175314

Product Overview:

Description

The Dannmar D2-10C two-post lift is a great choice in direct-drive lifting technology. Dannmar’s high-quality car lift utilizes the best components with the proven design to offer you a 10,000 lb. capacity lift.

Dannmar’s D2-10C symmetric two-post lift uses an adjustable top beam for wide or narrow installation setups. This feature allows choosing the best setting for your shop’s floor space. The design requires very little maintenance.

The D2-10C two-post lift features low-pressure HVLP direct-drive cylinders, so there is no need for lifting chains or screw mechanisms. The dual HVLP low-pressure cylinders minimize leakage and provide better reliability, smoother operation and fewer maintenance costs. High volume and low pressure equates to less workload placed on the entire hydraulic system. Direct-Drive technology uses fewer moving parts than a chain-over roller cylinder design. Pressurized hydraulic fluid flows from the power unit to the hollow cylinder rods, entering the cylinder body and filling its internal cavity. The pressure of the hydraulic fluid extends the piston rod downward, raising the cylinder body and lift carriages.

Features:

  • Electric / hydraulic power system
  • Large, 17" x 19" A36 steel base plate
  • Self-lubricating dura-glide UHMW polyethylene bearings
  • Safety locks in each column spaced every 3”
  • Automatic arm restraints
  • Heavy-duty 1/2" aircraft-quality equalizer cables
  • Oversized cable sheave diameter reduces cable fatigue
  • 4-piece 63 mm stackable adapter set comes standard
  • Padded overhead safety shutoff bar
  • Telescoping arm design for more versatile arm positioning
  • Single-point safety release
  • Drop-end arms provide a lower pad height
  • Dual hydraulic direct-drive cylinders
  • Oversized 53" tall carriage for superior strength
  • Versatile drop-in contact pads with stackable adapters.
  • ETL Approved

Specifications

Style: Symmetric
Lifting Capacity: 10,000 lbs. (4,536 kg)
A - Lowered Height + Pad: 5" (127 mm)
B - Max. Lift Height (Top Lock): 78.5" (1,994 mm)
C - Max. Rise: 69" (1,753 mm)
D - Height Overall: 145" (3,683 mm)
E - Width Overall: 145.25" (3,690 mm)
F - Width Outside Columns: 137.25" (3,486 mm)
G - Width Inside Columns: 118.25" (3,004 mm)
H - Drive-Thru Clearance: 106" (2,692 mm)
I - Floor to Top Switch: 141" (3,581 mm)
J - Arm Reach: 32.25" (819 mm) - 52.5" (1,334 mm)
Max. Load per Arm: 2,500 lbs. (1,134 kg)
Time to Full Rise: 45 seconds
Noise: 45 dB
Motor: 220 VAC / 60 Hz / 1 Ph
Shipping Weight: 1,674 lbs. (759.3 kgs)
Shipping Dimensions: 152" x 23" x 35" (3,860 mm x 597 mm x 889 mm)

In the Box

Guides & Accessories

Consumables

  • 59422 - Dannmar 2 Post TruckVan Adapter Pin Set of 4 5215752
  • 59407 - Dannmar Air Electric Work Station WSA 100 5210438
  • 59423 - Dannmar 2 Post Frame Cradle Pad Pin Set of 4 5215754
