Item # 12506 BRAND: DeVilbiss

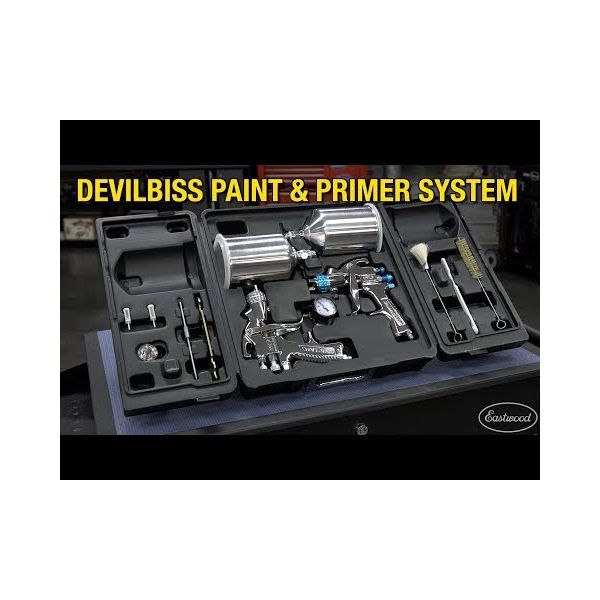

DeVilbiss Auto Paint and Priming Starting Line System 802343

Includes 2 HVLP spray guns—
1 for priming, 1 for top-coating
Includes 2 HVLP spray guns—
1 for priming, 1 for top-coating
DeVilbiss Auto Paint and Priming Starting Line System 802343 is rated 4.6 out of 5 by 57.
  • y_2023, m_9, d_23, h_3
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.35
  • cp_3, bvpage2n
  • co_hasreviews, tv_10, tr_47
  • loc_en_US, sid_12506, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getAggregateRating, 80.3ms
  • REVIEWS, PRODUCT
$207.99
Loading...
Loading...
Save for Later
Includes 2 HVLP spray guns—
1 for priming, 1 for top-coating

1 year Warranty Included

100% Satisfaction Guarantee Since 1978
We stand behind our solutions and customers.

  • • 90 Day Returns
  • • Lifetime Tech Support
DeVilbiss Auto Paint and Priming Starting Line System 802343
main product photo
Frequently Bought Together

Price for all checked items:

Product Overview:

Description

All-in-one DeVilbiss® Auto Paint and Priming System includes 2 HVLP auto spray guns—one for priming and one for top-coating

  • Kit includes two 20-oz. aluminum cups, plus 1.3mm, 1.5mm and 1.8mm tips
  • Also includes air regulator and a complete set of brushes and wrenches for easy disassembly and clean-up
  • Requires 13 cfm at 30psi

This DeVilbiss HVLP 2-Gun Set is a great value from a brand name you know and trust. Complete, self-contained spray gun set includes not only one full-size HVLP spray gun but 2 for spraying primers, colors, clears, and sprayable body fillers.

The StartingLine by DeVilbiss Auto Painting and Priming System is a complete, self-contained gun kit to spray primers, colors, and clears. Includes two full-size DeVilbiss HVLP auto spray guns: one with a 1.3mm tip for color and clear coats, and another with a 1.8mm tip for primers and sprayable body fillers.

In the Box

Contents

Two DeVilbiss HVLP paint guns: one with a 1.3mm tip for color and clear coats, and another with a 1.8mm tip for primers and sprayable body fillers. Also includes a 1.5mm tip, two 20-oz. aluminum cups, air regulator, cleaning brushes and a wrench. Hard plastic molded storage case with handle. 1-yr. manufacturer's warranty.

Guides & Accessories

Safety Information

Always wear a NIOSH-approved respirator, eye protection and skin protection when painting. Consult paint labeling and MSDS for exact safety precautions. Always paint in a ventilated area away from open flames or sparks. Consult local and federal laws when disposing of excess paints, primer clears and solvents. To increase paint gun life, dissemble and clean the gun as soon as you are done painting.

Accessories

Save clean-up time while making it easier to use your DeVilbiss spray guns at any angle when you use 29953 34-oz. DeKups® Disposable-Cup Starter Kit.

Reviews

Rated 4 out of 5 by from Repaired threads... I too had to repair the threads on one of the guns before I could screw the paint container onto it........
Date published: 2013-05-03
Rated 4 out of 5 by from OK guns If you buy these guns because it comes with a case, dont. you have to break down the gun completly so it fits back in, and after market cleaning brushes wont fit in it either. I use a craftsman cantelever box instead, and I can keep both guns fully assembled with room for all the extra goodys I need, tips, screens, brush's etc. The wrench they suplly doesnt work that well, you wil need extra wrenches. the big gun sprays awsome, the small gun sprays lean, but its prabably my fault. I'm no pro. I recomend buying a better quality single gun with 3 tips, and make your own carry case.
Date published: 2011-12-16
Rated 4 out of 5 by from good value did what its suposed to
Date published: 2011-03-20
Rated 4 out of 5 by from good value only used it for primer so far and it did what it was suposed to. so thats what i wanted
Date published: 2011-03-20
Rated 4 out of 5 by from Good kit Very nice kit to start panels with. The HVLP guns are very nice to use and lay down the liquids very well. Two issues: the 1.8mm tip is REALLY big and throws a lot of primer out. Better to switch to the 1.5mm tip and get better coverage. Second, the inlet to screw your air chuck in to is very soft. The same part on both guns stripped out on the first use. Be very gentle when tightening these down or have a few extra pieces handy. Overall a very good kit for the money.
Date published: 2010-05-08
Rated 4 out of 5 by from Great low end guns and equipment This is a good hobbiest setup and will work great for the paint jobs being done once or twice a year.
Date published: 2010-01-26
Rated 3 out of 5 by from Fair to partly cloudy purchase! I don't regret the purchase, BUT, out of a two gun set, the primer gun leaks like a sieve. The top coat gun works well and lays down paint smooth, when you get the air pressure just right. The primer gun does a fair job on applying primer, but leaks from the packing nut the needle passes through, no matter how tight you put it. I guess getting 50 percent of what you pay for is the "new norm" for non-American made products. Remember, it's the person using the paint gun that produces the best finish.
Date published: 2021-07-30
Rated 2 out of 5 by from Lids don’t fit at all The lids do not fit the cups I had to buy another cup
Date published: 2021-08-07
Rated 1 out of 5 by from Looks nice... Lids don't fit cups. Still waiting on new lids, as this was a know problem that hadn't been recalled.
Date published: 2021-09-19
  • y_2023, m_9, d_23, h_3
  • bvseo_bulk, prod_bvrr, vn_bulk_3.0.35
  • cp_3, bvpage2n
  • co_hasreviews, tv_10, tr_47
  • loc_en_US, sid_12506, prod, sort_[SortEntry(order=RATING, direction=DESCENDING), SortEntry(order=SUBMISSION_TIME, direction=DESCENDING)]
  • clientName_eastwood
  • bvseo_sdk, p_sdk, 3.2.1
  • CLOUD, getReviews, 3.85ms
  • REVIEWS, PRODUCT

Questions & Answers

Can you tell me what dekups adapter to use with these guns

Asked by: Scissorman
These guns take the dpc-81 for the dekups system.
Answered by: SWhitehurst
Date published: 2022-10-30

Can i get this with plastic cups?

Asked by: Derail
There is not an option for plastic cups with this kit unless you purchase the dekups kit.
Answered by: S Church
Date published: 2017-04-01

DO YOU HAVE A PLASTIC CUP TO FIT THIS GUN? MY METAL CUPS CROSS THREAD AND LOCK UP AND ARE NOW COMPLETELY LOCKED UP TO THE POINT I CANNOT SCREW THE LID OFF.

Asked by: WYOMINGMAN
We do carry the Dekups disposable cup option for this gun:http://www.eastwood.com/dekups-34-oz-pro-starter-kit.html. It makes clean up a lot easier and faster!
Answered by: KHoffnagle
Date published: 2017-09-22

What DeKups system do I need for these guns?

Asked by: Bagarre
You will need DPC 81 adapter. Part number 12544
Answered by: S Church
Date published: 2017-05-10

It is safe to use with solvent and waterborne paint?

Asked by: Jim_shady
You can use both solvent & waterborne paints in these units..
Answered by: KHoffnagle
Date published: 2017-06-04

What are the guns made of stainless steel or aluminum nickel plated

Asked by: Jtoole
These are plated aluminum...
Answered by: KHoffnagle
Date published: 2017-06-03

My compressor states it has 15 SCFM @ 90 PSI. Is that sufficient for use with this gun?

Asked by: Lenny B
That should be fine. This product only requires 13 CFM at 30 PSI.
Answered by: JimH
Date published: 2016-06-30

Can I purchase a 2.0 tip

Asked by: pump jock
Any additional tips would need to be purchased through devilibiss
Answered by: SeanA
Date published: 2017-01-27

DIY vehicle prime & paint at home - my compressor (nothing special): Husky, oil free, 33gal, 1.7hp, scfm@40=6.1, scfm@90=5.1 - will the DeVilbiss StartingLine Auto Paint Gun and Priming System work for me?

Asked by: Nick Ricky
That compressor will not supply enough air for this paint gun. The Starting line gun requires 13 CFM at 30 psi. I'd suggest using our Eastwood Concours paint gun, which only requires 4 CFM (within your compressor's capabilities). http://www.eastwood.com/ew-concours-paint-gun-w-3-tips-plasticandmetal-cup.html
Answered by: NickC
Date published: 2018-03-18

Is this set waterborne compatible?

Asked by: Alero93
Yes, you can use waterborne paints with nearly any modern paint gun.
Answered by: MikeL
Date published: 2017-09-22

Is the blue gun primer or base coat gun?

Asked by: eyreme518
One of the guns will have the 1.3 and the other with a 1.8 technically the tips are interchangeable and can be swapped to your liking of which gun you would want to be dedicated to paint or primer.
Answered by: SeanA
Date published: 2019-01-18

Are the guns the same or is there a difference between the two?

Asked by: Shelby17
The guns are the same, just with color coded control knobs on one to make it easier to identify for whatever use you choose - primer, base, or clear.
Answered by: MikeL
Date published: 2020-01-31

How can i tell the size of tips ,  is there a #  on them?

Asked by: Snake Sonny
The tips are listed as a 1.3, 1.5, and 1.8 included It should be indicated on the tip themselves.
Answered by: SeanA
Date published: 2019-01-18
